Air Register: Service and Repair

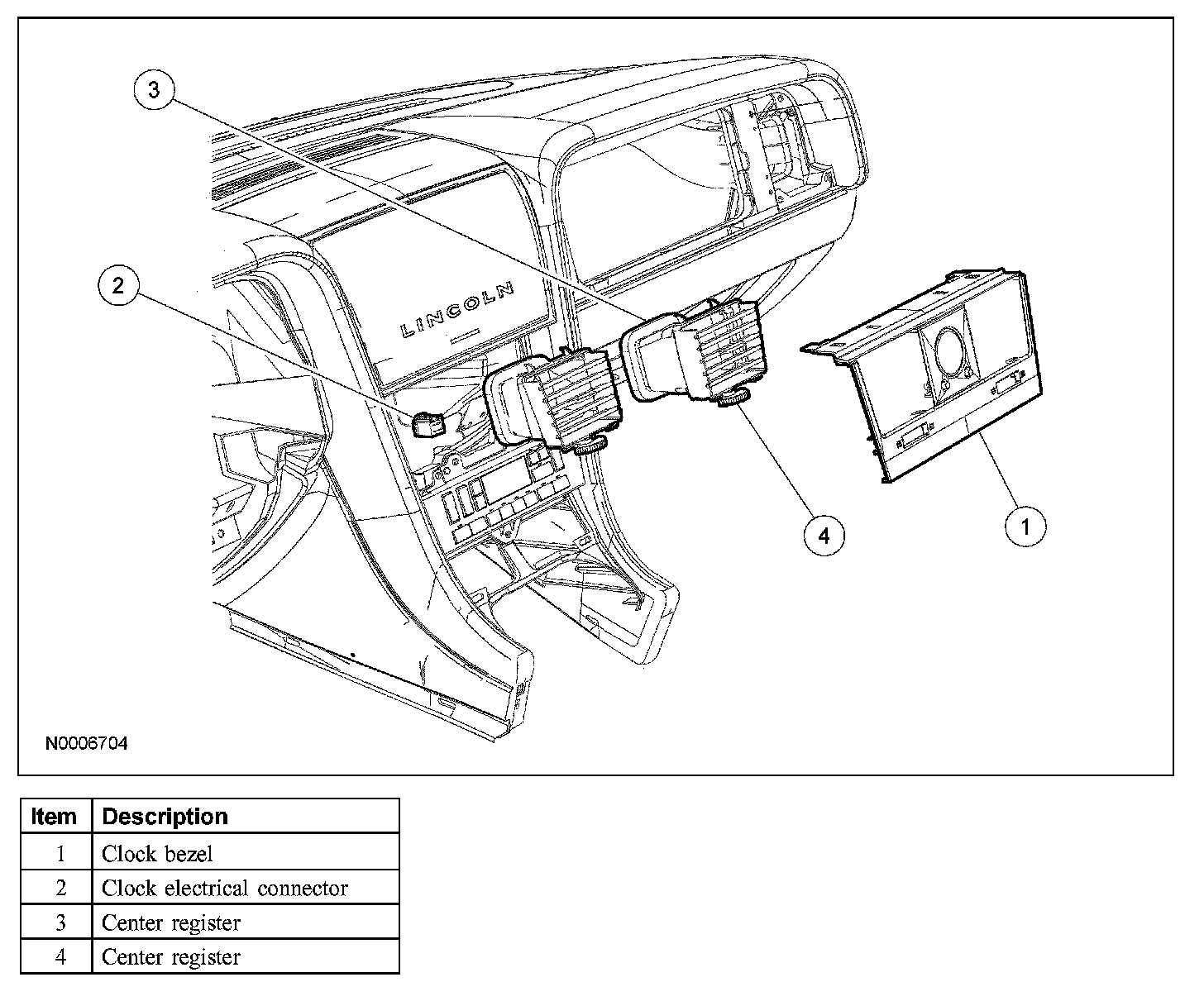

CENTER REGISTERS







Removal and Installation
1. Remove the instrument panel center cover.
2. Remove the clock bezel.
3. Disconnect the electrical connector.
4. Remove the center registers.
5. To install, reverse the removal procedure.

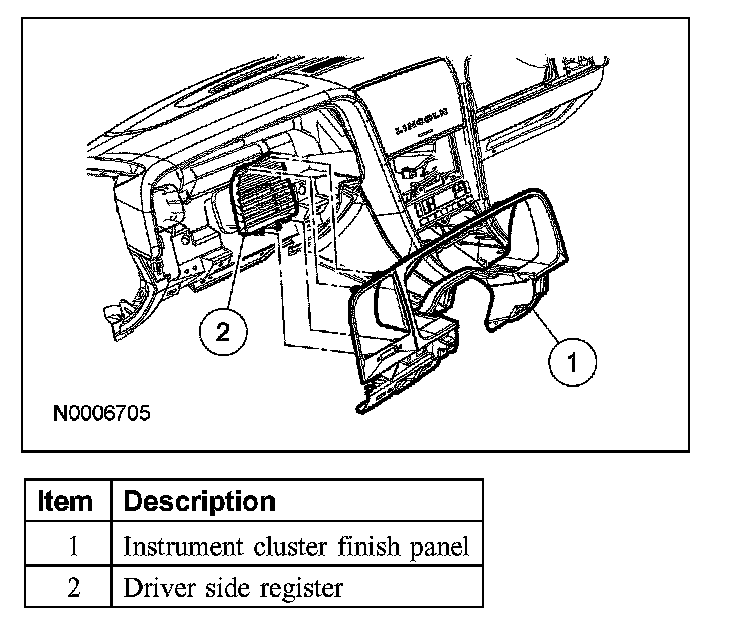

DRIVER SIDE REGISTER







Removal and Installation
1. Remove the instrument cluster finish panel.
2. Remove the driver side register.
3. To install, reverse the removal procedure.

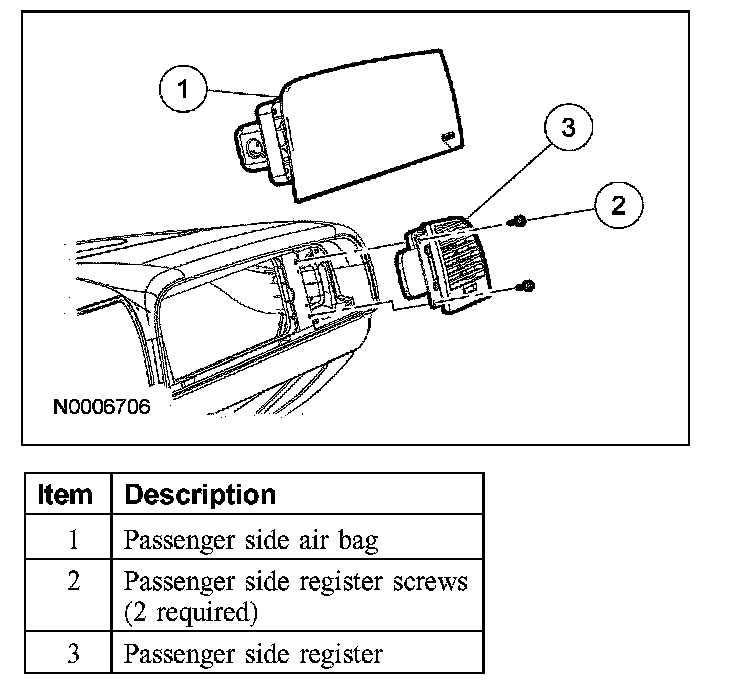

PASSENGER SIDE REGISTER







Removal and Installation
1. Remove the passenger side air bag.
2. Remove the 2 passenger side register screws.
3. Remove the passenger side register.
4. To install, reverse the removal procedure.
