Lincoln Truck
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>

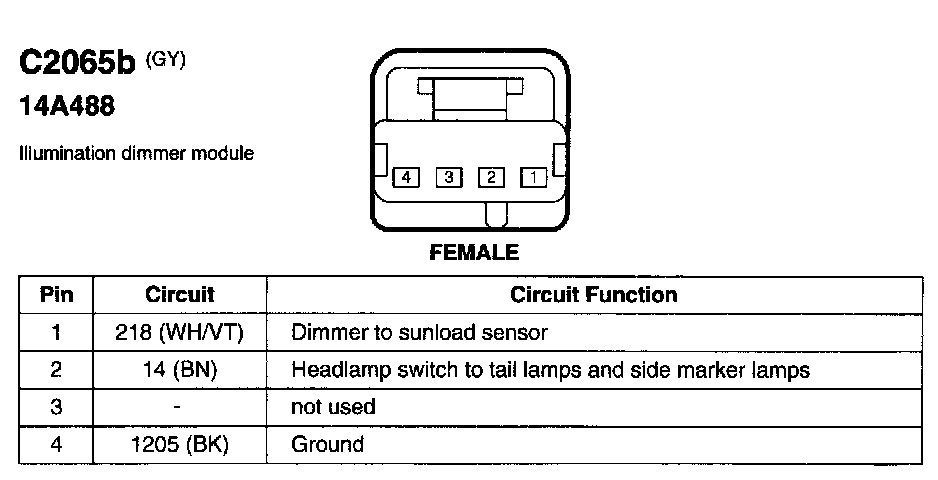

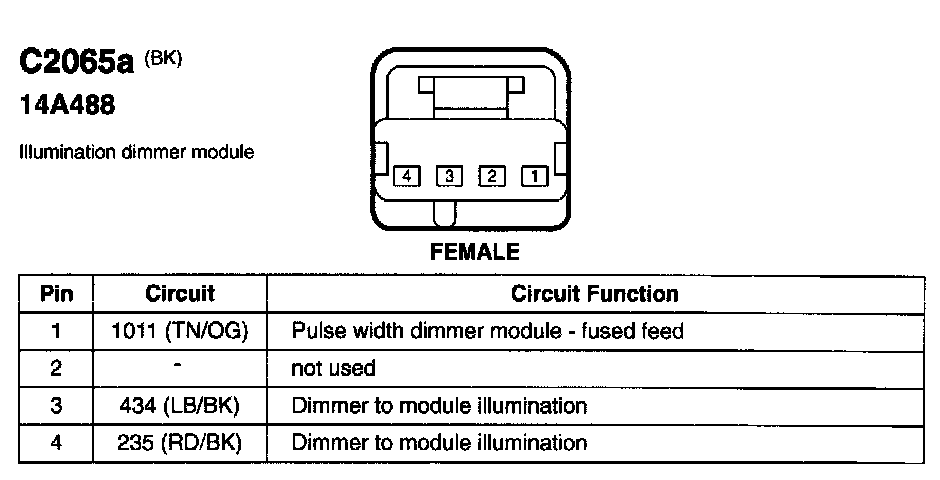

Panel Illumination Control Module
Panel Illumination Control Module
