Brake Disc Shield

Brake Disc Shield

Removal
1. Remove the brake disc.

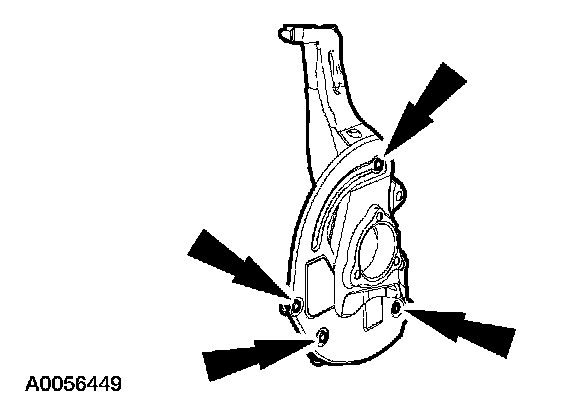

2. Remove and discard the 4 brake disc shield bolts.
3. Remove the brake disc shield.

Installation





1. Drill four 6.35 mm (0.25 inch) holes into the wheel knuckle.
2. Position the shield on to the wheel knuckle.
3. Secure the brake disc shield to the wheel knuckle with four 6.35 mm (0.25 inch) rivets W701950-S100.
4. install the brake disc.
