Anti-Lock Brake System (ABS) Calibration List

Anti-Lock Brake System (ABS) Calibration List

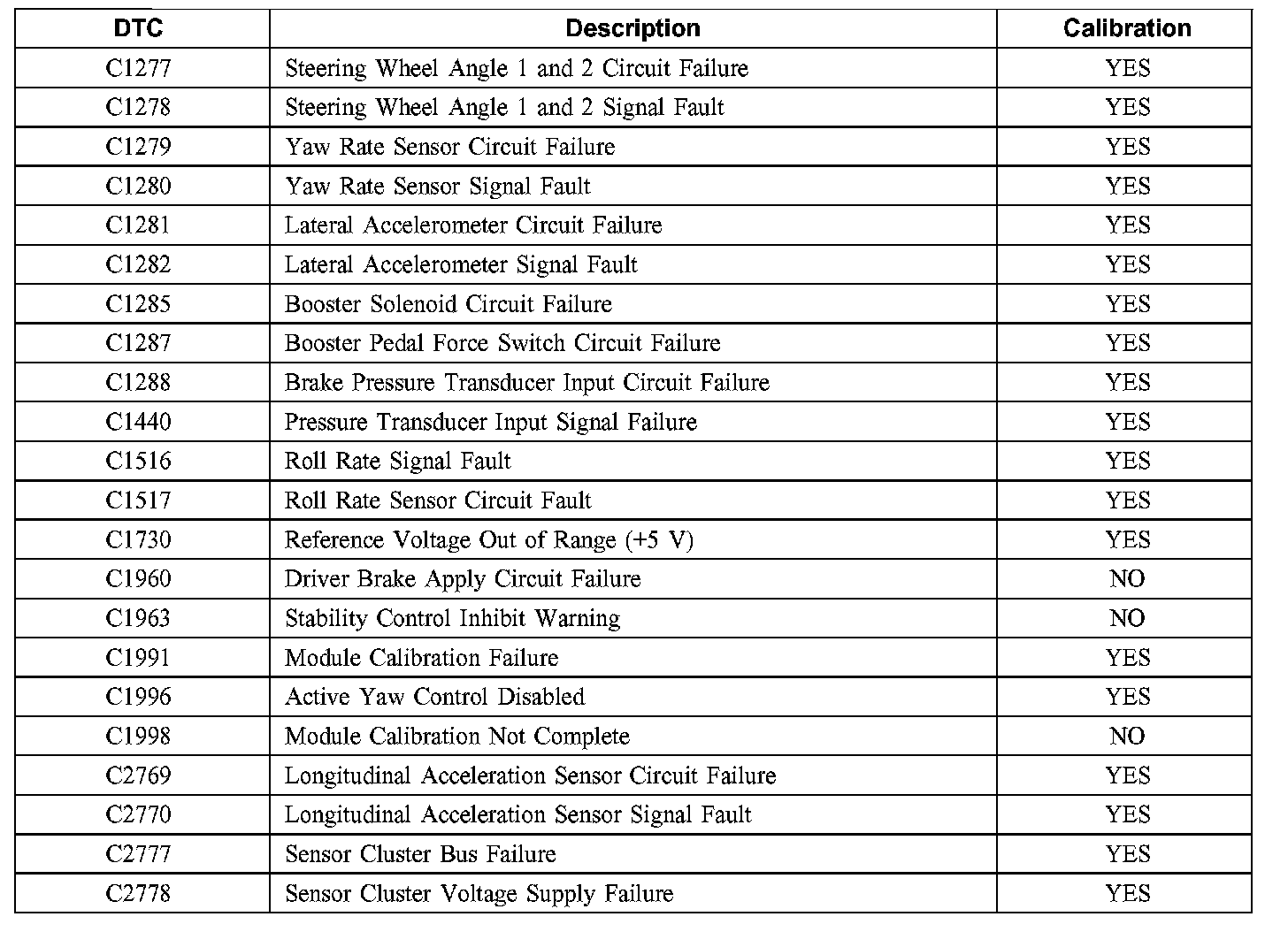

C1277-C2778:

NOTE: The need to calibrate the ABS module is indicated by the stability assist active/fail lamp flashing. The lamp flashes after the DTCs on the calibration list are cleared.
