Lateral Accelerometer: Service and Repair

Accelerometer





Removal and Installation

NOTE: When installing a new accelerometer, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the diagnostic tool directions for the calibration procedures. For module configuration, refer to information Bus.

1. Remove the floor console.
2. Remove the heater duct.

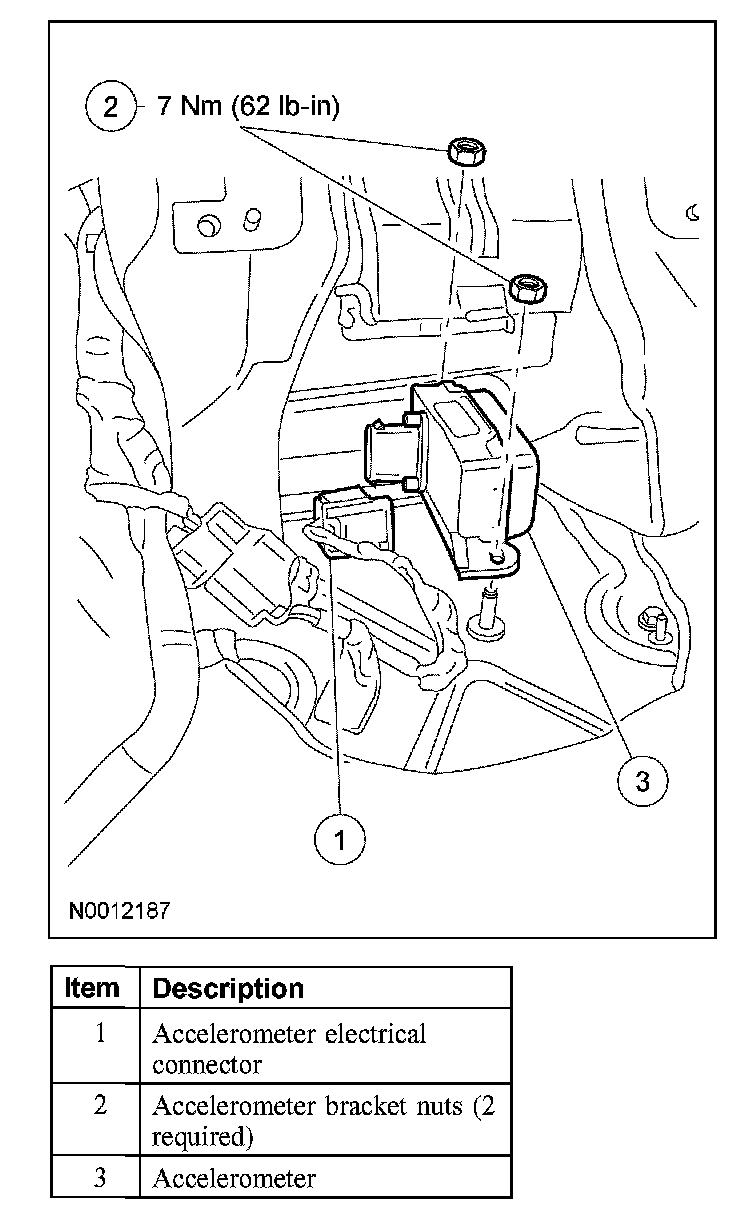

3. Disconnect the accelerometer electrical connector.
4. Remove the accelerometer electrical harness retainer and position aside.
5. Remove the 2 accelerometer nuts and the accelerometer.
^ To install, tighten to 7 Nm (62 inch lbs.).
6. To install, reverse the removal procedure.
