Braking Sensor/Switch: Locations

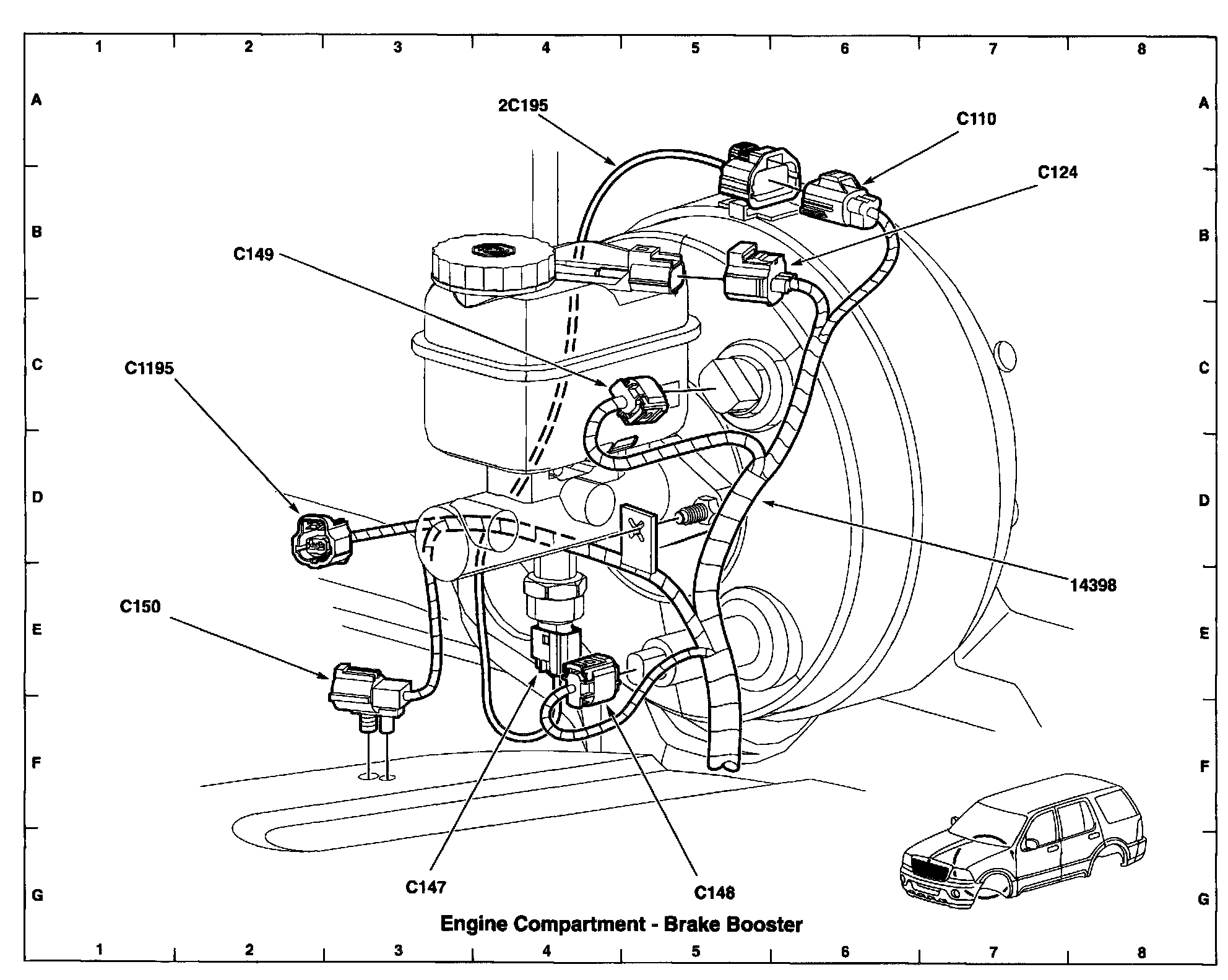

View 151-3 (Engine Compartment-Brake Booster):

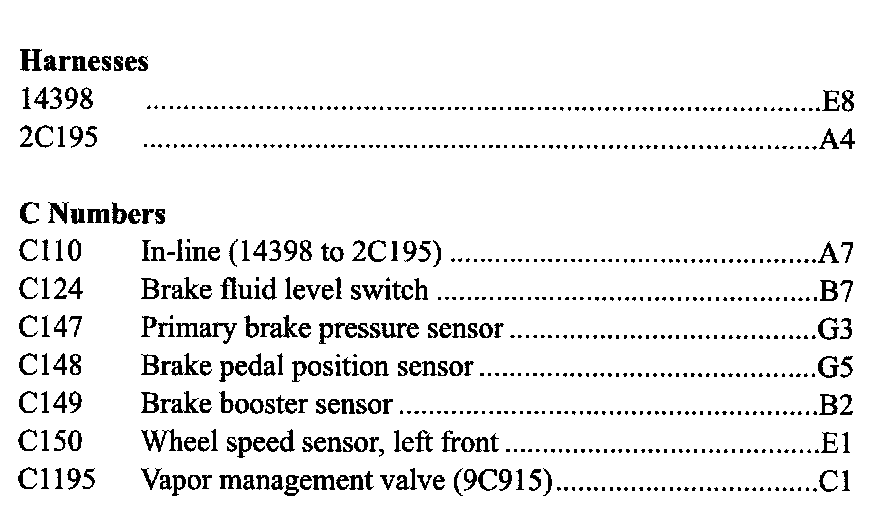

View 151-3 (Engine Compartment-Brake Booster - Legend):
