Passenger Climate Controlled Seat Module (CCSM) C3036a

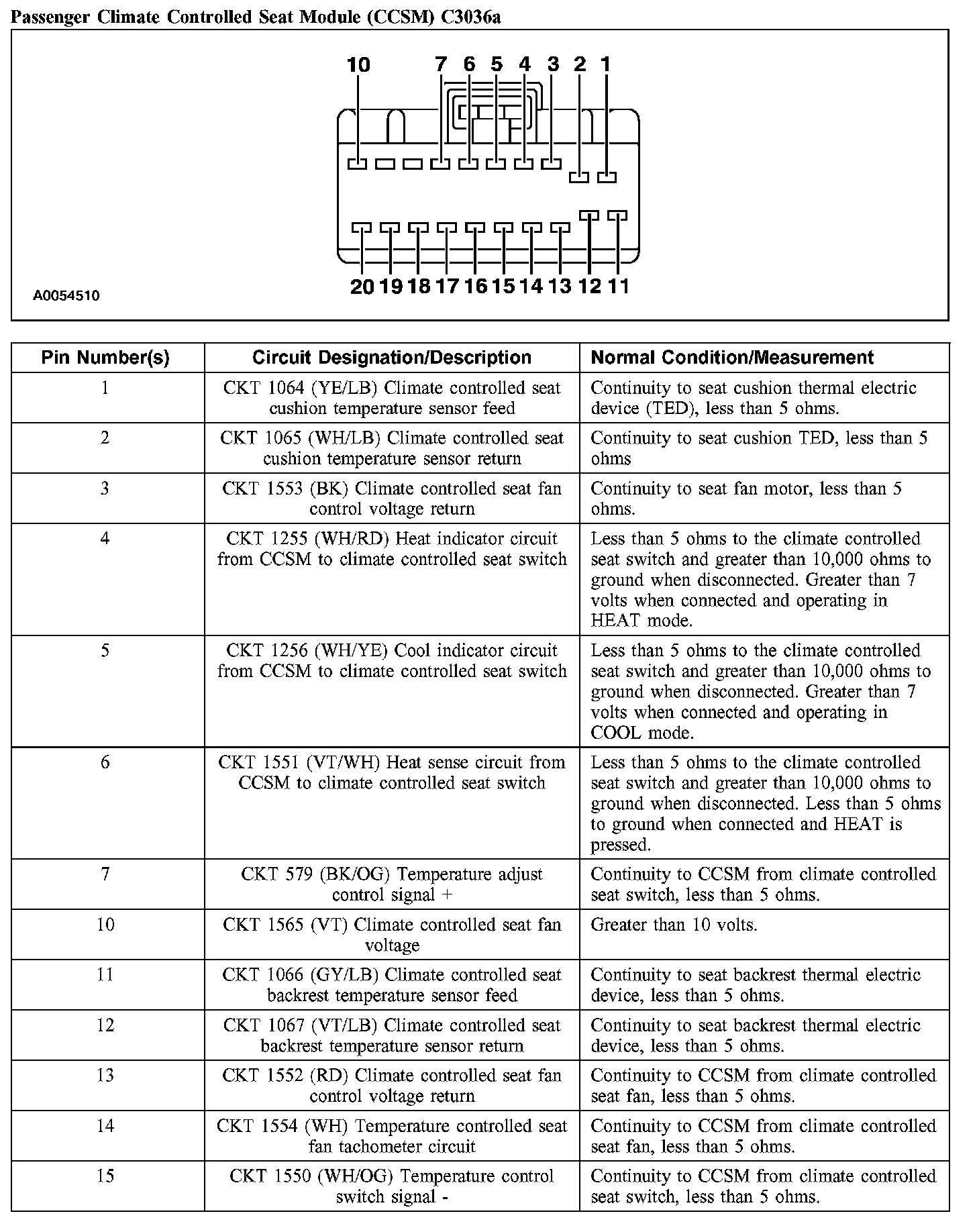

Passenger Climate Controlled Seat Module (CCSM) C3036a (Part 1):



Passenger Climate Controlled Seat Module (CCSM) C3036a (Part 2):
