Driver Climate Controlled Seat Module (CCSM) C3031a

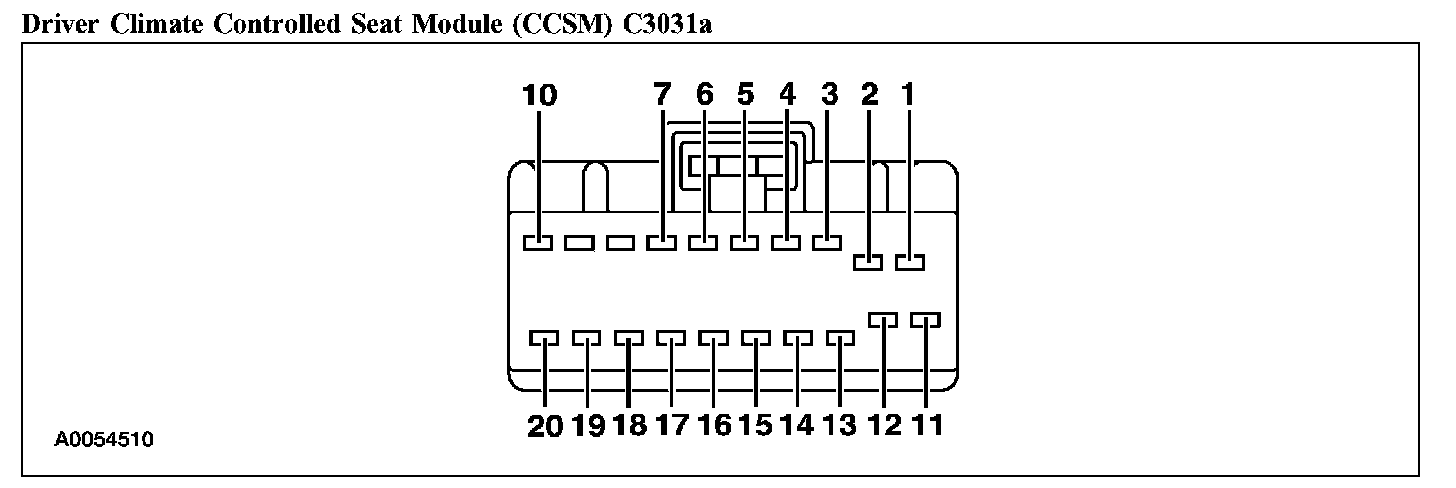

Driver Climate Controlled Seat Module (CCSM) C3031a

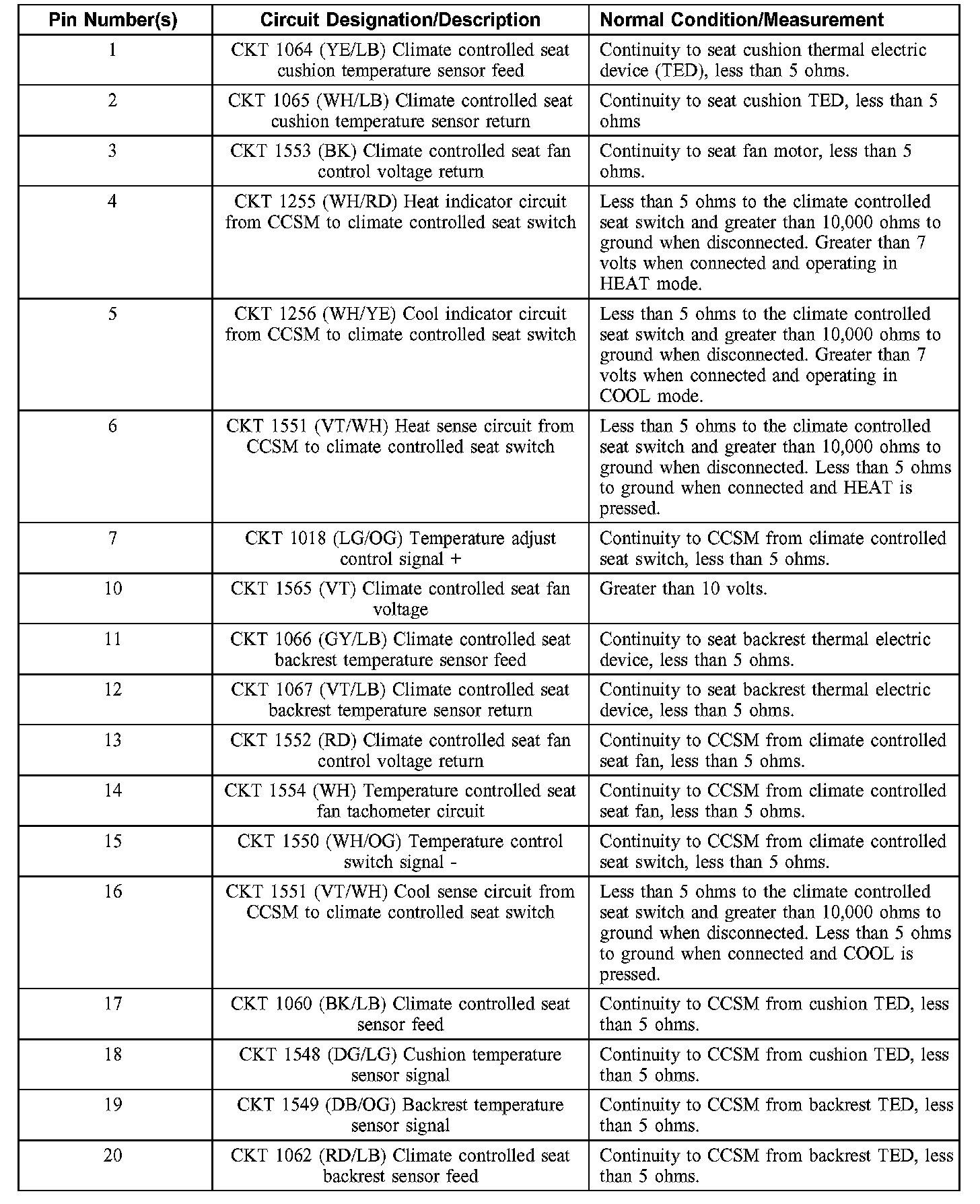

Driver Climate Controlled Seat Module (CCSM) C3031a (Part 1):
Driver Climate Controlled Seat Module (CCSM) C3031a (Part 2):
