Seat - Exploded View, Third Row

SEAT - EXPLODED VIEW, THIRD ROW

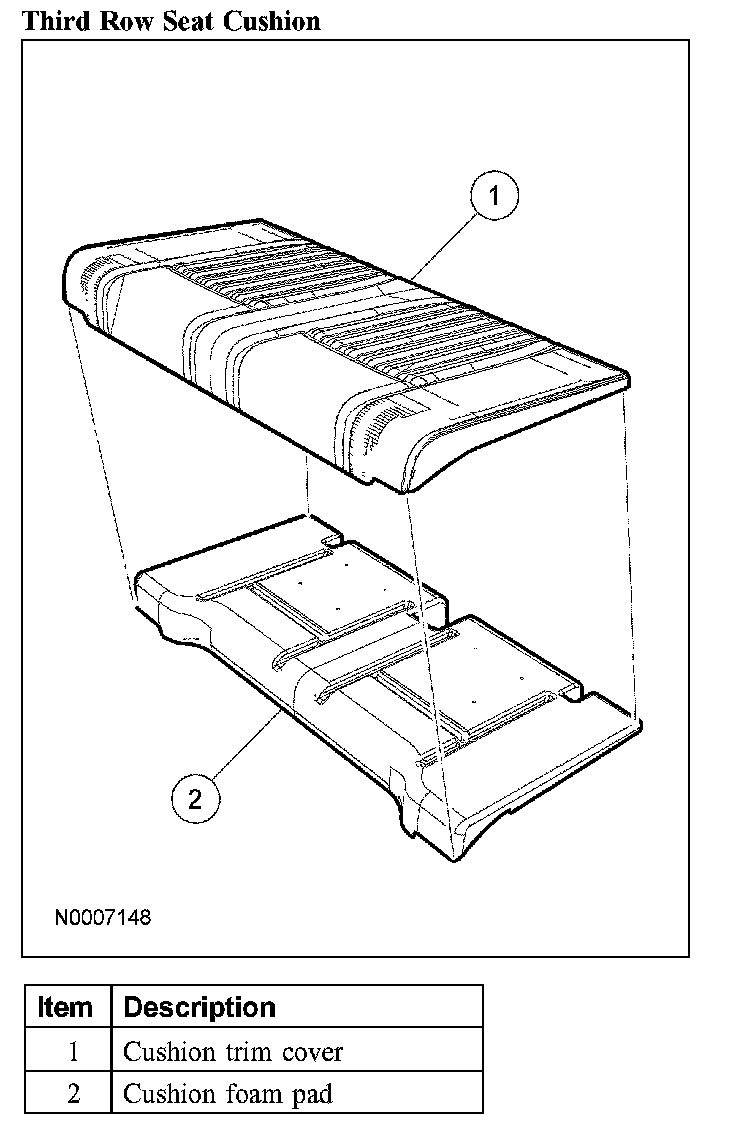

Third Row Seat Cushion:

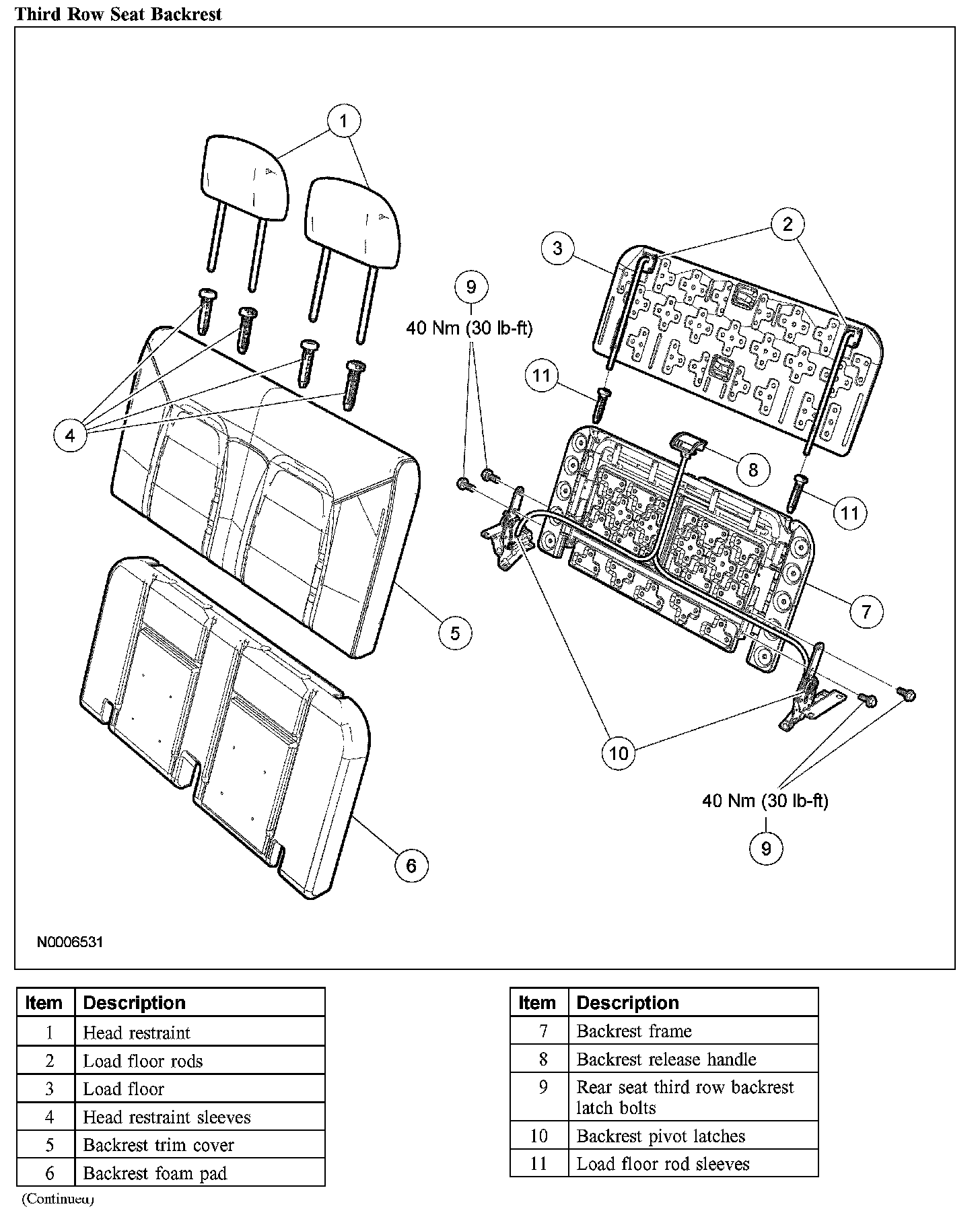

Third Row Seat Backrest:






Removal and Installation
1. For additional information, refer to the procedures.
