Seat - Exploded View, 40 Percent, Second Row

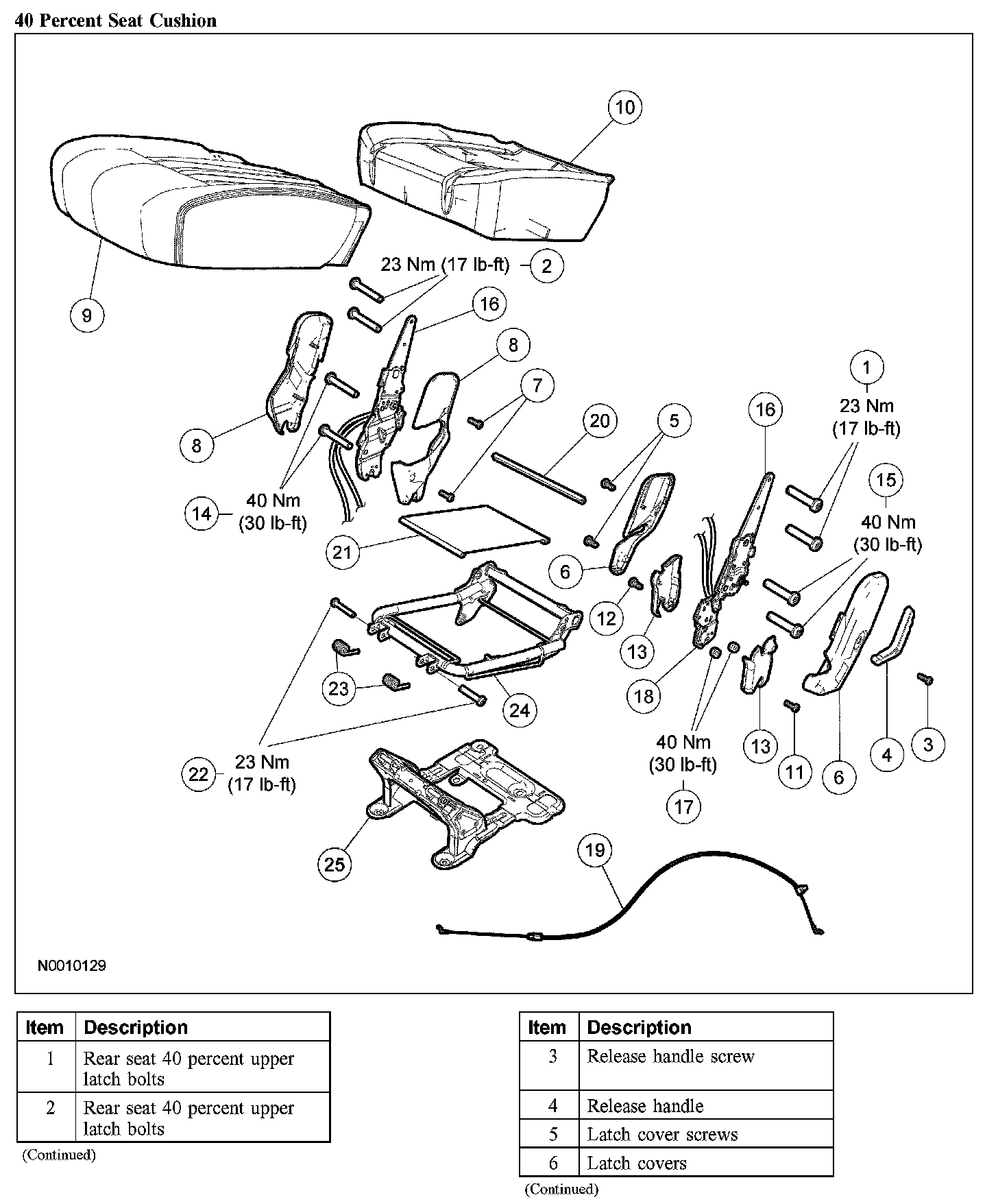

SEAT - EXPLODED VIEW, 40 PERCENT, SECOND ROW40 Percent Seat Cushion (Part 1):

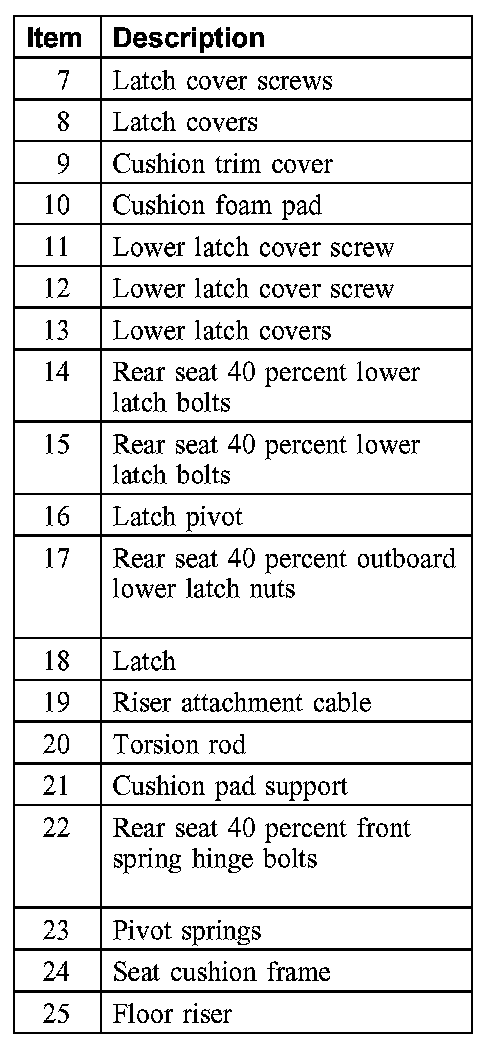

40 Percent Seat Cushion (Part 2):

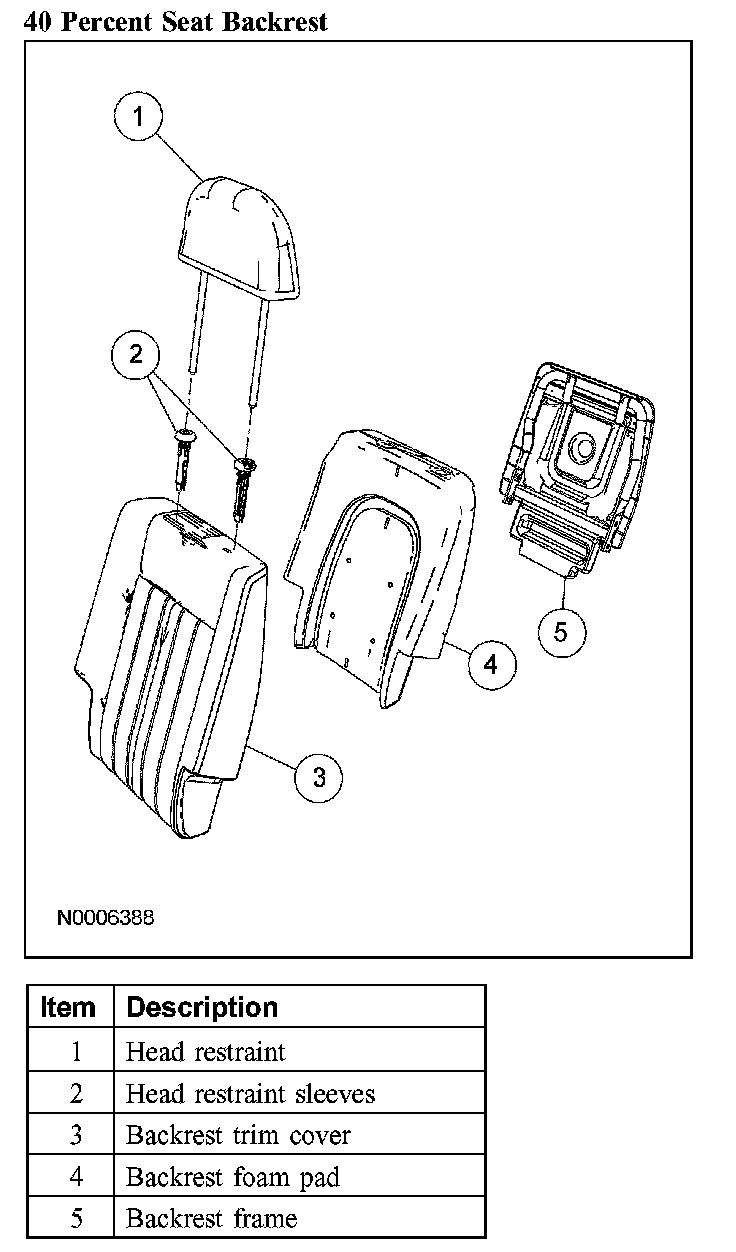

40 Percent Seat Backrest:
Removal and Installation
1. For additional information, refer to the procedures.
