Front Seat Backrest

FRONT SEAT BACKREST

Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Driver seat shown, passenger seat similar.

All seats
1. Position the seat to allow access to the four mounting bolts.
2. Depower the SRS.
3. Remove the front seat.
4. Remove the seat recliner handle.
5. Remove the front and rear side shield screws.
6. Release the remaining retainers and detach the side shield.

Climate controlled seats







7. NOTE:
- Note the routing of the wire harness for installation.
- Detach the backrest trim cover attachment to the backrest air supply duct.

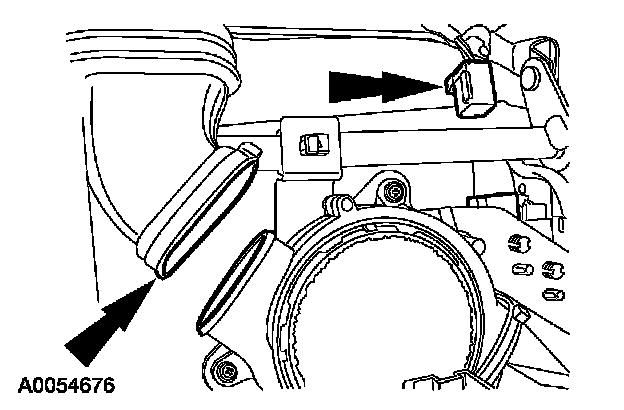

Disconnect the backrest thermo-electric device (TED) electrical connector and the air supply duct from the fan motor. Remove the duct and the electrical wire harness from the seat cushion cover.

All seats

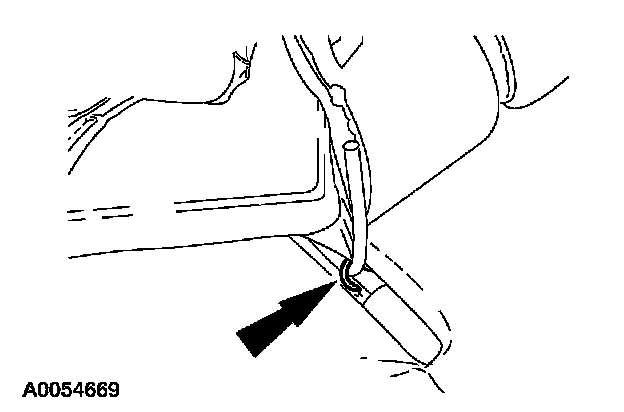

8. Remove the hog rings and the seat cushion trim cover and foam pad from the seat track and frame assembly.







9. NOTE: The recliner roll pins must not be reused. New roll pins that are included in the seat fastener service kit must be used.

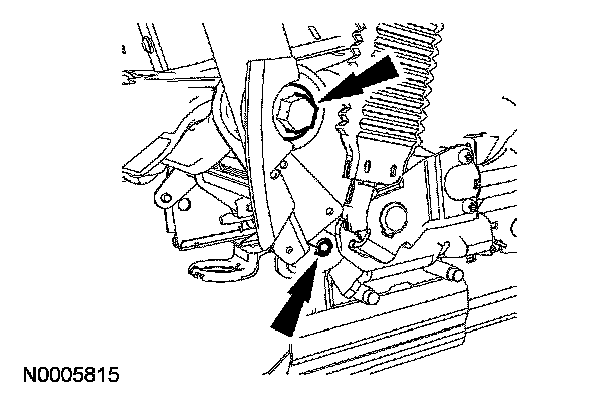

Drive out the 2 recliner roll pins (1 shown) at the backrest frame and discard them. Remove the 2 backrest to cushion pan pivot bolts (1 shown) and remove the backrest assembly.
- To install, tighten to 23 Nm (17 lb-ft).

10. To install, reverse the removal procedure.
11. Install the front seat.
12. Repower the SRS.
