Front Seat

FRONT SEAT







Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Position the seat to allow access to the four mounting bolts.
2. Depower the SRS.

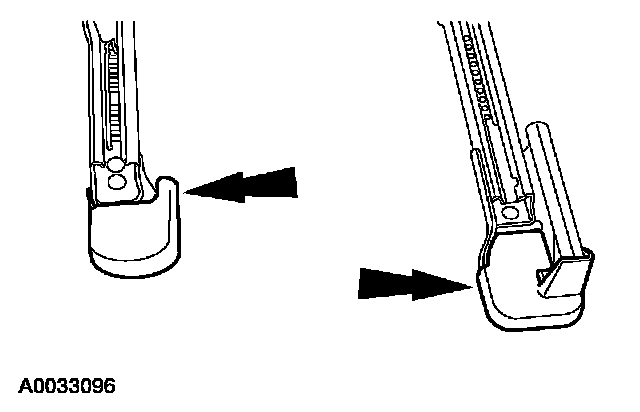

3. Remove the front seat track front cover.
4. Remove the 2 front seat track-to-floor front bolts.
- To install, tighten to 40 Nm (30 lb-ft).







5. Remove the 2 front seat rear track bolt covers.
6. Remove the 2 front seat track-to-floor rear bolts.
- To install, tighten to 40 Nm (30 lb-ft).

7. NOTE: Some component connectors may not exist due to vehicle options.

Tilt the seat forward, disconnect the electrical connectors and remove the seat.

8. NOTE: Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.

To install, reverse the removal procedure.

9. Repower the SRS.
10. Check the active restraint system for correct operation.
