Seat Temperature Switch: Service and Repair

CLIMATE CONTROLLED SEAT SWITCH

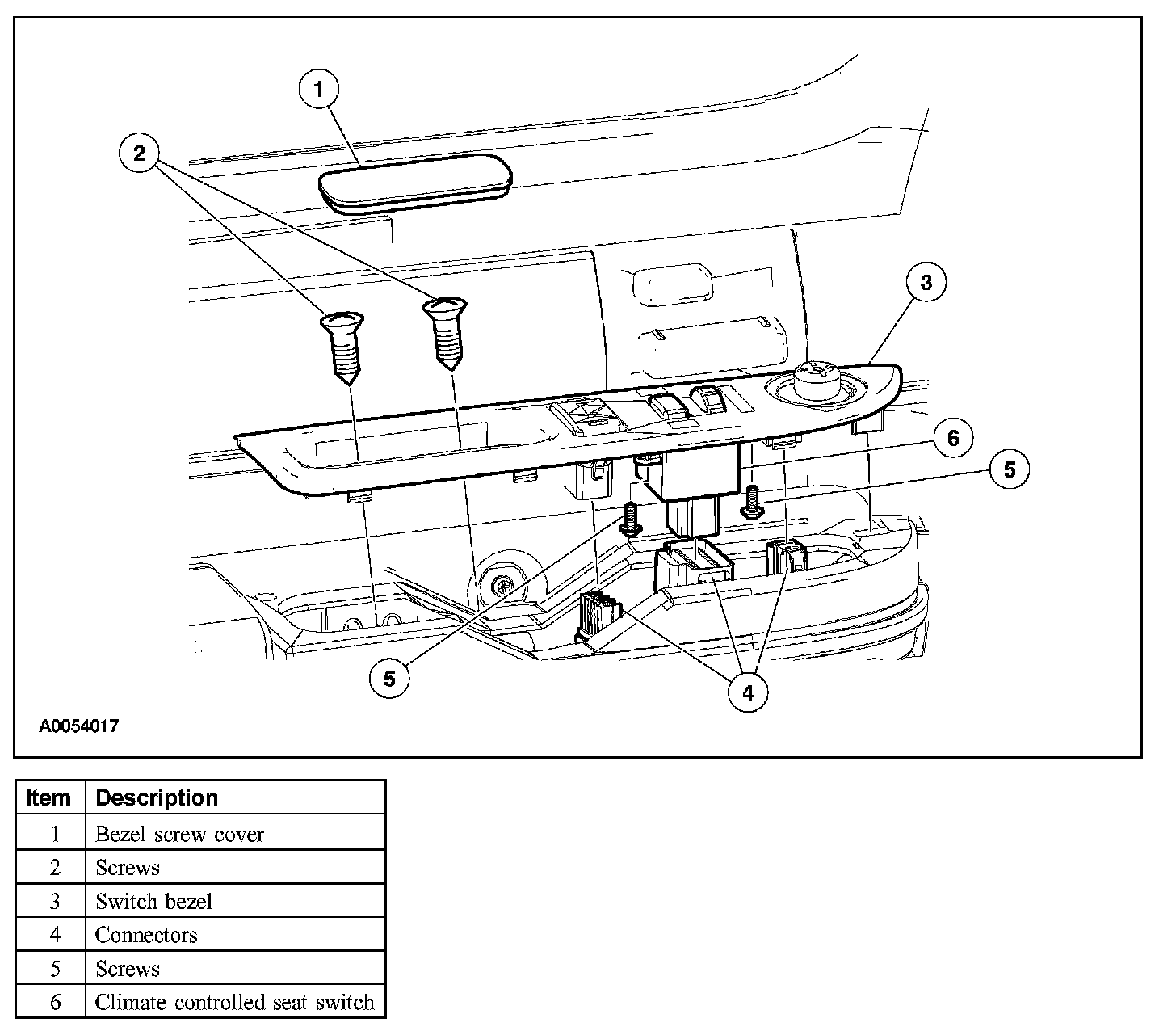

Removal and Installation
1. Remove the bezel screw cover.
2. Remove the 2 switch bezel screws.
3. Remove the switch bezel.
- Detach the bezel and disconnect the electrical connectors.

4. Remove the 2 screws and the climate controlled seat switch from the switch bezel.
5. To install, reverse the removal procedure.
