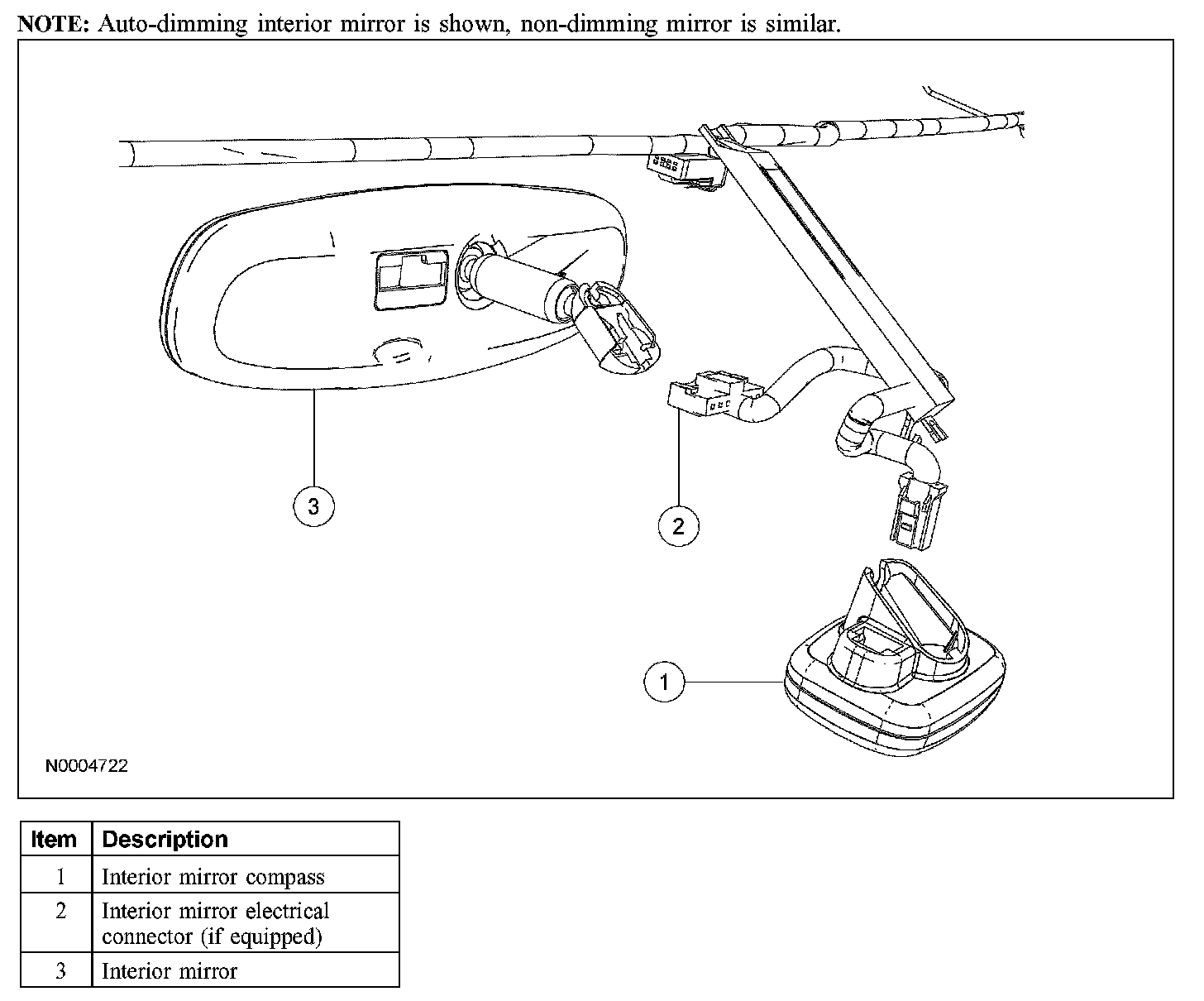

Interior Mirror

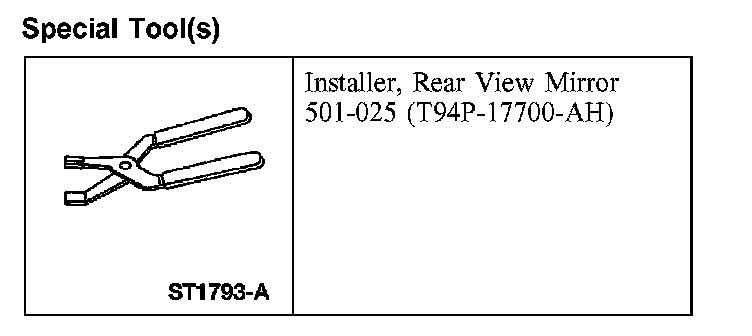

INTERIOR MIRRORInstaller, Rear View Mirror:
Special Tool(s)
Removal
Manual mirror

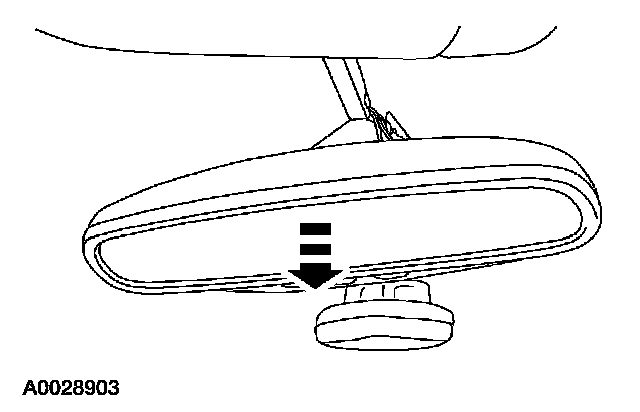

1. Position the interior mirror in the full down position.
2. Grasp the mirror and rotate in a downward direction and toward the windshield until released from the windshield bracket.
Auto-dimming mirror

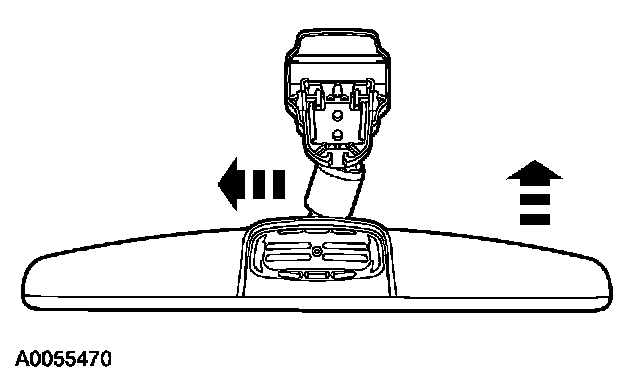

3. Position the interior mirror outboard (toward the driver side) to its full extension.

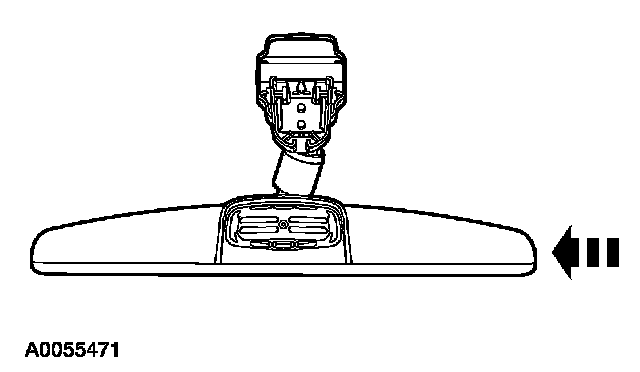

4. Rotate the interior mirror back until it is parallel with the windshield. The mirror is now locked between the 2 adjustment balls and joints.
5. NOTE: It takes approximately 10 pounds of force to remove the mirror from the windshield bracket.
Hold the mirror firmly in one hand and strike the mirror with the palm of an open hand.
Installation
Manual mirror

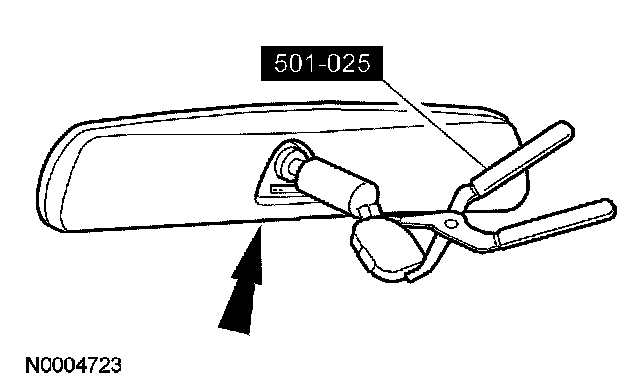

1. Position the interior mirror on the windshield bracket. Using the special tool, press the mirror in place until fully seated.
Auto-dimming mirror
2. Place the mirror on the windshield bracket.

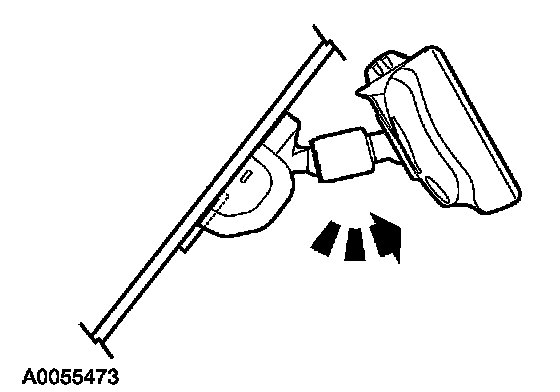

3. Rotate the mirror fully upward.

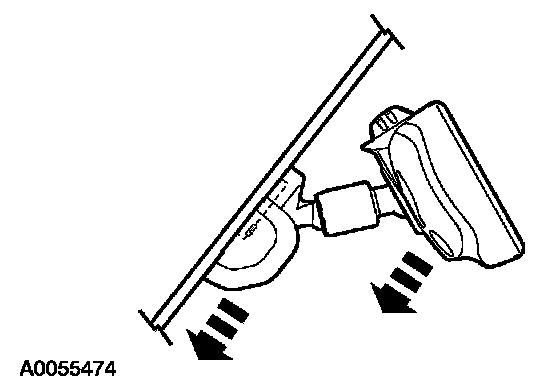

4. Slide the mirror base down on the windshield bracket until an audible click is heard.
