Exterior Mirror Glass

EXTERIOR MIRROR GLASS

Removal
1. Position the exterior mirror glass in the full down position.

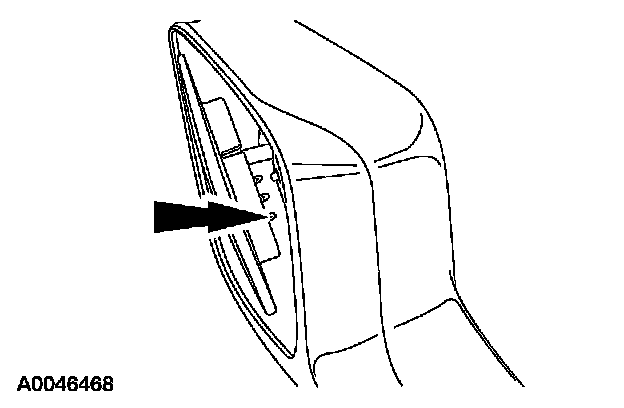

2. Grasp the top of the exterior mirror glass and carefully pull glass away from the housing while using long-nosed pliers to pull back on the tab until the mirror glass releases.
3. If equipped with heated exterior mirrors, disconnect the electrical connectors.

Installation
1. If equipped with heated exterior mirrors, connect the electrical connectors.
2. Position the exterior mirror glass on the mirror motor.
3. Place a hand against the back of the exterior mirror housing and a hand flat against the exterior mirror glass. Press the mirror glass in place until it is fully seated.
