Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH







Removal and Installation

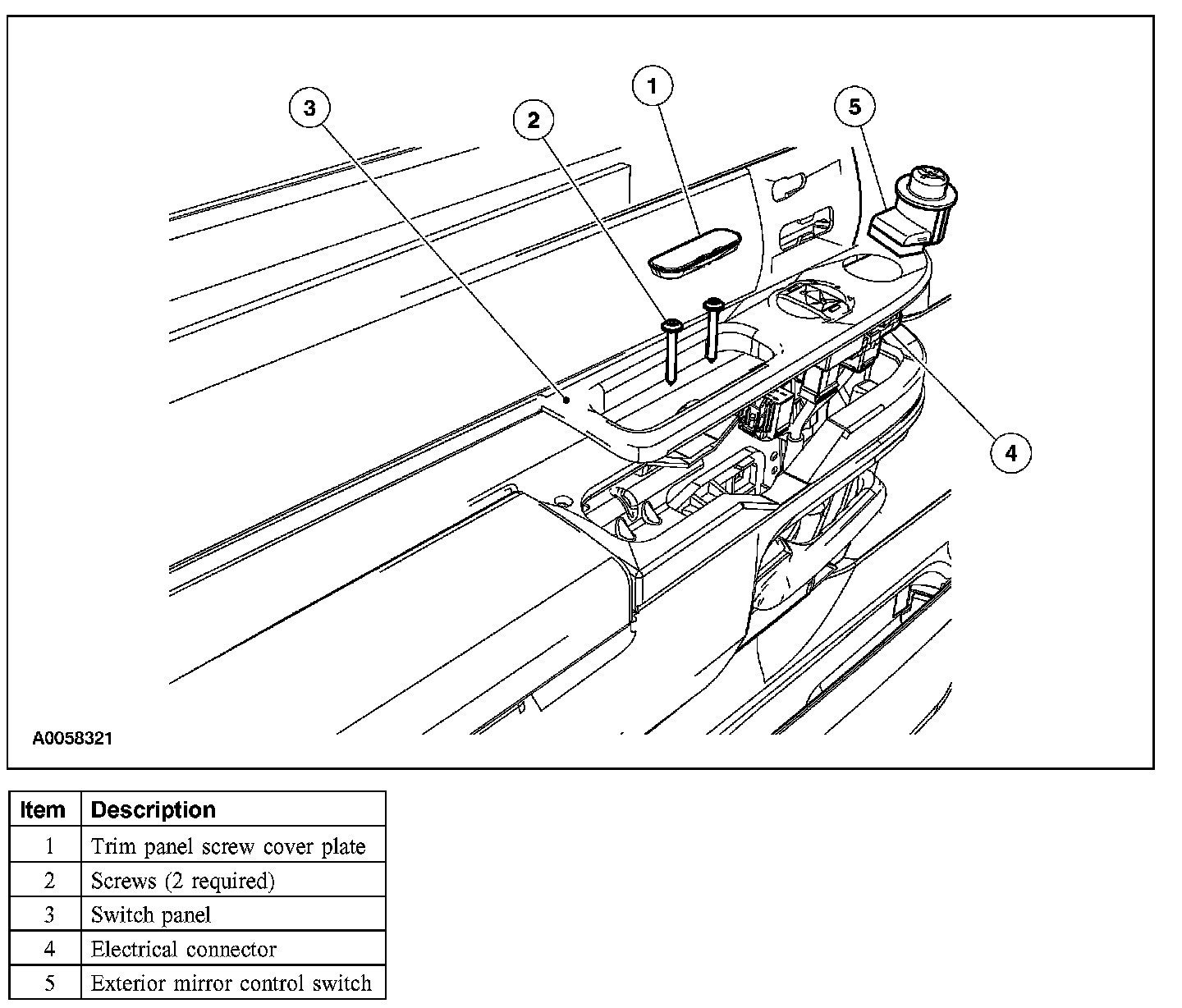

1. Remove the trim panel screw cover plate.
2. Remove the 2 screws.
3. Raise the switch panel to gain access to the electrical connectors, disconnect the electrical connectors and remove the switch panel.
4. Remove the exterior mirror control switch from the switch panel.
5. To install, reverse the removal procedure.
