Test H: The Smart Unlock Does Not Operate Correctly

PINPOINT TEST H: THE SMART UNLOCK DOES NOT OPERATE CORRECTLY

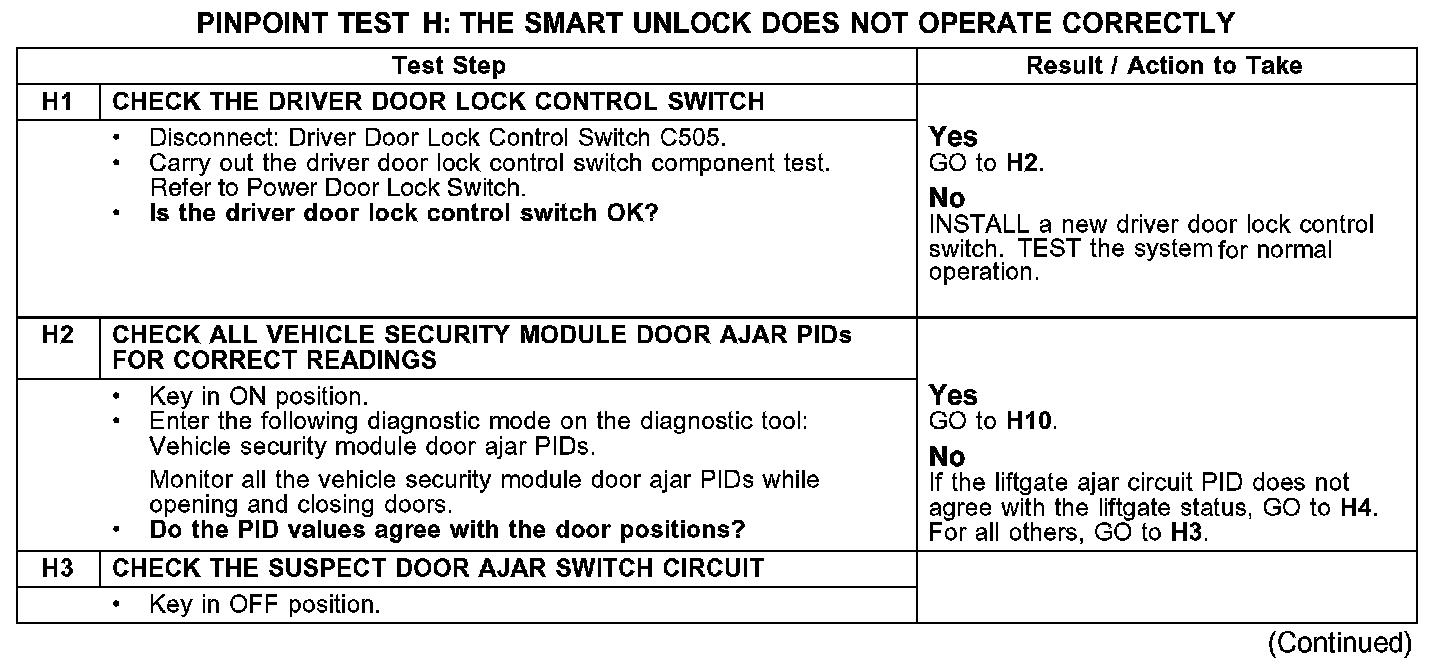

H1-H3:

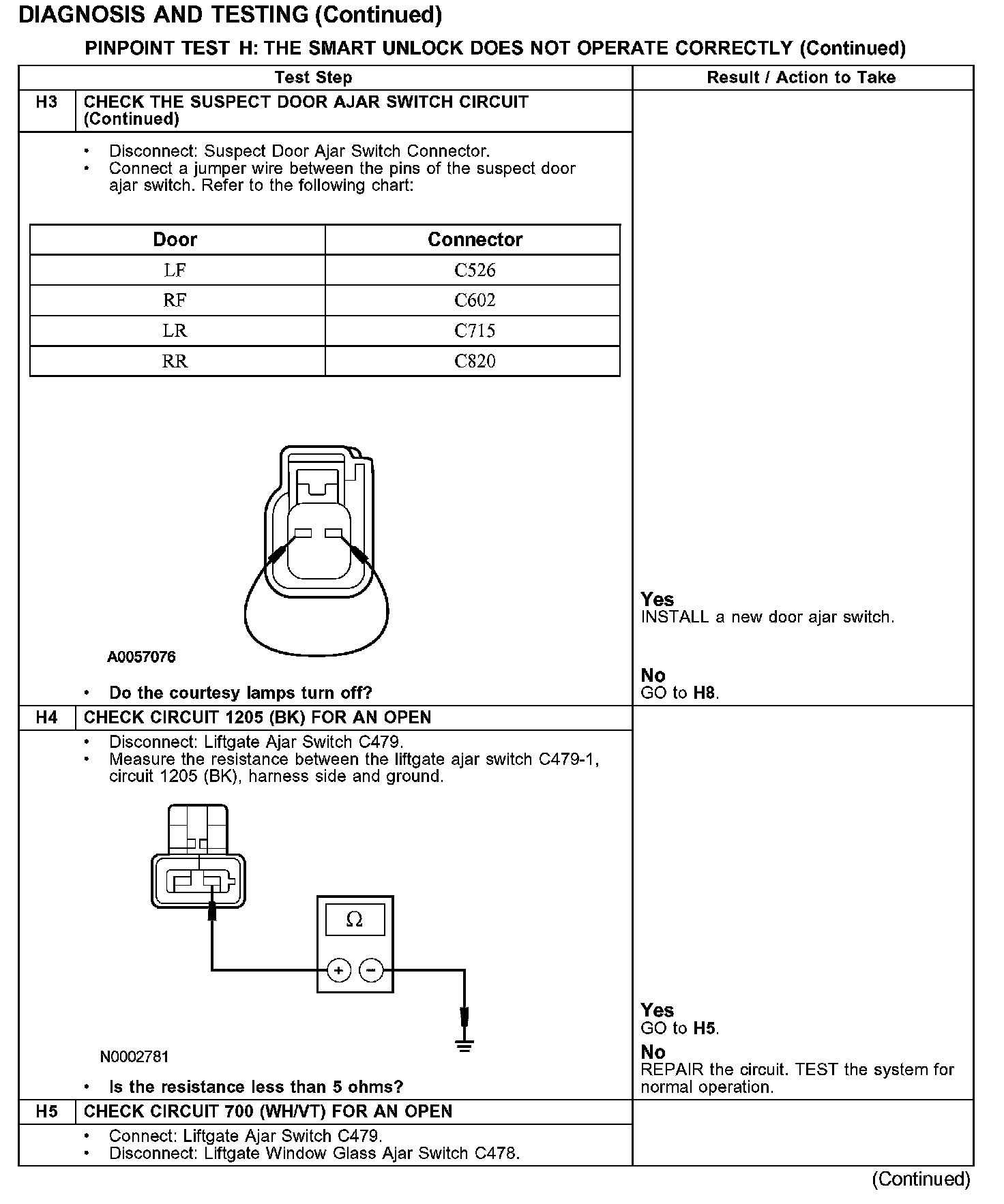

H3-H5:

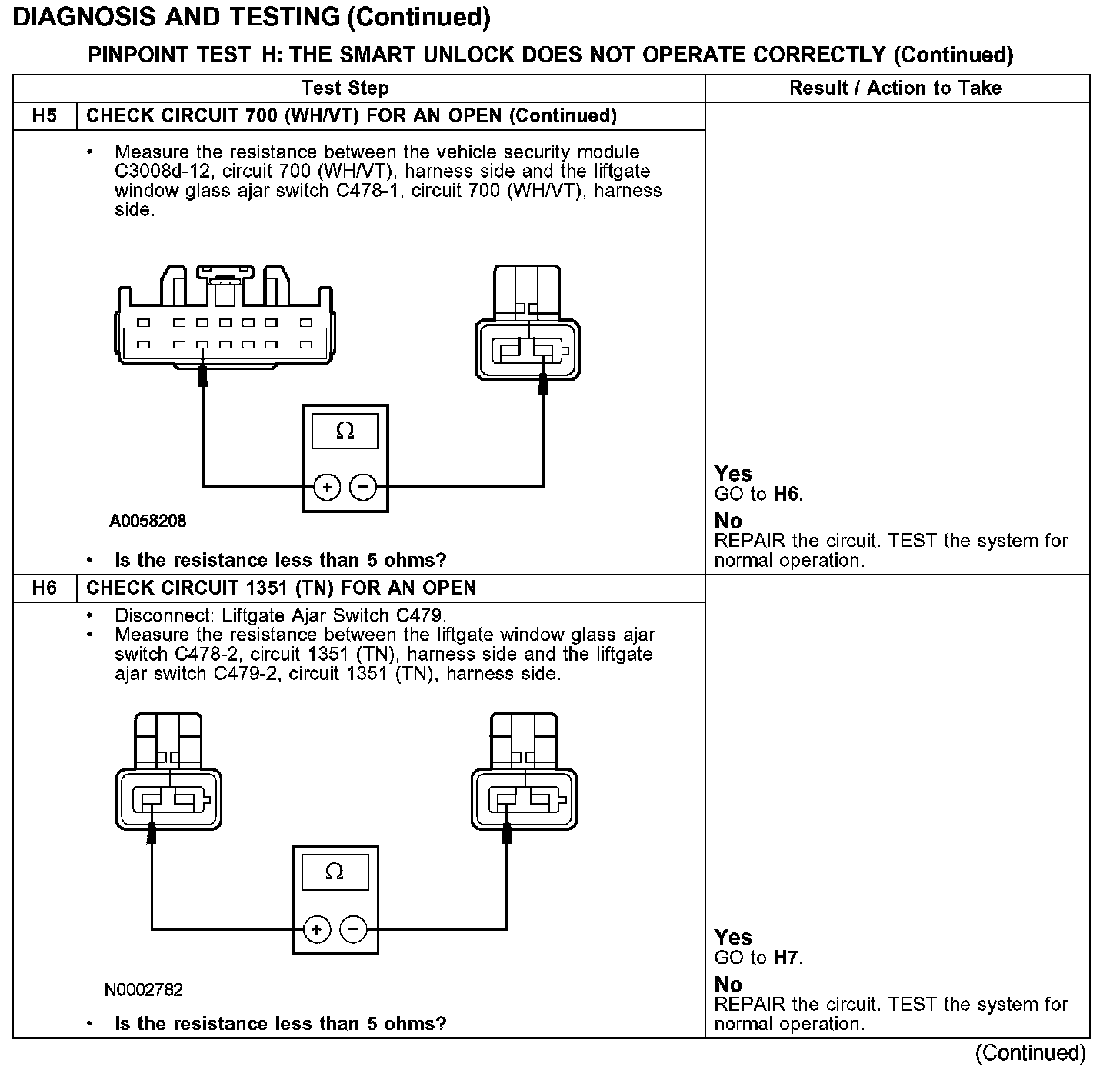

H5-H6:

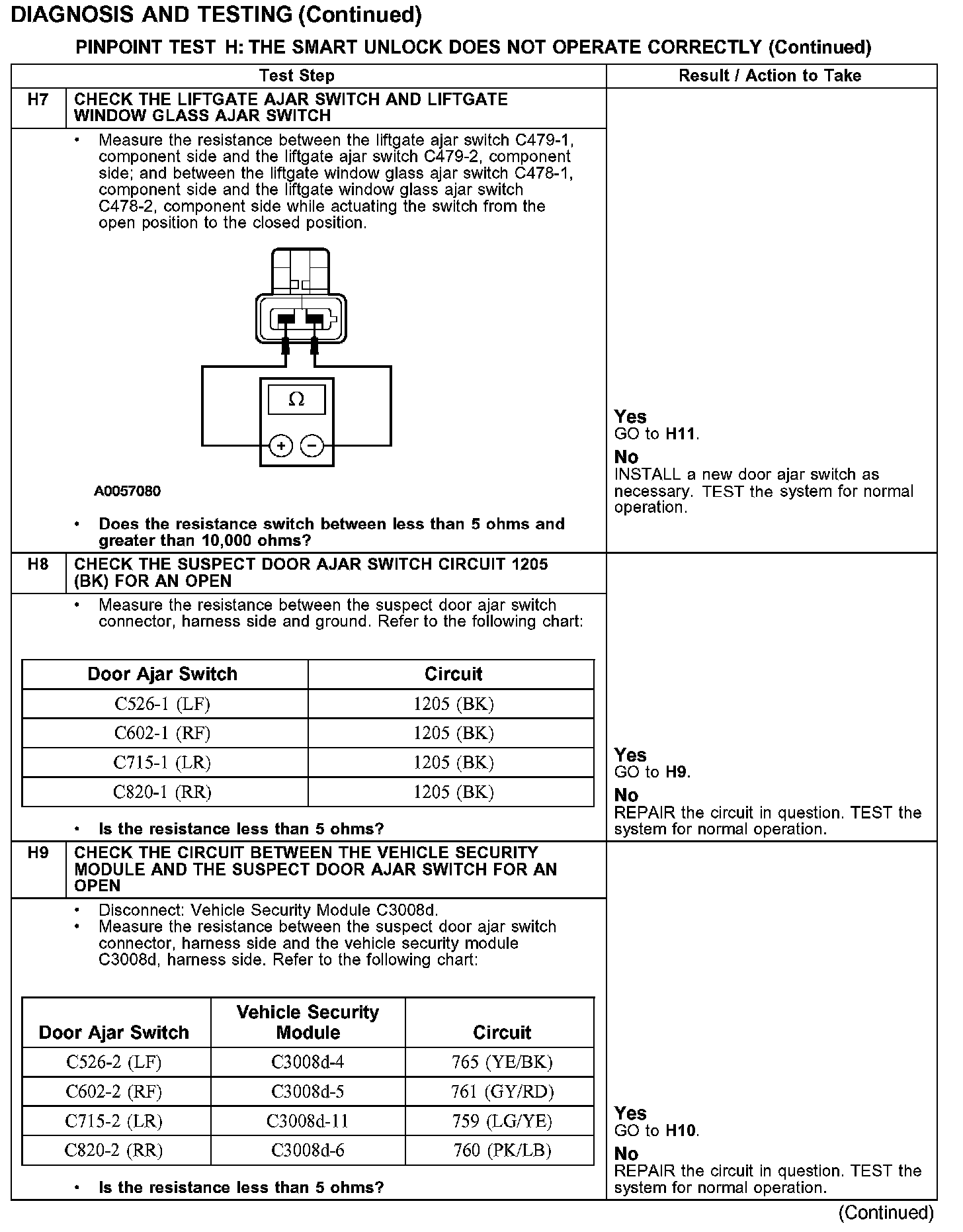

H7-H9:

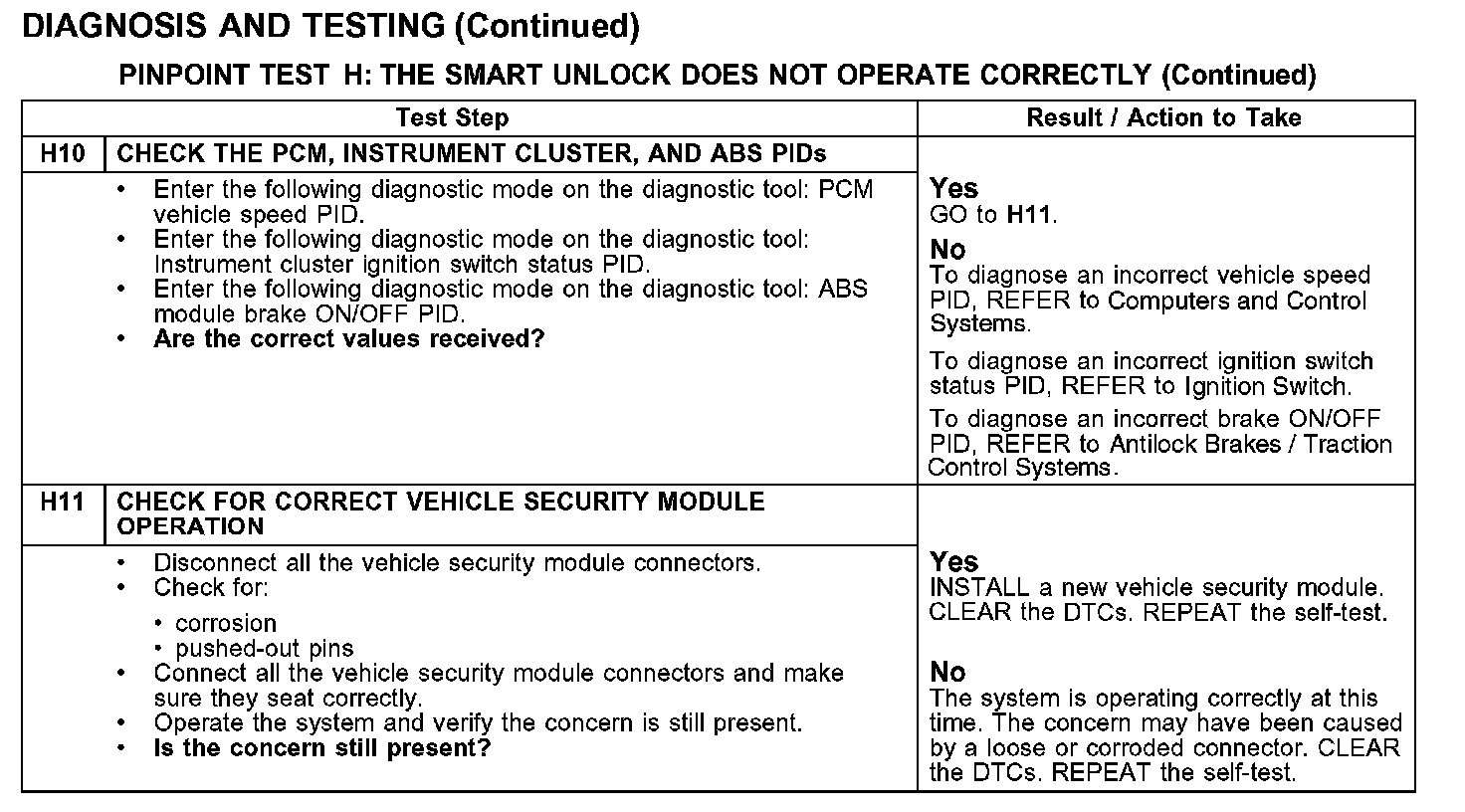

H10-H11:

Normal Operation
Smart unlocking unlocks the door when the following conditions are met:
- key in the ignition
- the driver door is open
- lock all doors is requested from the door lock control switch
- all the passenger doors are closed
- the keycode programming and TIC programming modes are not active

Possible Causes
- circuit 700 (WH/VT) open
- circuit 759 (LG/YE) open
- circuit 760 (PK/LB) open
- circuit 761 (GY/RD) open
- circuit 765 (YE/BK) open
- circuit 1205 (BK) open
- circuit 1351 (TN) open
- door lock control switches
- driver door ajar switch
- universal asynchronous receiver-transmitter (UART)-based protocol (UBP) network
- vehicle security module
