Test D: The Auto-Lock Does Not Operate Correctly

PINPOINT TEST D: THE AUTO-LOCK DOES NOT OPERATE CORRECTLY

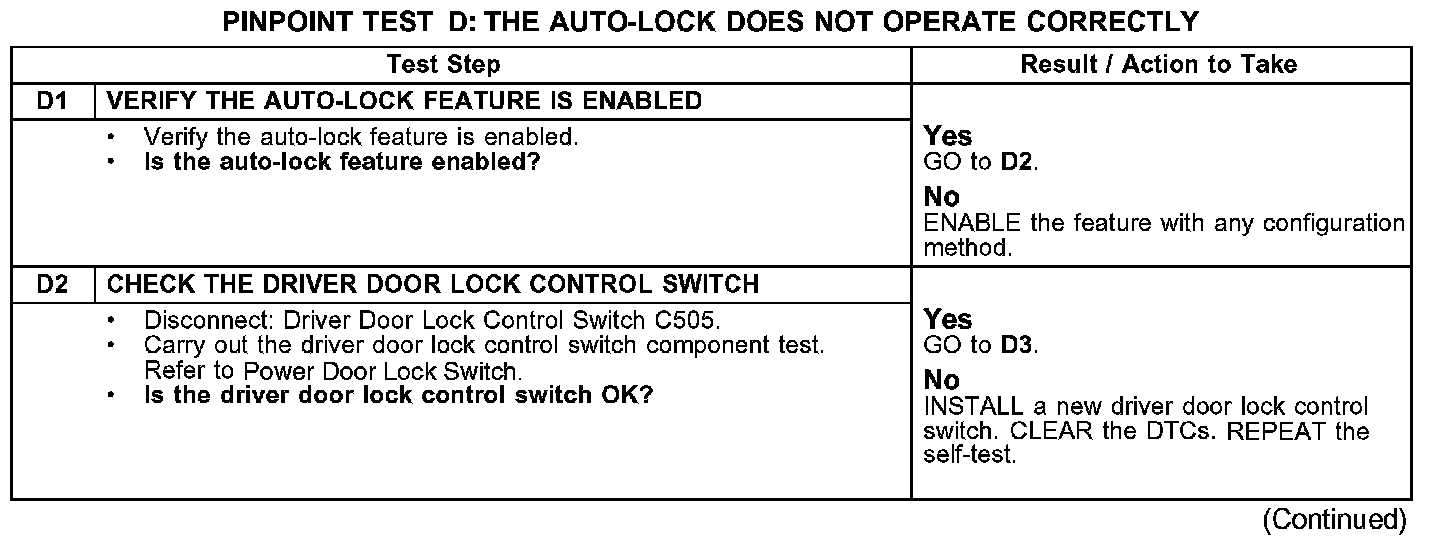

D1-D2:

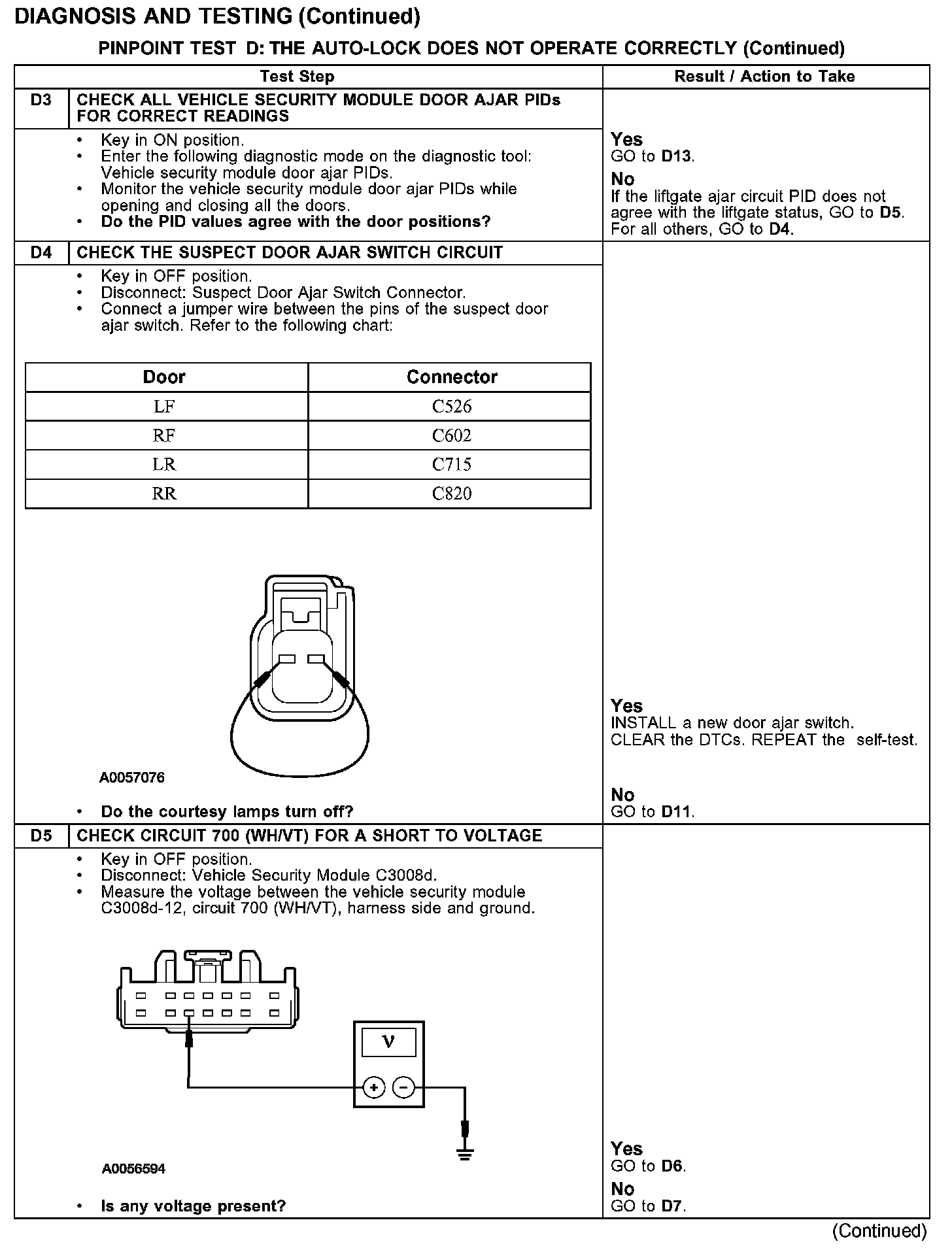

D3-D5:

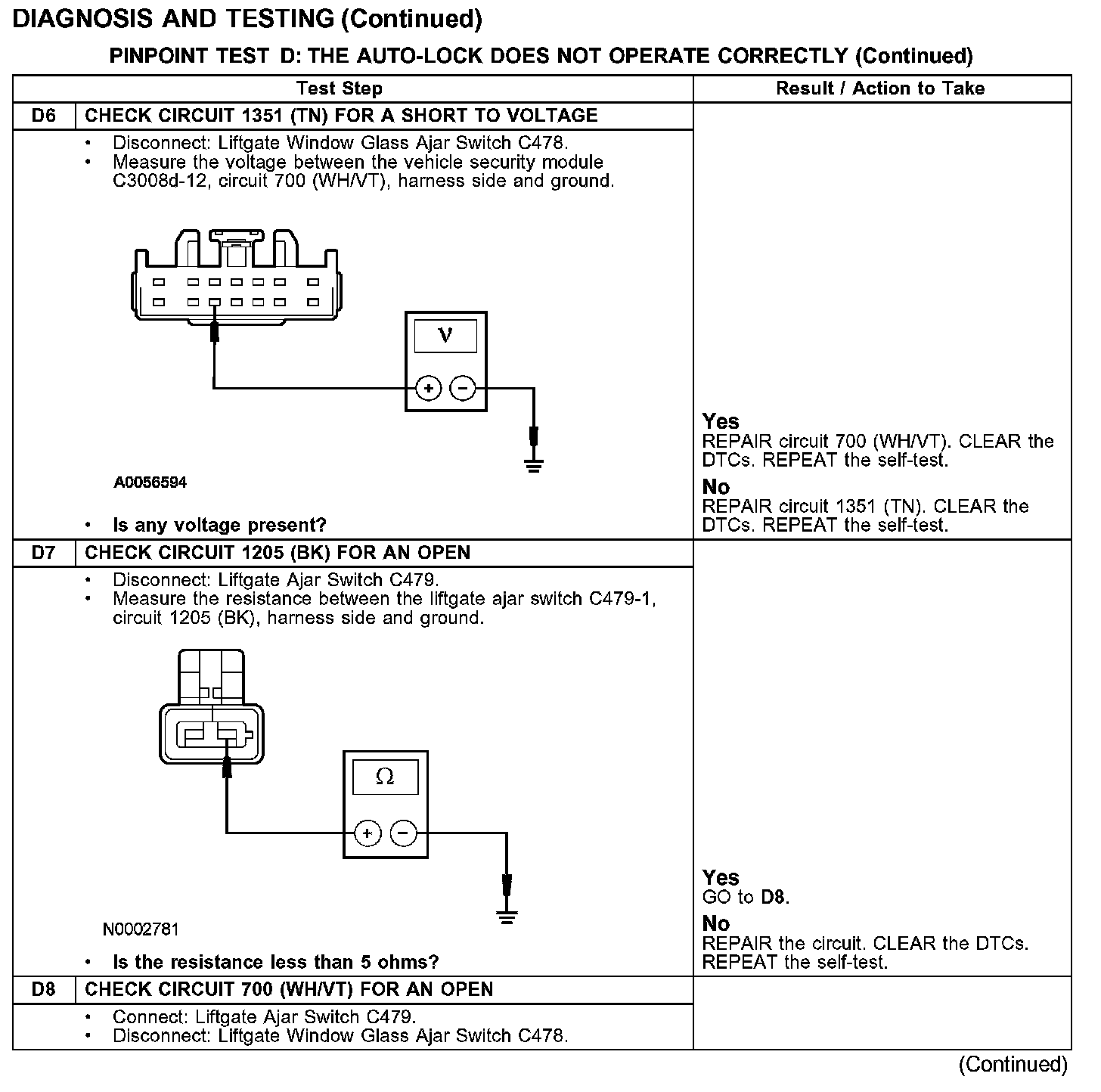

D6-D8:

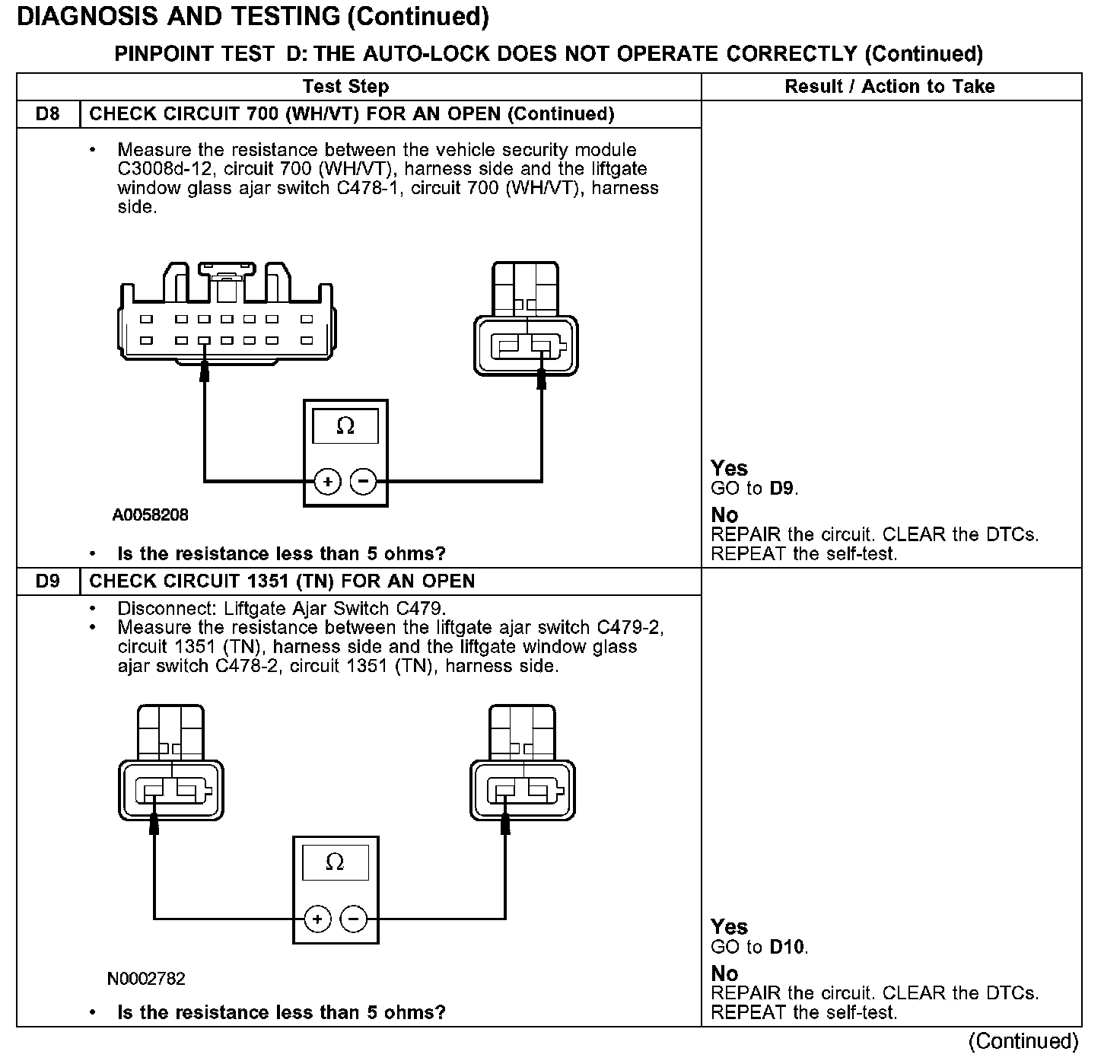

D8-D9:

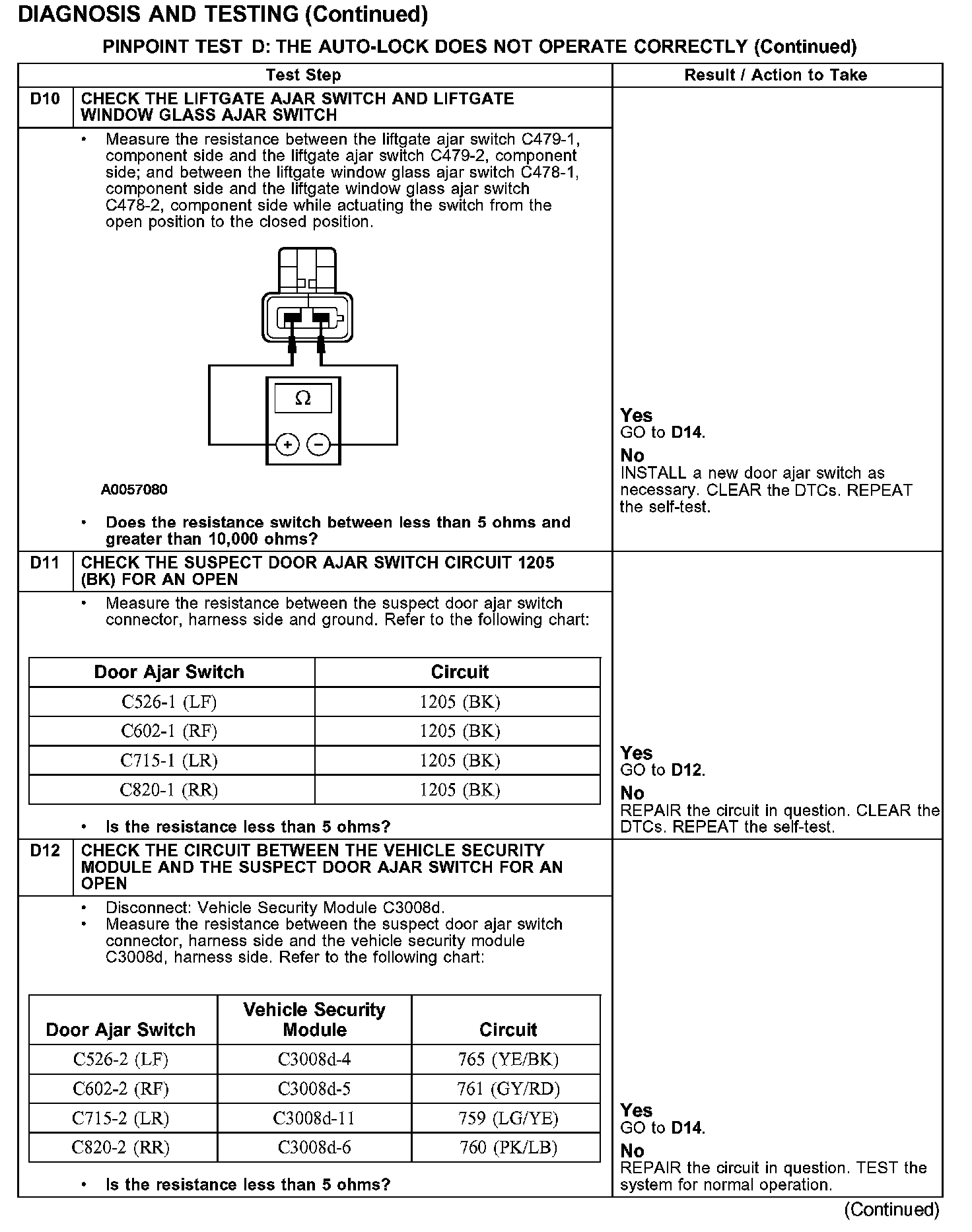

D10-D12:

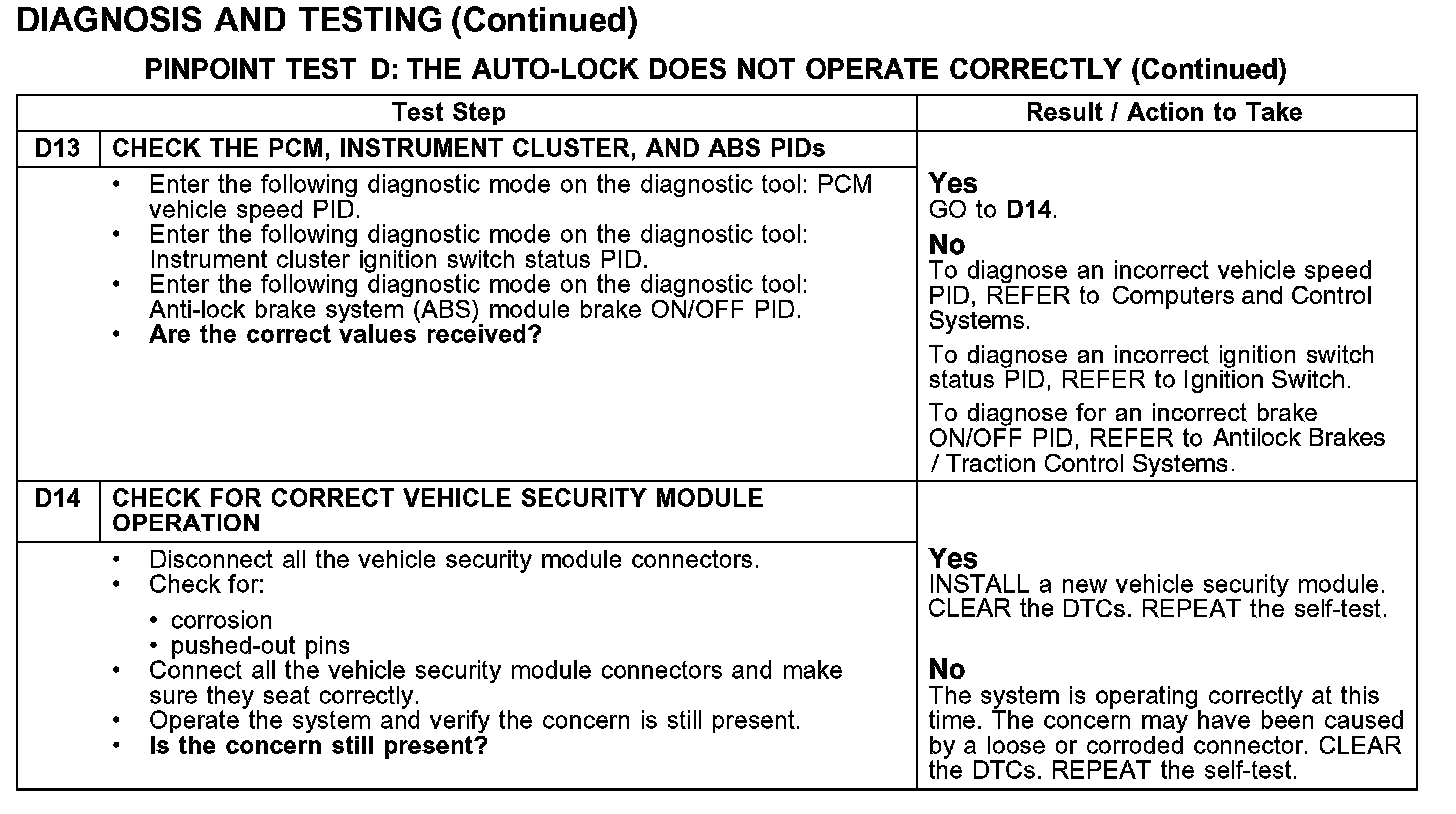

D13-D14:

Normal Operation
When auto-lock is enabled, the vehicle security module reads inputs from the door ajar switches (all doors closed) and receives input from the digital transmission range (TR) sensor and the brake pedal position (BPP) switch from the instrument cluster via the universal asynchronous receiver-transmitter (UART)-based protocol (UBP) network.

Once the vehicle security module receives both inputs, the doors automatically lock.

Possible Causes
- UBP network
- vehicle security module
- door ajar switches
