Power Door Lock Switch: Service and Repair

DOOR LOCK CONTROL SWITCH







Removal and Installation

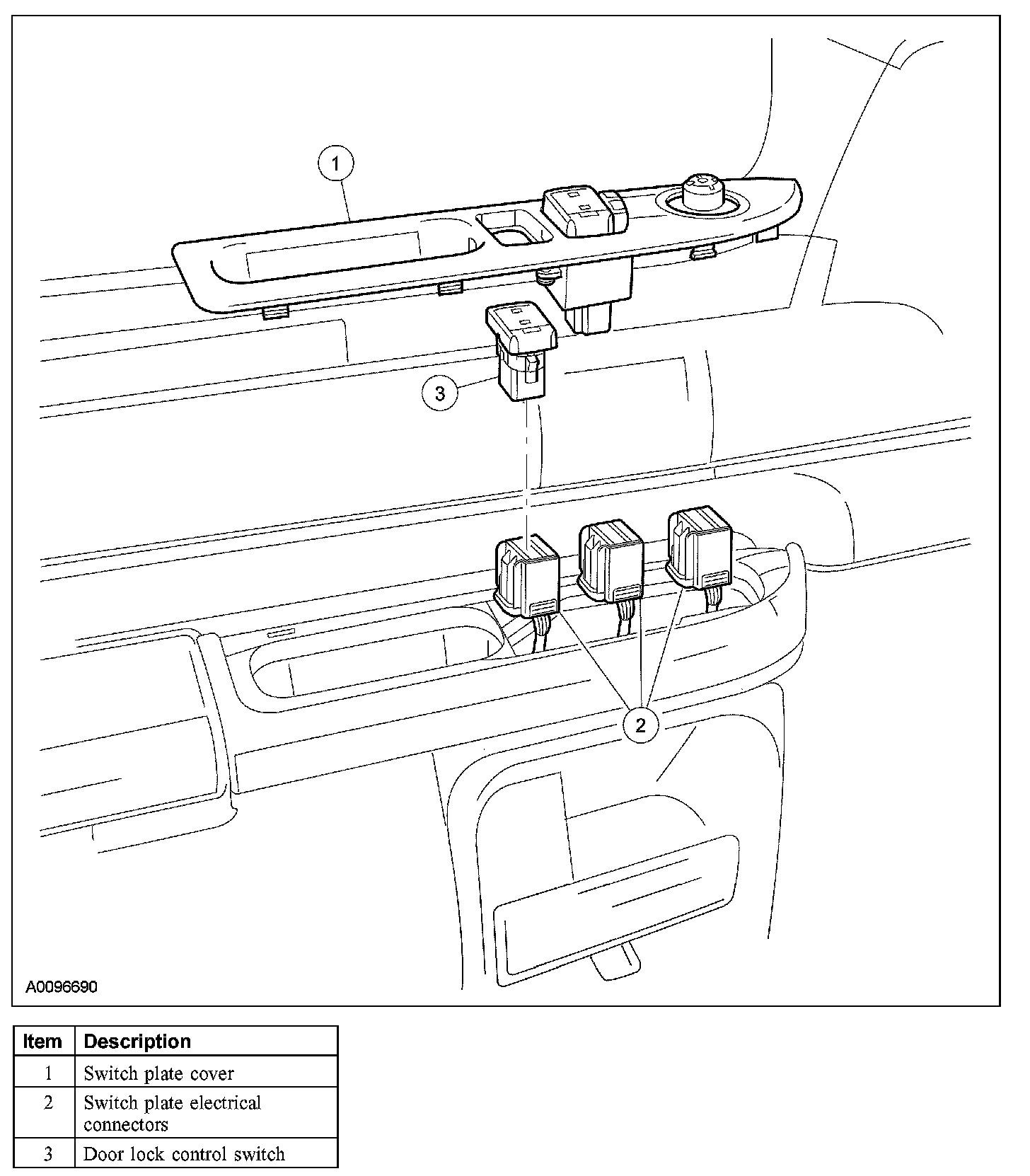

NOTE: The LH side is shown, the RH side is similar.

1. Remove the 2 screws and position the switch plate aside.
2. Disconnect the 3 switch plate electrical connectors.
3. Release the locking tabs and remove the door lock control switch.
4. To install, reverse the removal procedure.
