Liftgate Trim Panel

LIFTGATE TRIM PANEL







Removal and Installation

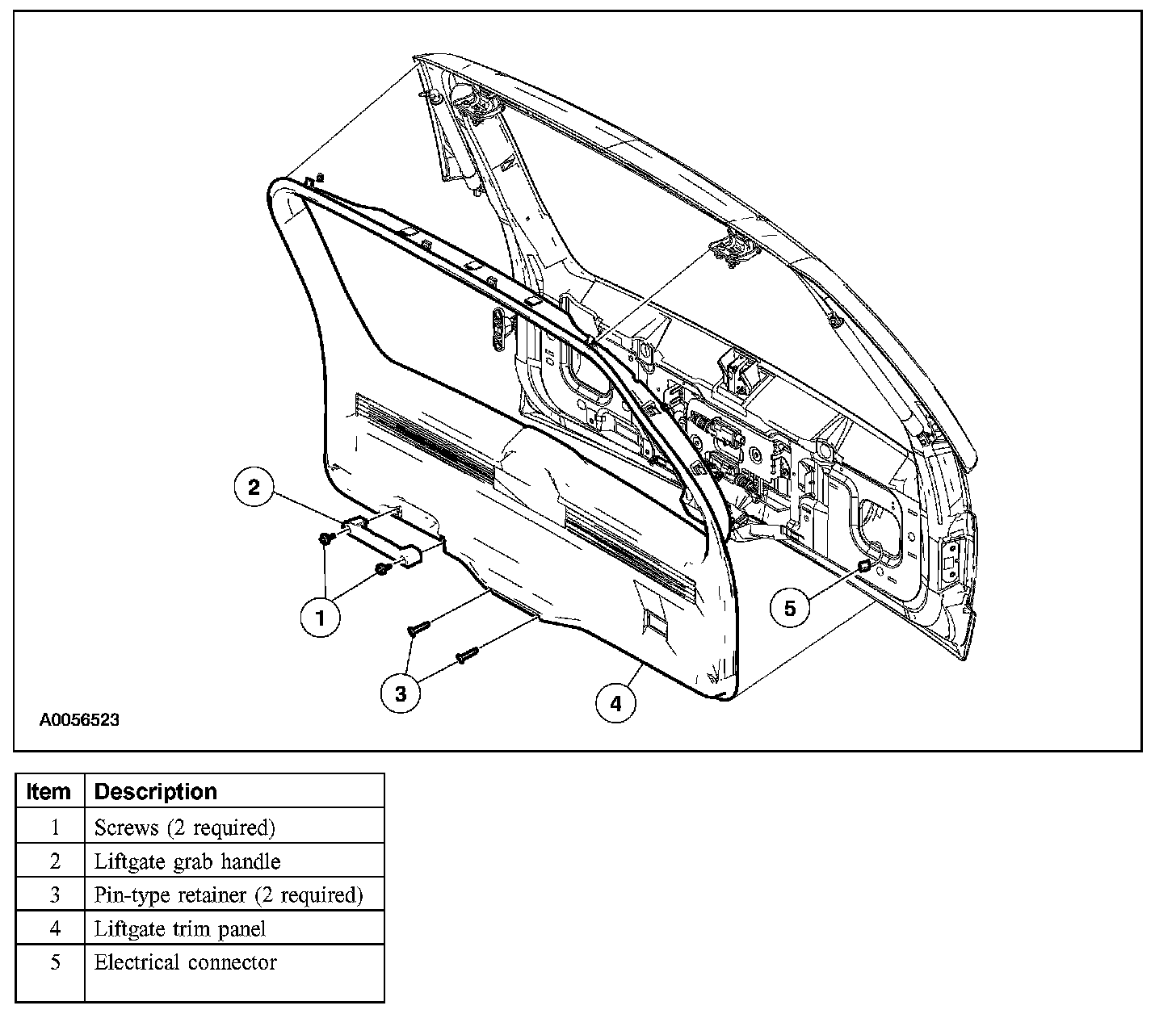

1. Remove the liftgate grab handle screws and the grab handle.
2. Remove the pin-type retainers.
3. Partially remove the liftgate trim panel and disconnect the electrical connector.
4. Remove the liftgate trim panel.
5. To install, reverse the removal procedure.
