D-Pillar Trim Panel

D-PILLAR TRIM PANEL

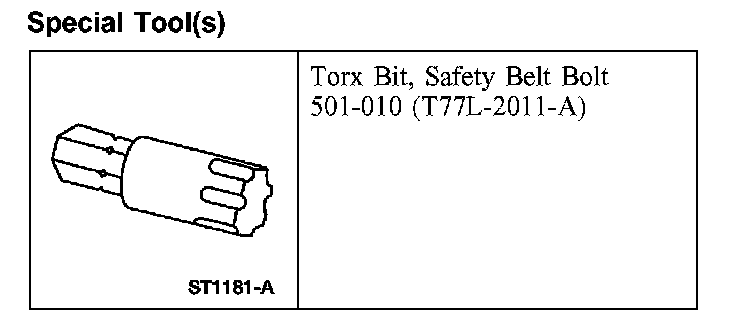

Torx Bit, Safety Belt Bolt:

Special Tool(s)

Removal and Installation

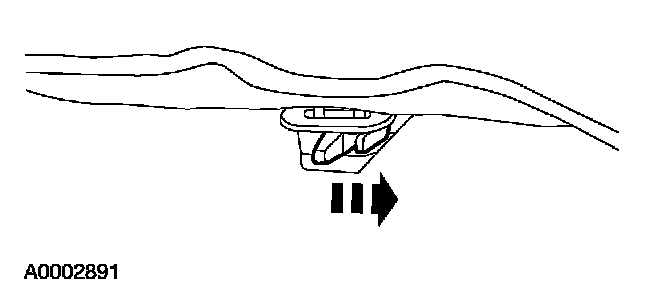

1. Release the two levers located at each lower outboard edge of the third row seat cushion and position the seat cushion aside.
2. Remove the lower safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

3. Carefully remove the D-pillar trim panel.
4. To install, reverse the removal procedure.
