Cluster Finish Panel

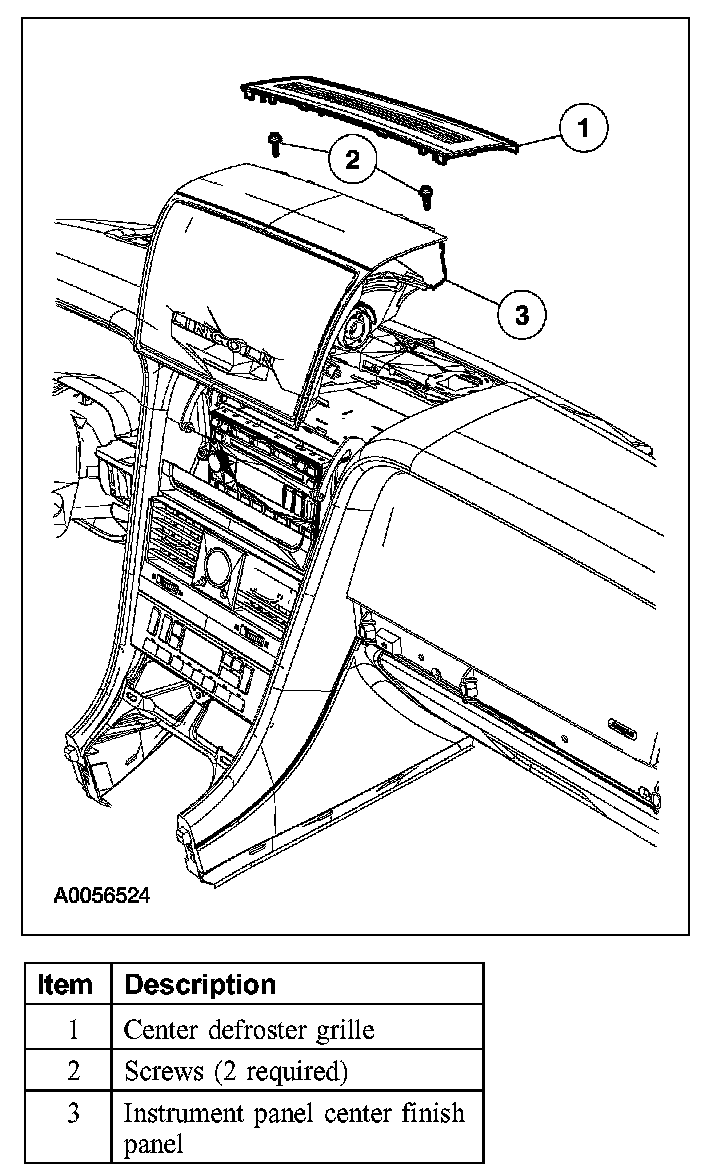

INSTRUMENT CLUSTER FINISH PANEL
Removal and Installation
1. Remove the center defroster grille.
2. Remove the 2 screws.
3. Remove the instrument panel center finish panel.
4. To install, reverse the removal procedure.
Removal and Installation
1. Remove the center defroster grille.
2. Remove the 2 screws.
3. Remove the instrument panel center finish panel.
4. To install, reverse the removal procedure.
