Floor Console - Rear

FLOOR CONSOLE - REAR







Removal and Installation

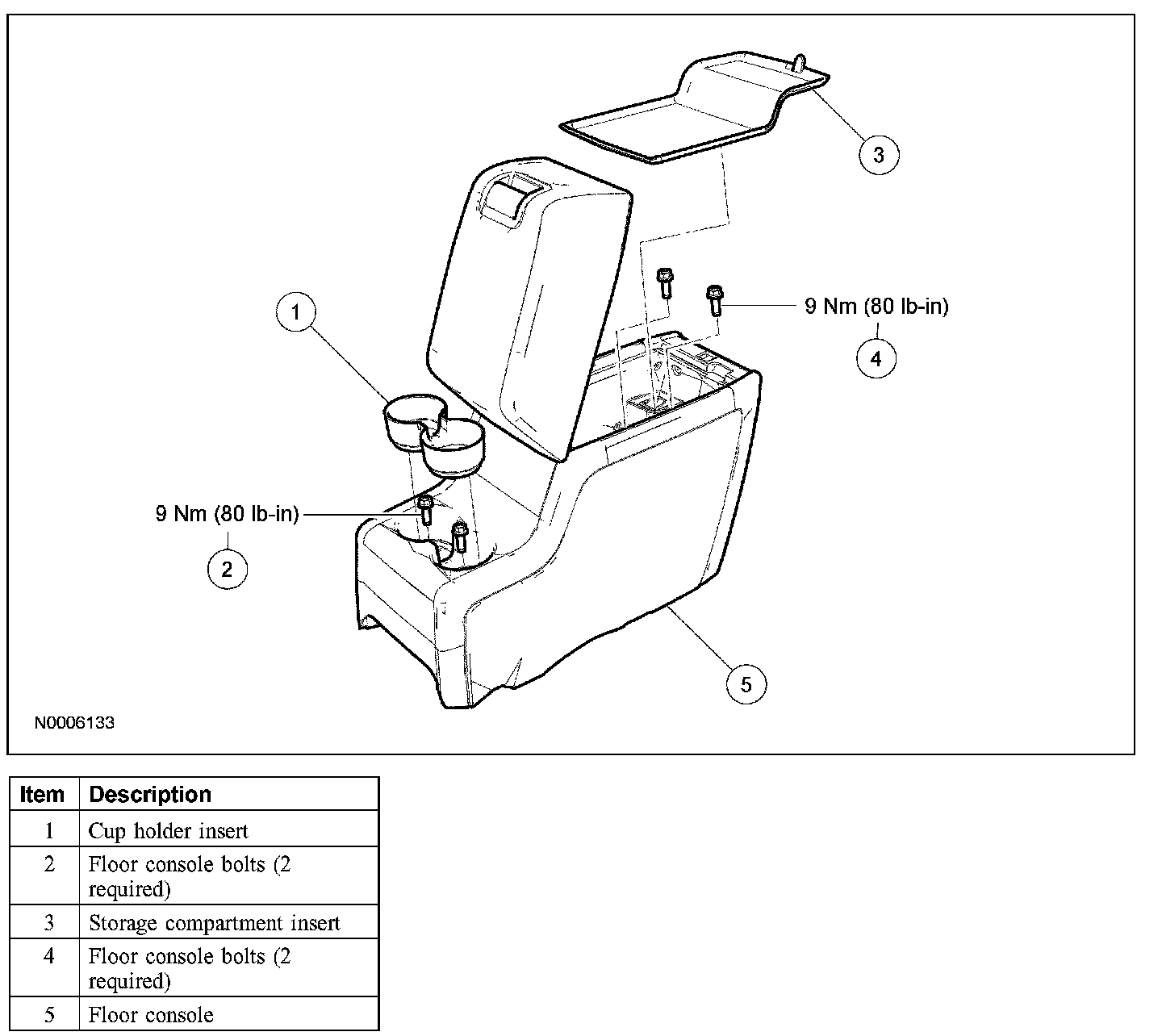

1. Remove the cup holder insert.
2. Remove the 2 bolts located under the cup holder insert.
- To install, tighten to 9 Nm (80 lb-in).

3. Remove the storage compartment insert.
4. Remove the 2 bolts located under the storage compartment insert.
- To install, tighten to 9 Nm (80 lb-in).

5. CAUTION: To prevent damage to the 2 plastic guide pegs located on the bottom of the floor console, remove and install the console in a straight up or down direction.

Remove the floor console.

6. To install, reverse the removal procedure.
