Body Support - Front End Sheet Metal

BODY SUPPORT - FRONT END SHEET METAL







Removal and Installation

NOTE:
- Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.
- No lubricants of any kind are to be used during body mount support installation.

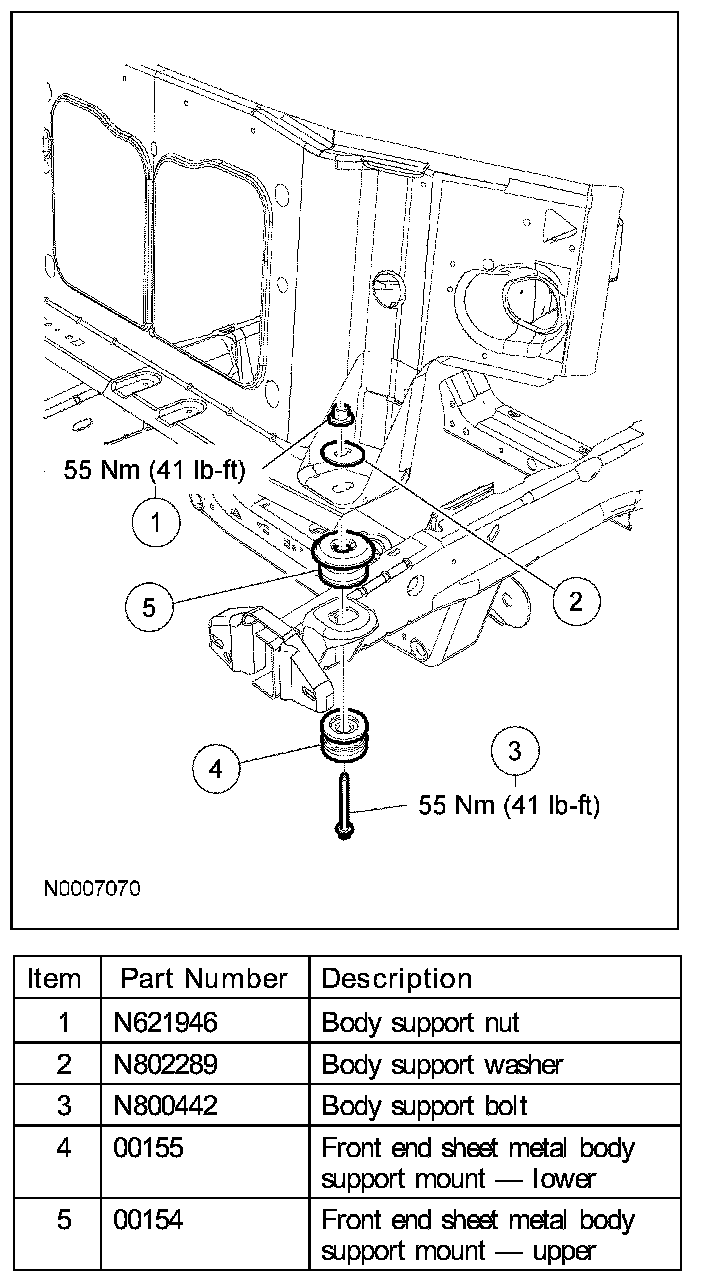

1. Remove the body support nut, washer, lower mount and bolt.
- To install, tighten to 55 Nm (41 lb-ft).

2. Using a suitable lifting device, carefully raise the radiator support enough to allow removal of the upper mount.

3. NOTE:
- Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.
- No lubricants of any kind are to be used during body mount support installation.
To install, reverse the removal procedure.
