Test A: No Communication With The Driver Seat Module (DSM)

PINPOINT TEST A: NO COMMUNICATION WITH THE DRIVER SEAT MODULE (DSM)

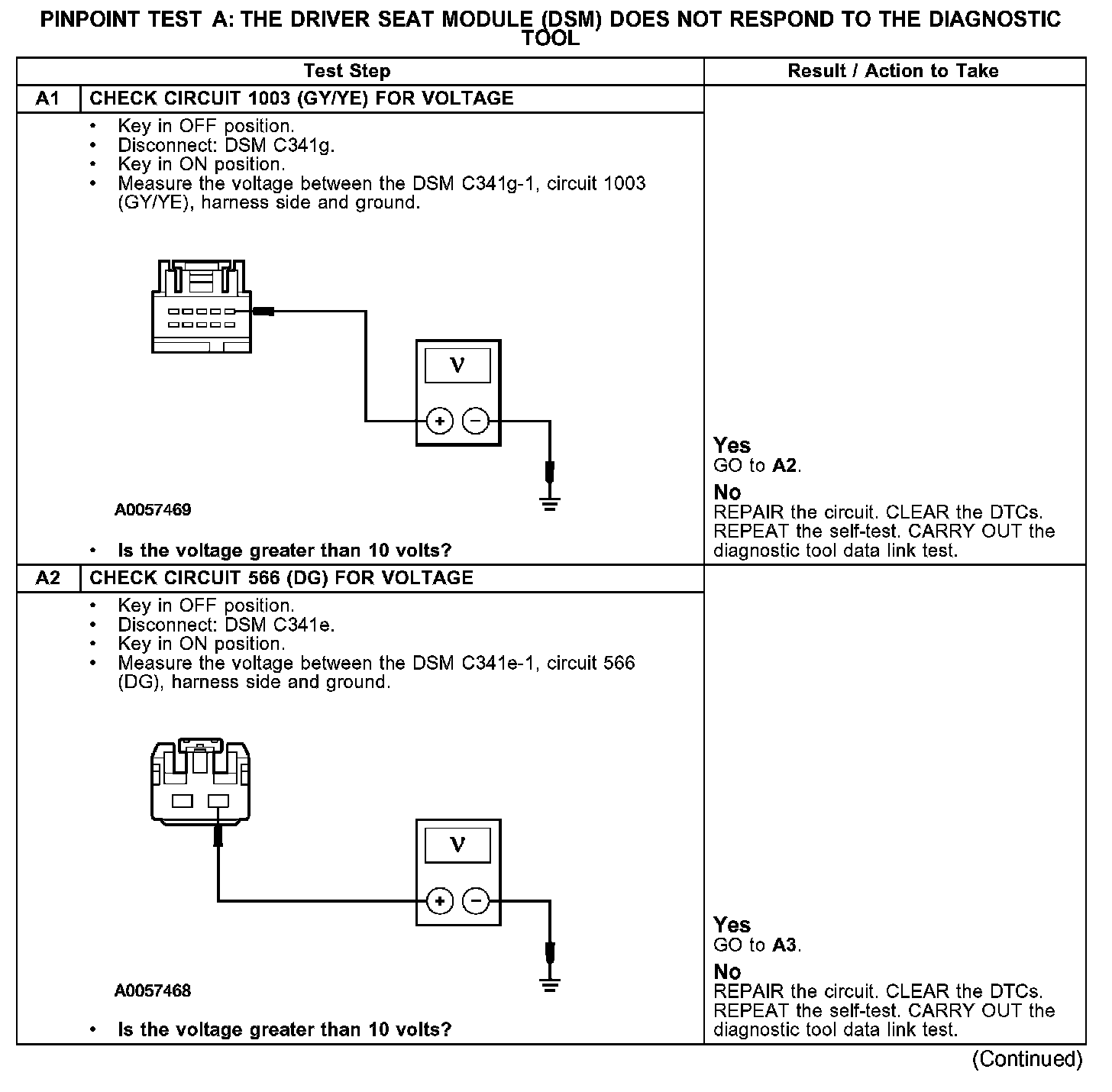

A1-A2:

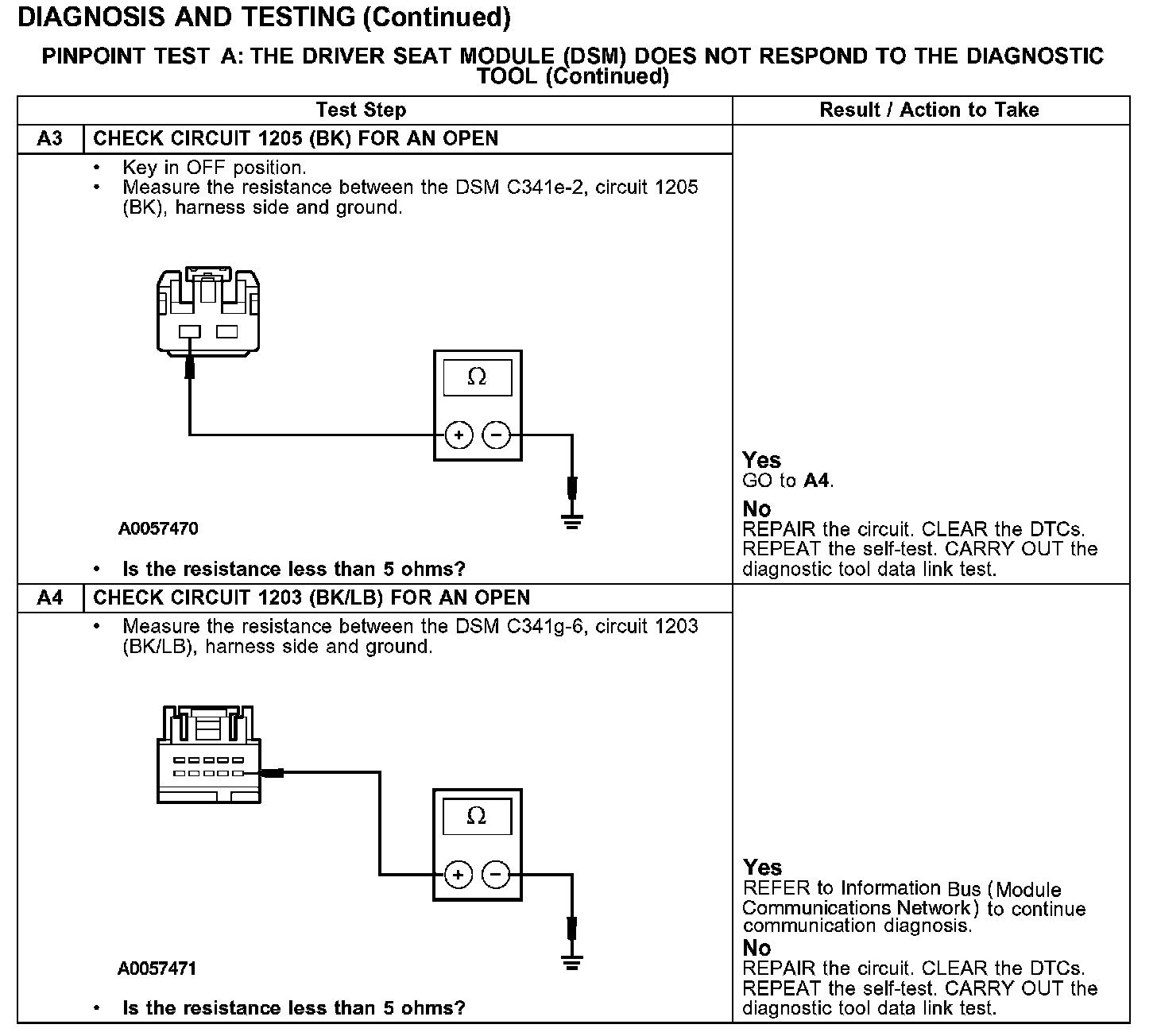

A3-A4:






Normal Operation
The power driver seat and power exterior mirrors are controlled by the DSM only when the vehicle is equipped with the programmable/recall memory option. Voltage is supplied through the central junction box (CJB) fuse 2 (10A) and battery junction box (BJB) fuse 21 (30A) on circuits 1003 (GY/YE), 566 (DG) and grounded through circuit 1203 (BK/LB) and 1205 (BK).


Possible Causes
- CJB fuse 2 (10A)
- BJB fuse 21 (30A)
- circuit 1003 (GY/YE) open or shorted to ground
- circuit 566 (DG) open or shorted to ground
- circuit 1203 (BK/LB) open
- circuit 1205 (BK) open
- DSM
