Auxiliary Step / Running Board: Service and Repair

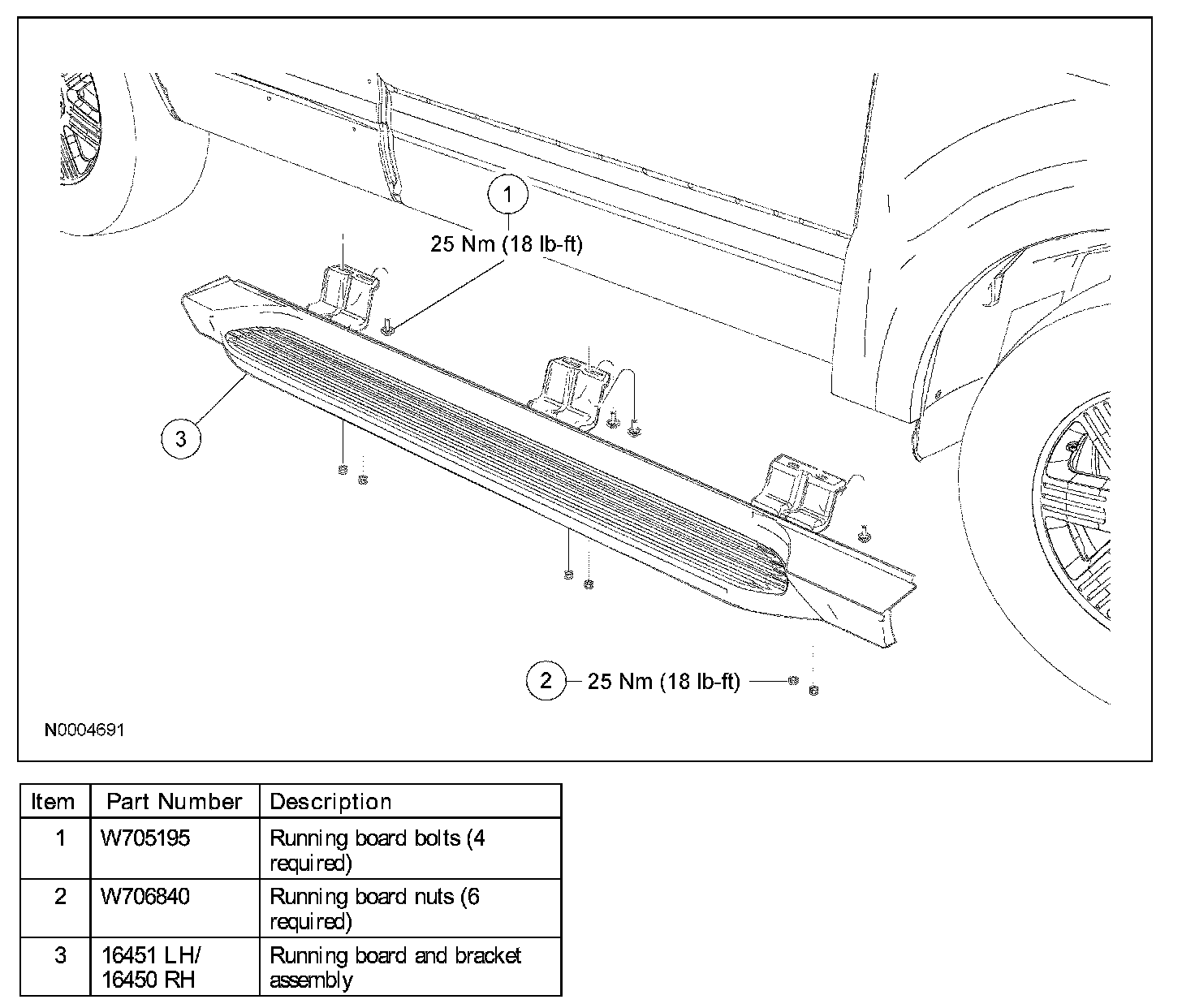

RUNNING BOARD







Removal and Installation
1. Raise and support the vehicle.
2. Remove the bolts and running board assembly.
- To install, tighten to 25 Nm (18 lb-ft).

3. To remove the brackets, remove the nuts.
- To install, tighten to 25 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
