Audio Unit

AUDIO UNIT

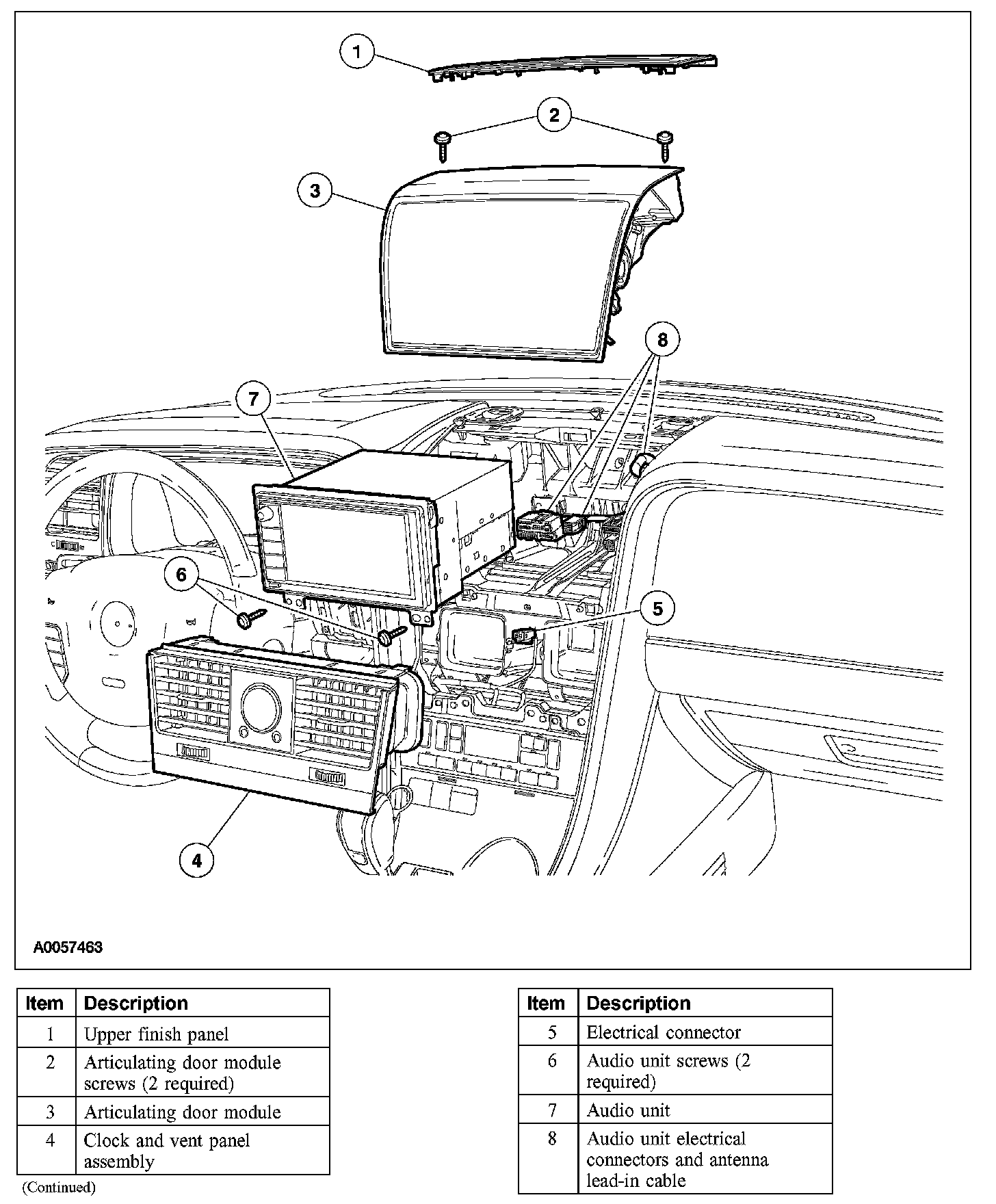

Removal and Installation
1. Remove the upper finish panel.
2. Remove the 2 screws and the articulating door module.
3. Remove the clock and vent panel assembly.
- Disconnect the electrical connector.

4. Remove the 2 screws and the audio unit.
- Disconnect the audio unit electrical connectors and the antenna lead-in cable.

5. To install, reverse the removal procedure.
