Test F: Navigation System Does Not Operate Correctly - The Navigation Screen Is Inoperative

PINPOINT TEST F: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - THE NAVIGATION SCREEN IS INOPERATIVE

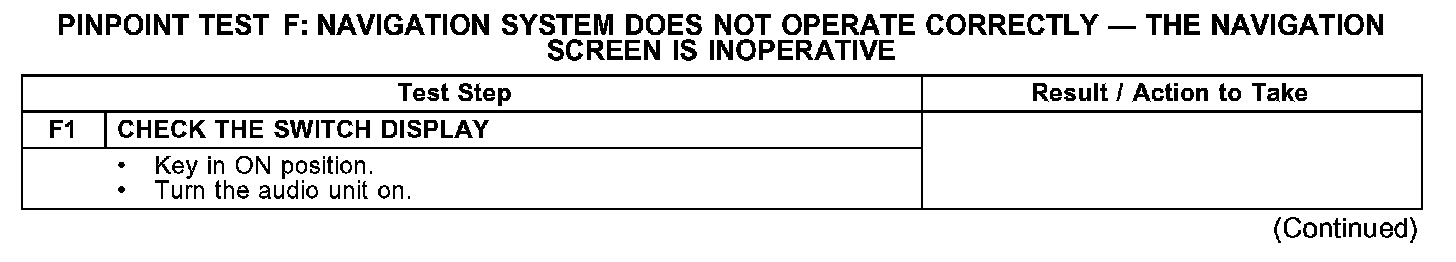

F1:

F1 Continued:

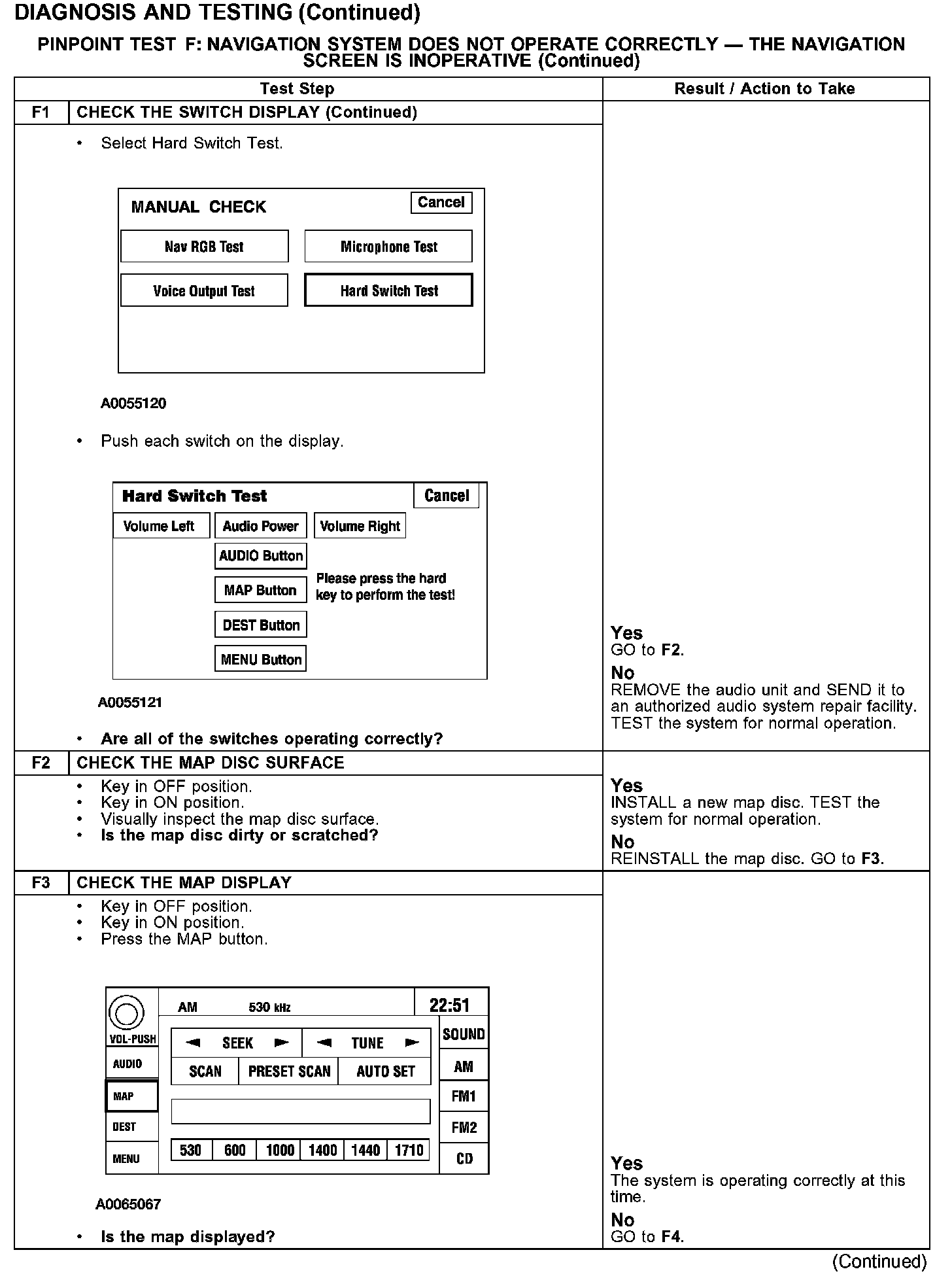

F1-F3:

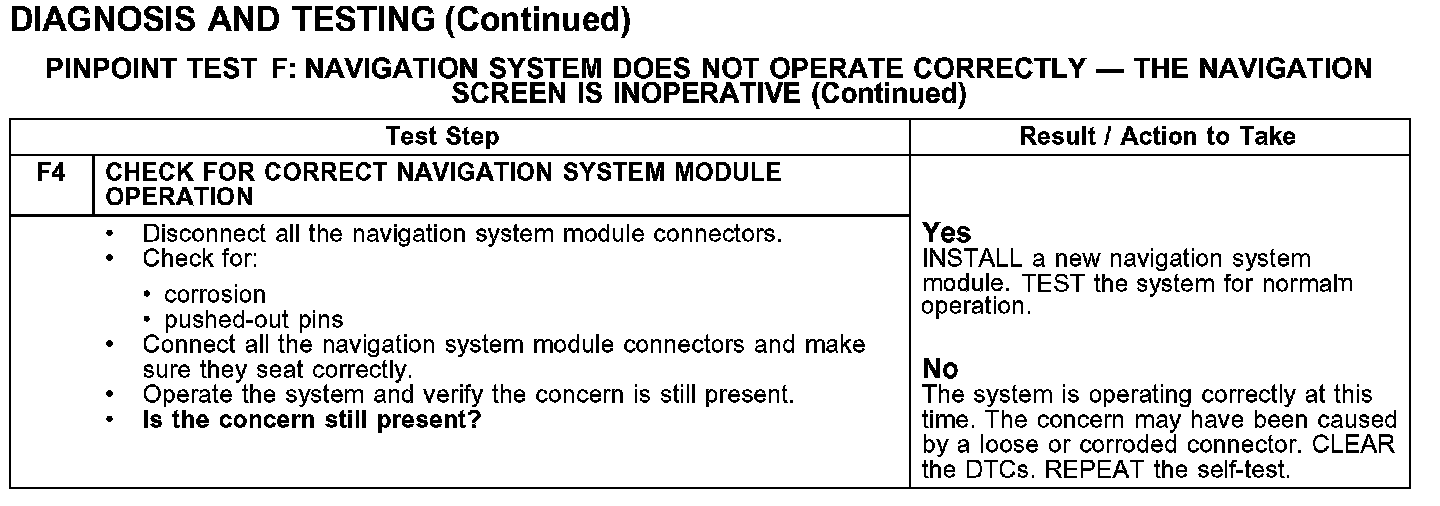

F4:

Normal Operation
The screen display of the audio unit for the audio and navigation system is controlled by the navigation system module. A map DVD stored in the navigation system module sends route data to the audio unit through the video interface circuits.

Possible Causes
- navigation system disc
- navigation system module
- audio unit
