Driver/Vehicle Information Display: Service and Repair

MESSAGE CENTER SWITCH







Removal and Installation

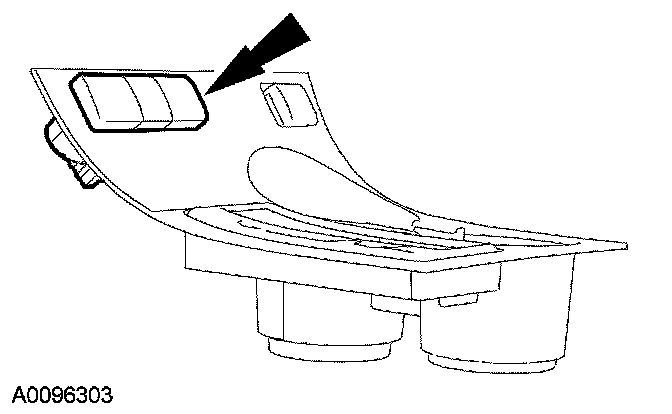

1. Remove the floor console center finish panel.

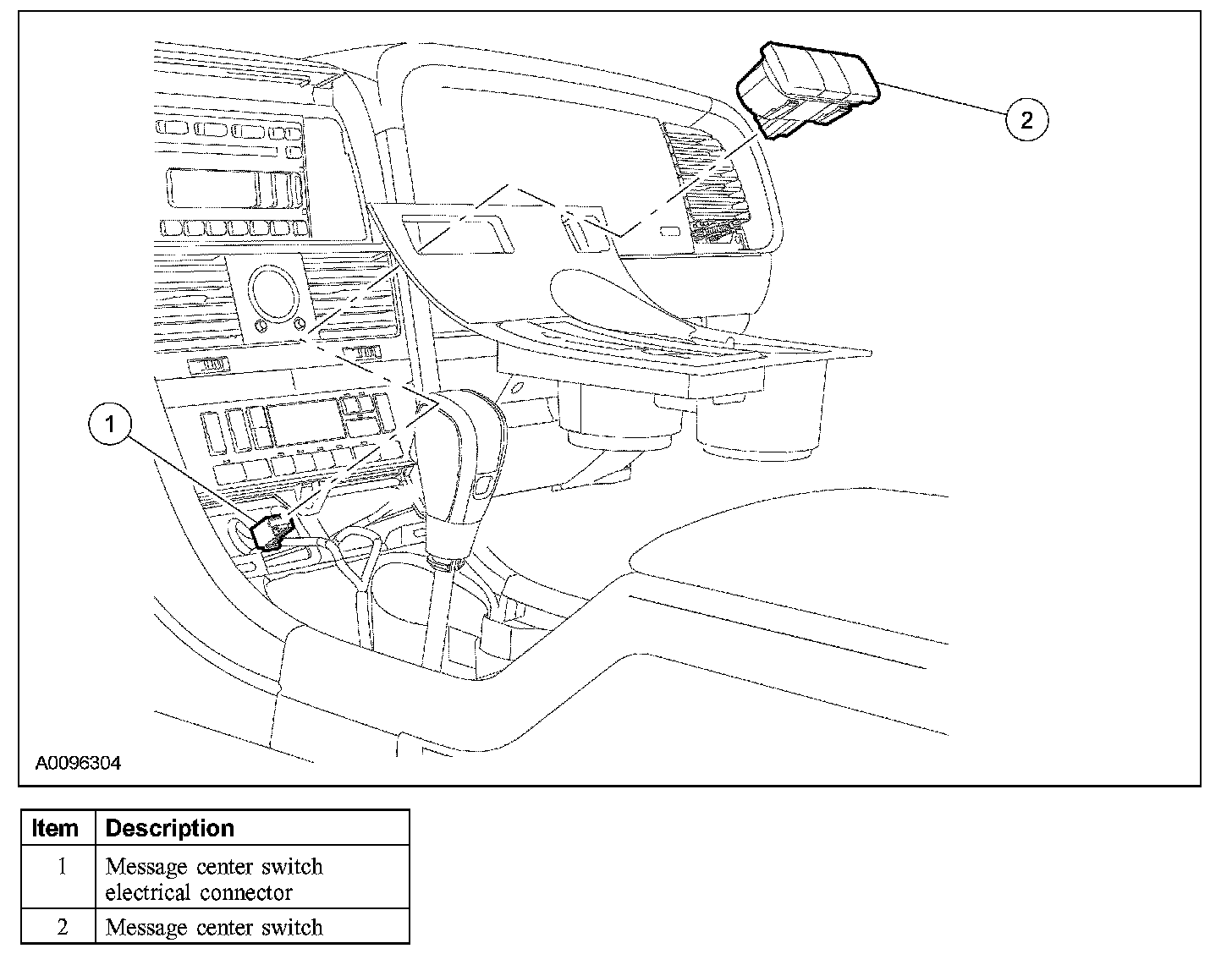

2. Remove the message center switch.
- Press the retaining tabs to remove the switch.

3. To install, reverse the removal procedure.
