Test C: The Alarm System Does Not Arm/Disarm - Using The Remote Keyless Entry Keypad

PINPOINT TEST C: THE ALARM SYSTEM DOES NOT ARM/DISARM - USING THE REMOTE KEYLESS ENTRY KEYPAD

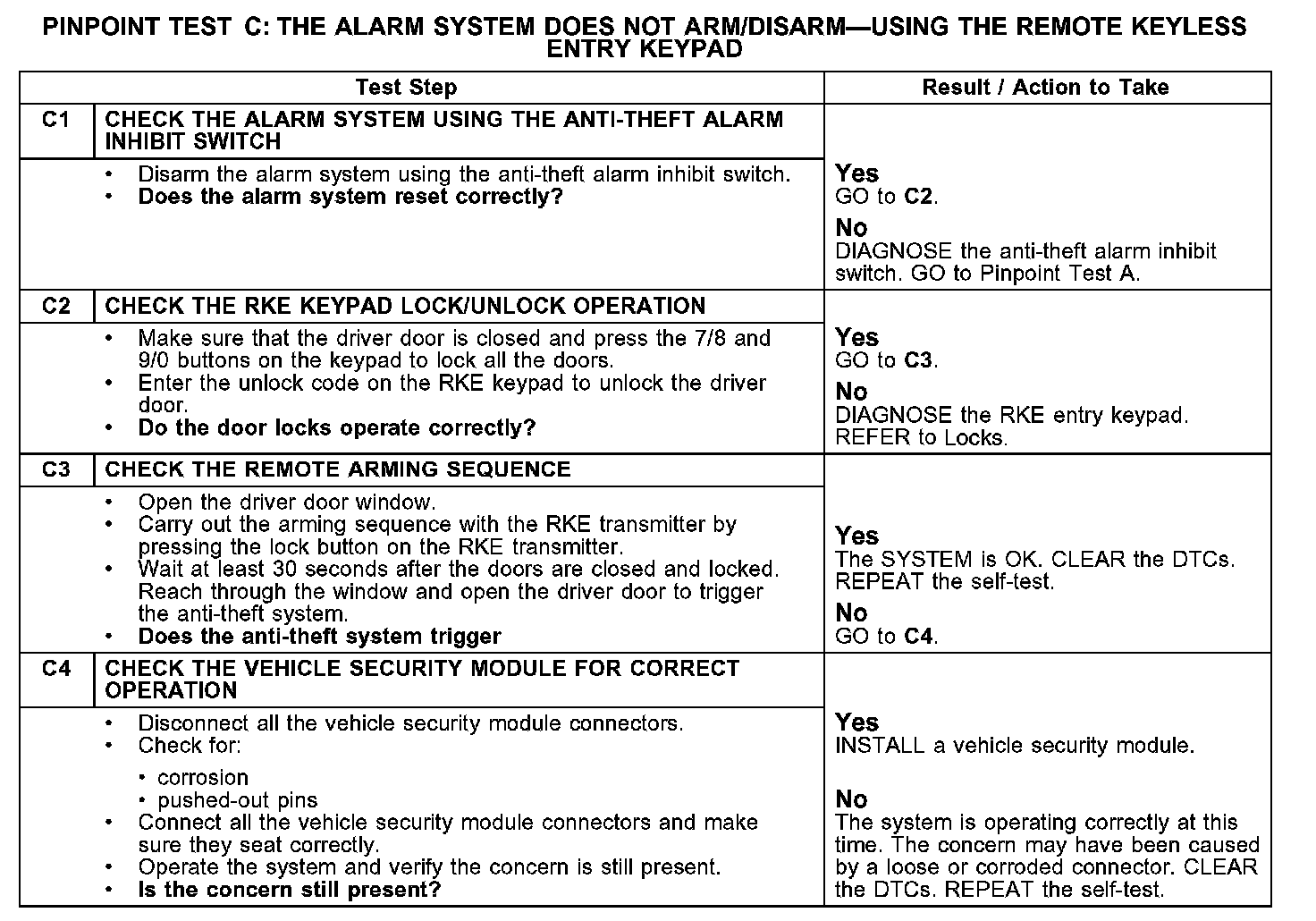

C1-C4:

Normal Operation
The remote keyless entry (RKE) keypad is used to manually input a user set entry code to the vehicle security module. Upon receiving the correct code, the vehicle security module unlocks the doors by providing a ground through an internal relay.

Possible Causes
- vehicle security module
- RKE transmitter
- RKE keypad
