Test B: The Alarm System Does Not Arm/Disarm - Using The Remote Keyless Entry Transmitter

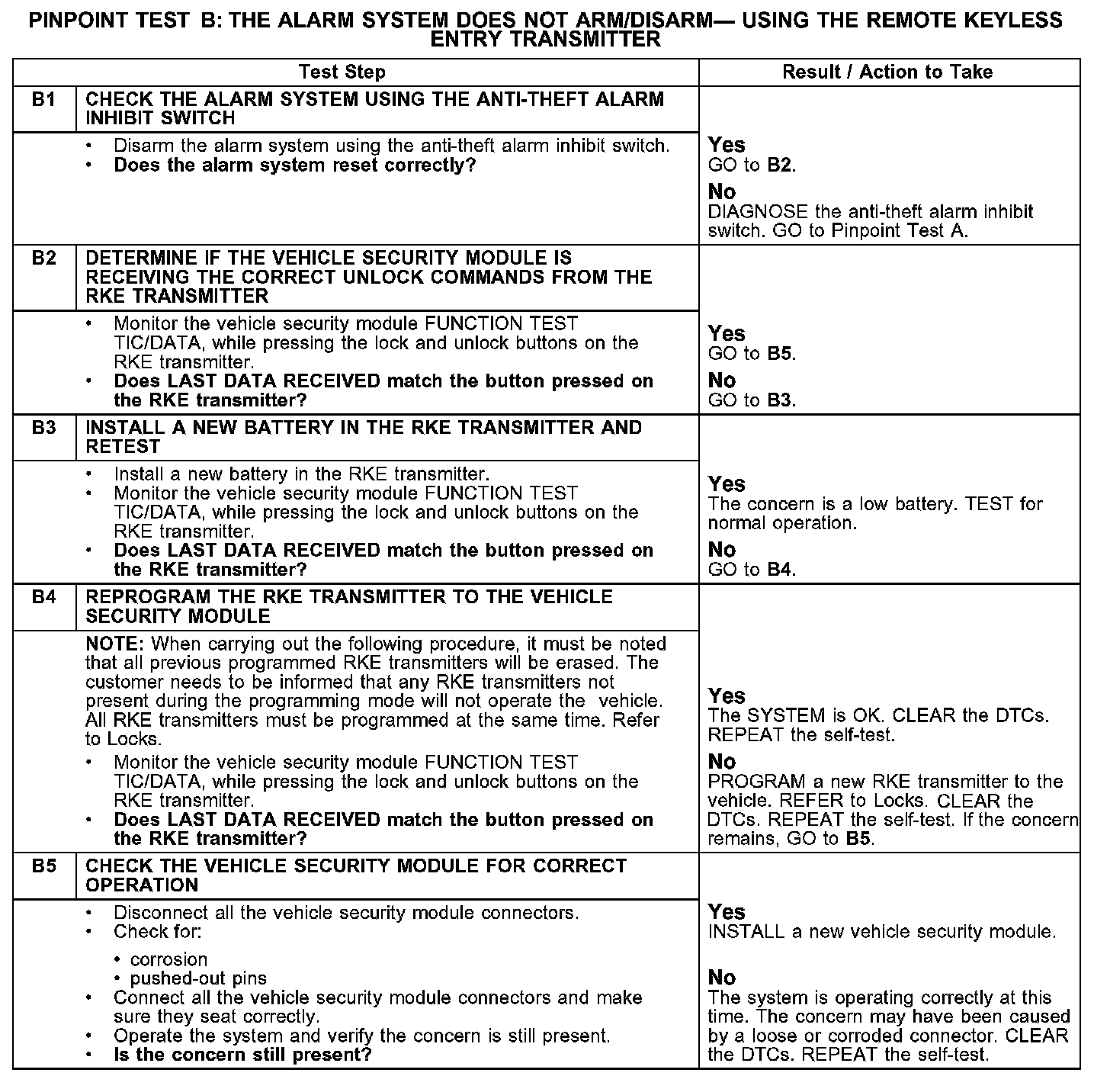

PINPOINT TEST B: THE ALARM SYSTEM DOES NOT ARM/DISARM - USING THE REMOTE KEYLESS ENTRY TRANSMITTER

B1-B5:

Normal Operation
The vehicle security module receives arm/disarm commands from the remote keyless entry (RKE) transmitter. The vehicle security module then arms/disarms the perimeter alarm system.

Possible Causes
- RKE transmitter battery
- RKE transmitter
- vehicle security module
