Alarm System Transponder: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER

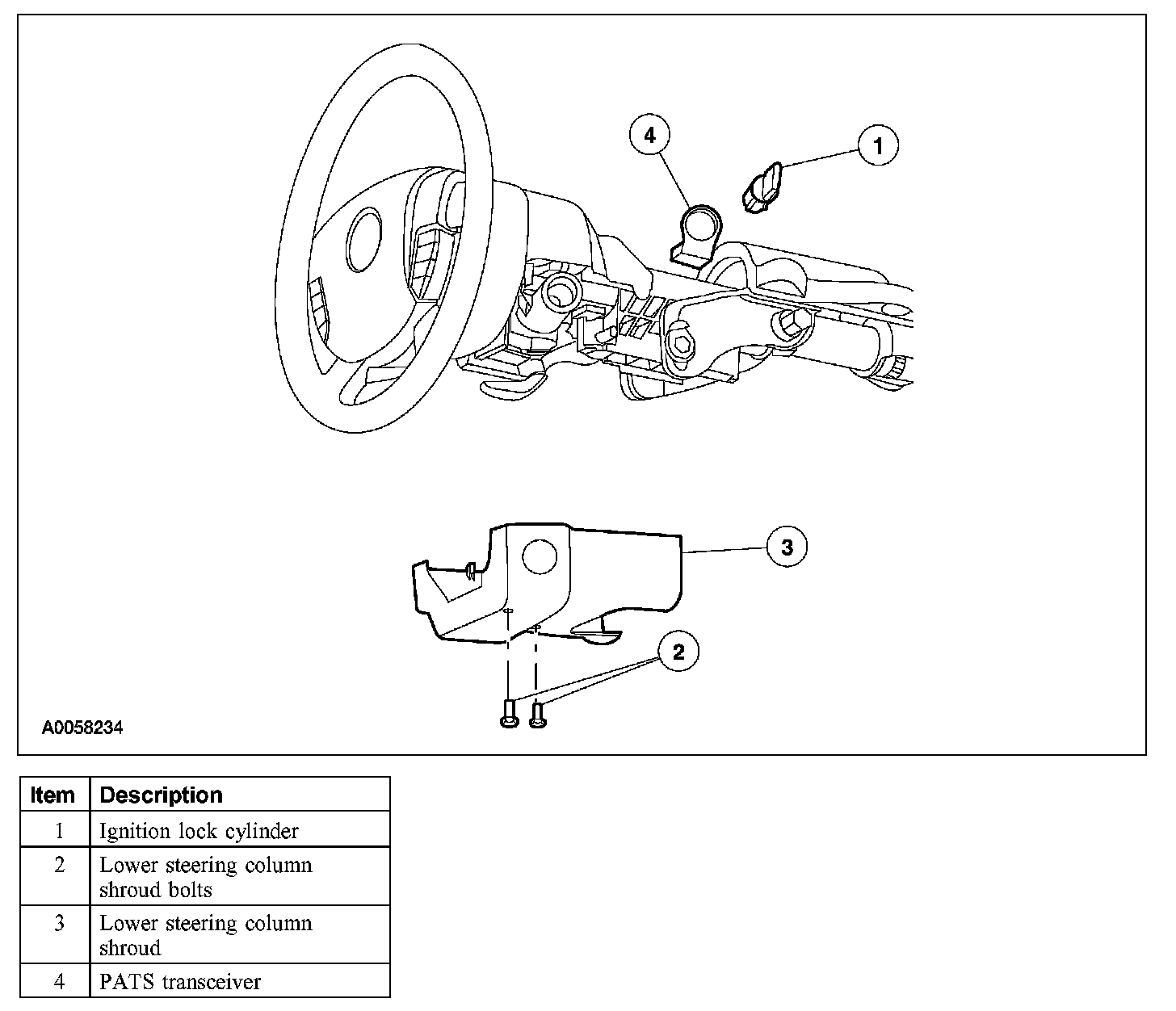

Removal and Installation
1. Disconnect the battery.
2. Remove the ignition lock cylinder.
- Insert the ignition key into the ignition lock cylinder and turn the key to the RUN position.
- Push the ignition lock cylinder release tab with a punch while pulling out the ignition cylinder.

3. Remove the screws and the upper and lower steering column shrouds.
4. Disconnect the PATS transceiver electrical connector.
5. Remove the PATS transceiver.
- Remove the PATS transceiver retaining screw.

6. To install, reverse the removal procedure.
