Test D

PINPOINT TEST D: ELECTRICAL PRESSURE CONTROL (EPC) SOLENOID

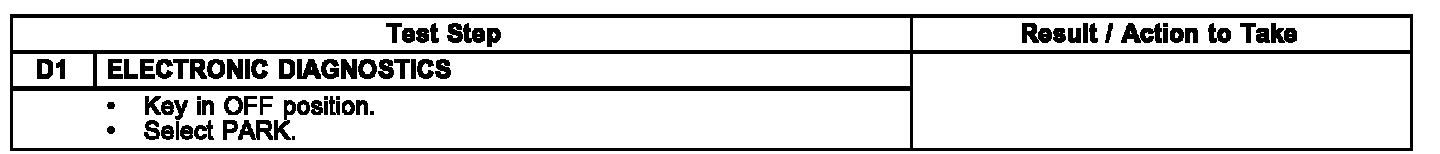

Test D1:

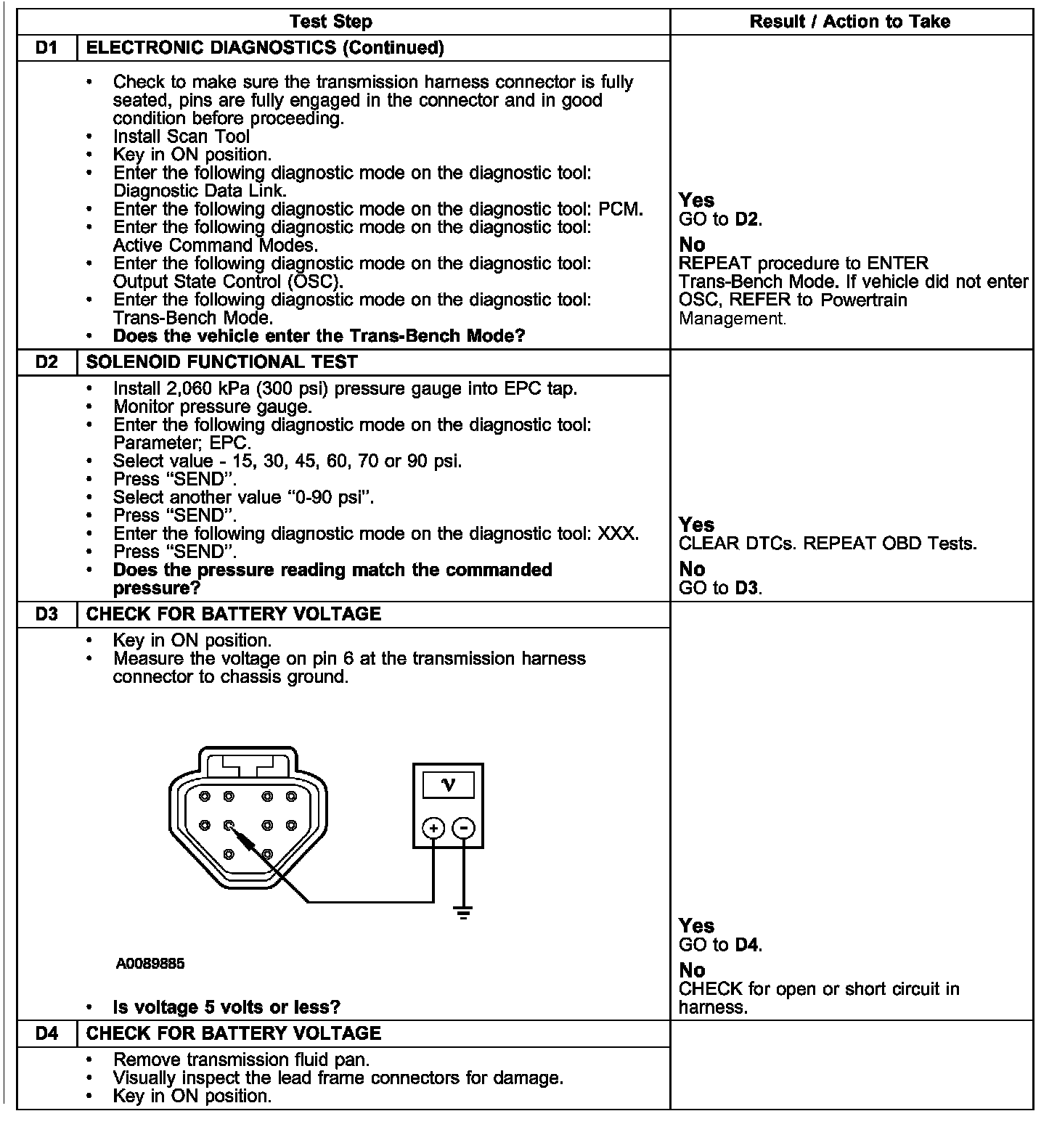

Test D1-D4:

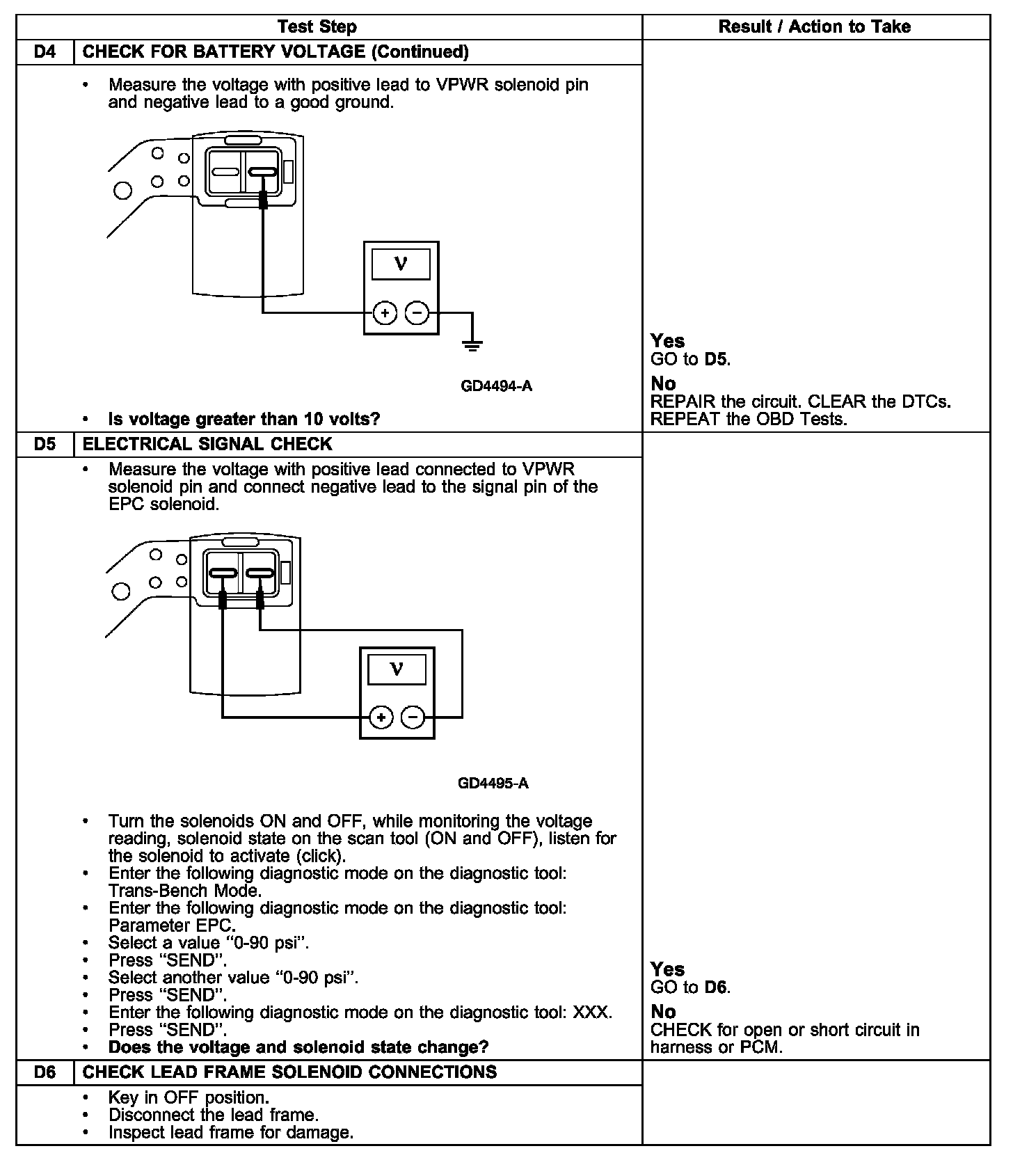

Test D4-D6:

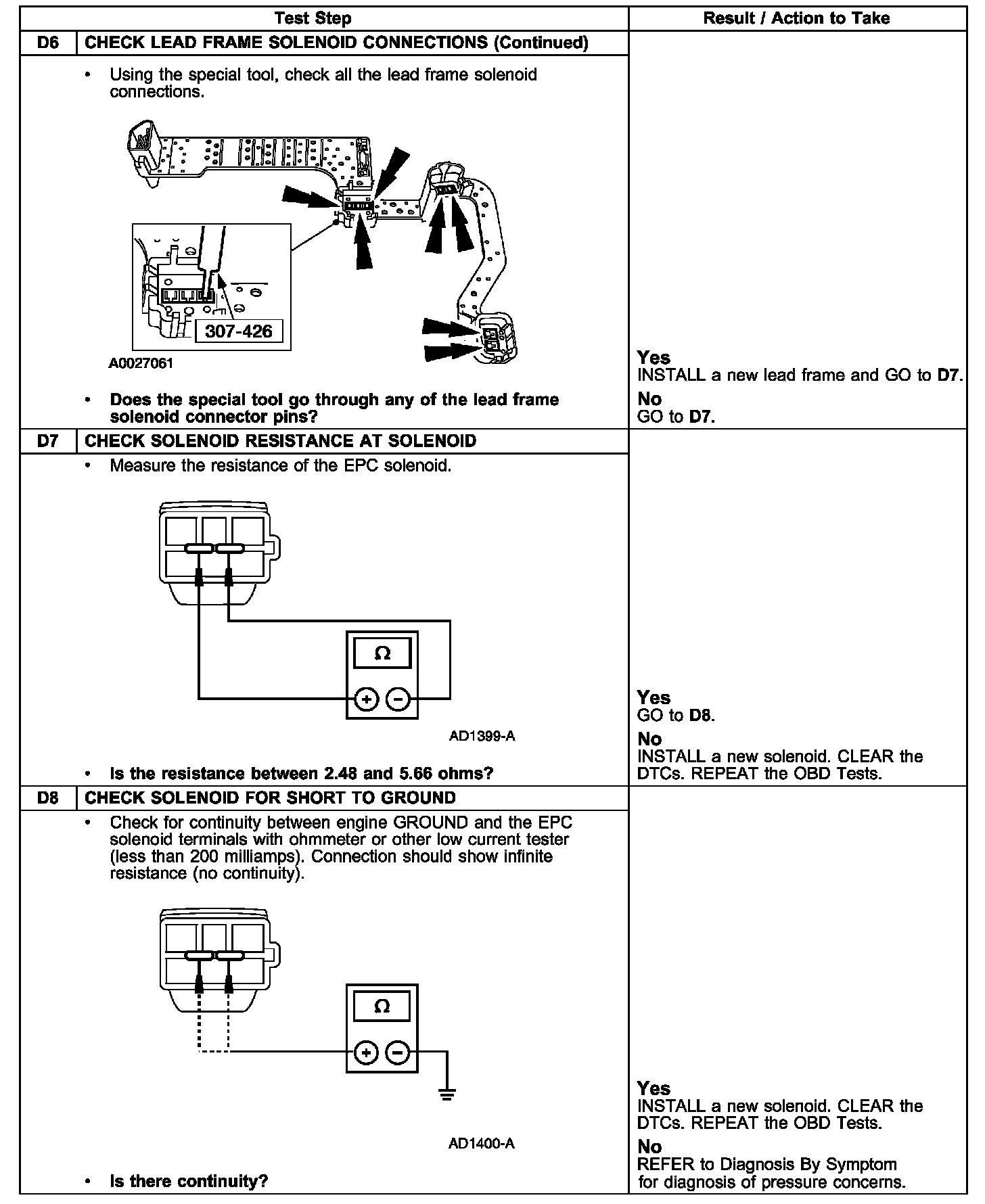

Test D6-D8:

NOTE: Refer to the Transmission Internal Harness illustration preceding these pinpoint tests.

NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).
