Battery Cable: Service and Repair

BATTERY CABLES

REMOVAL
1. Disconnect the battery.

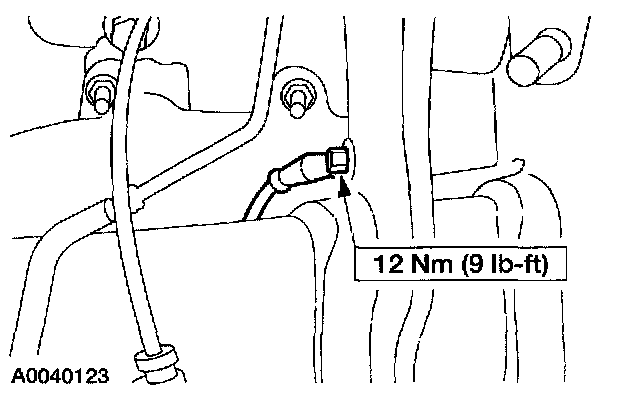

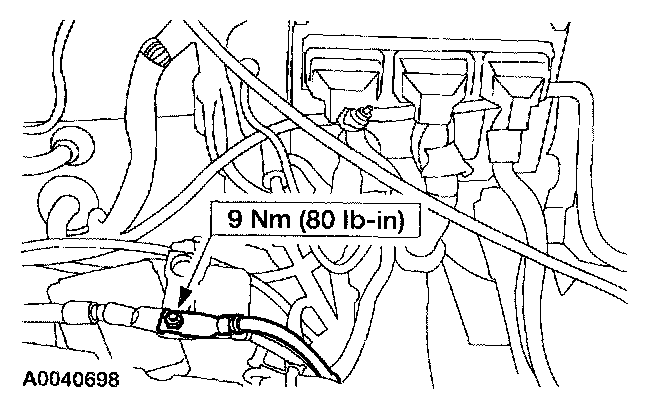

2. Remove the negative battery cable ground bolt at the cowl panel.

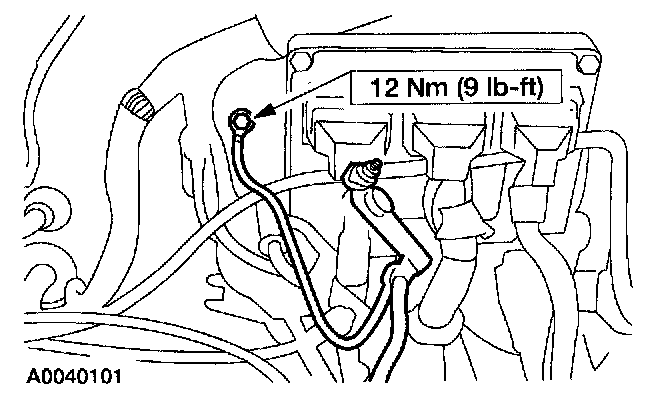

3. Remove the nut and disconnect the positive battery cable at the positive battery terminal junction.
4. Remove the engine cover.
- Remove the bolts.

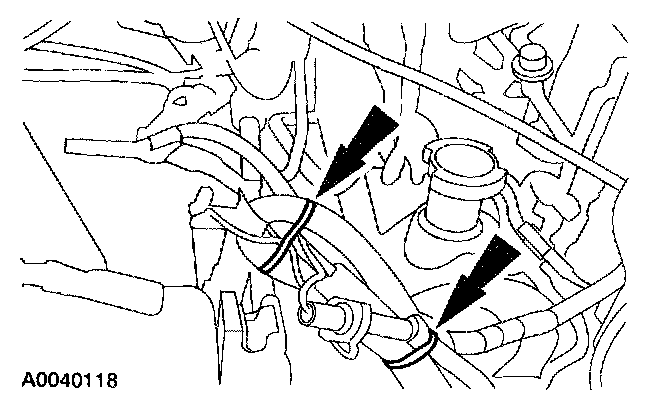

5. Remove the two tiestraps from the battery cable harness.

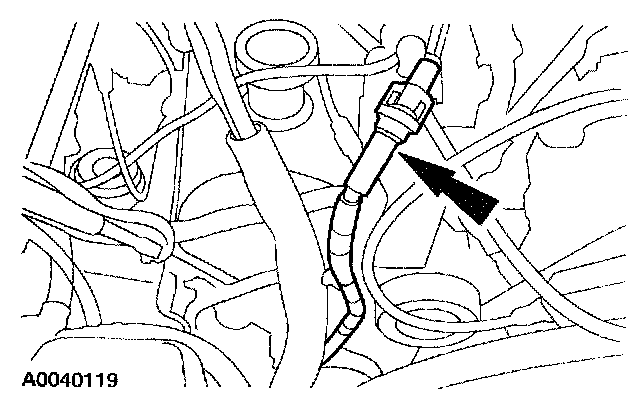

6. Disconnect the electrical connector from the battery cable harness.
7. Raise the vehicle.







8. Release the battery cable harness from the two support brackets.

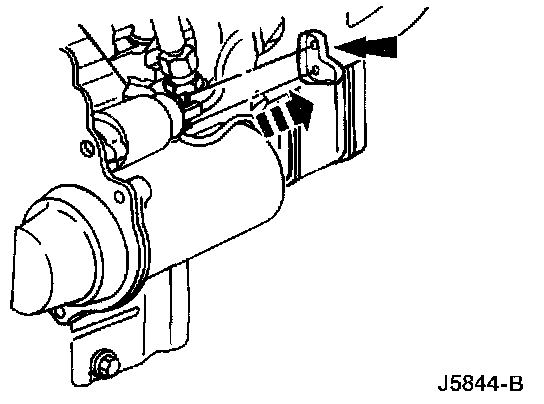

9. Remove the starter motor solenoid terminal cover.







10. Disconnect the starter motor connections.
1 Remove the nut and disconnect the starter motor negative cable.
2 Remove the nut and disconnect the starter solenoid cable.
3 Remove the nut and disconnect the starter motor positive cable.

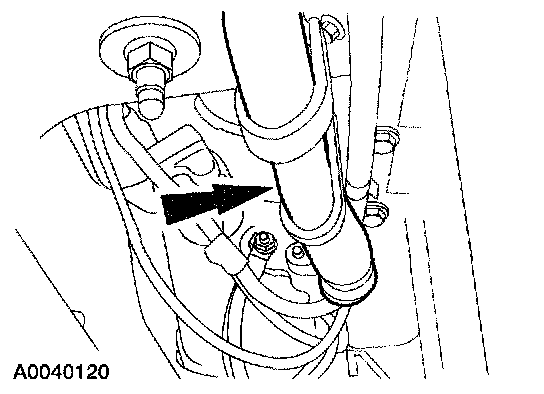

11. Remove the negative battery cable to frame bolt.
12. Remove the battery cable harness.

INSTALLATION
1. To install, reverse the removal procedure.
