Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

REMOVAL
1. Remove the evaporative emissions canister.







2. NOTE:
- Inspect and install a new O-ring as necessary.
- A twisting and pulling motion is required to remove the canister vent solenoid.

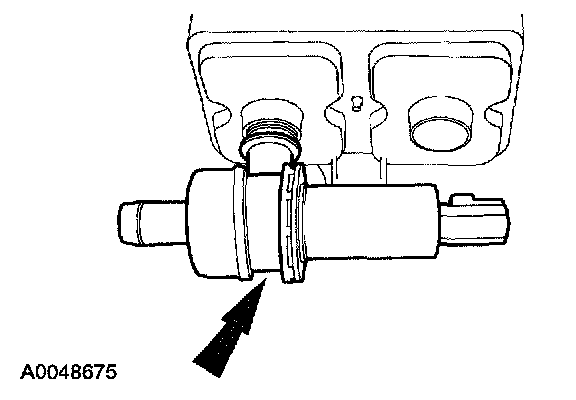

Remove the evaporative emissions canister vent solenoid.

INSTALLATION

1. NOTE: Lubricate the O-rings with MERPOL(R).

To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
- Carry out the evaporative emissions repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
