Home >> Lincoln Truck >> 2004 >> Navigator 4WD V8-5.4L DOHC VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test K

Test K

PINPOINT TEST K: INSUFFICIENT, ERRATIC OR NO HEAT


Test K1-K3:

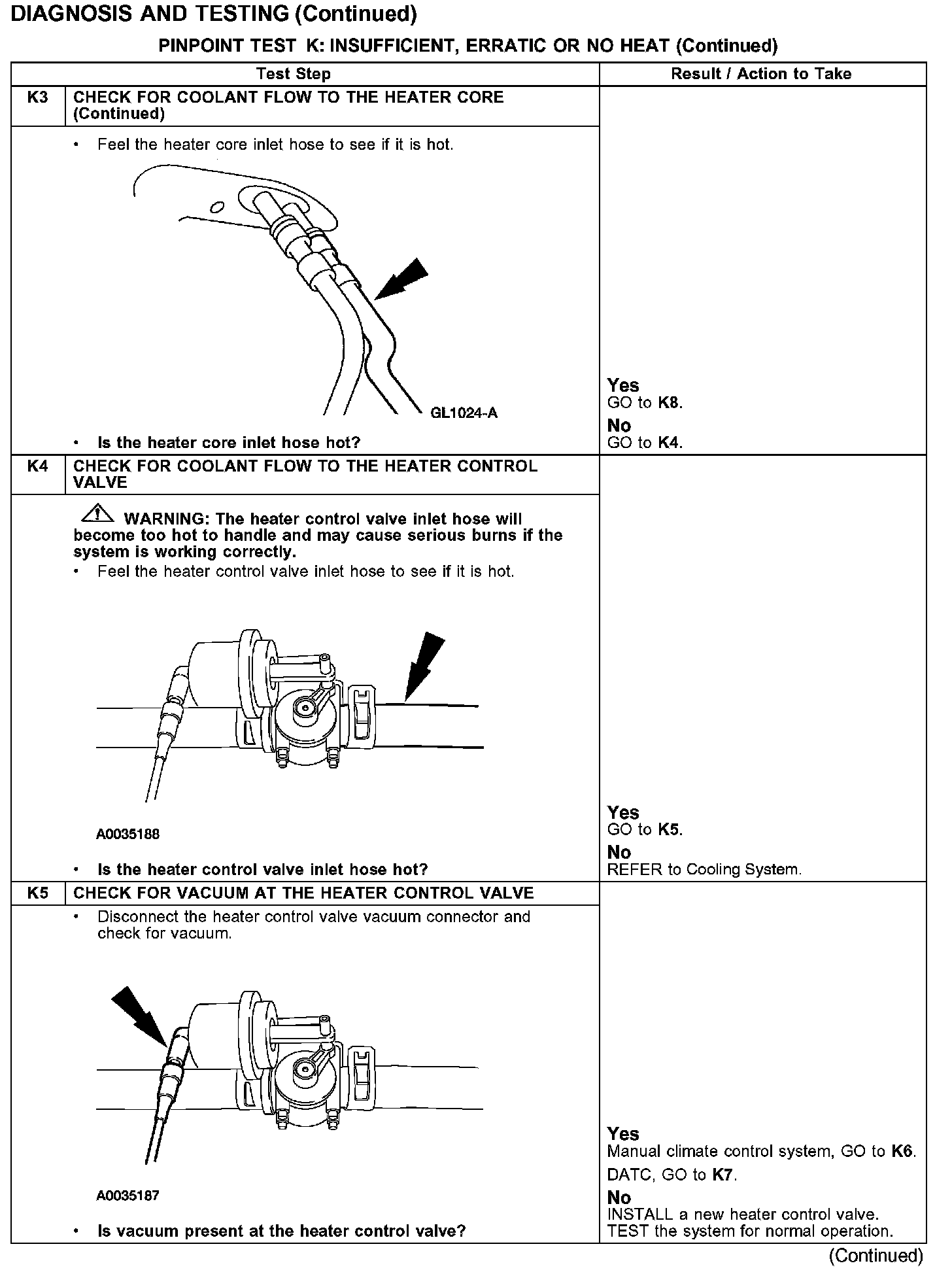

Test K3-K5:

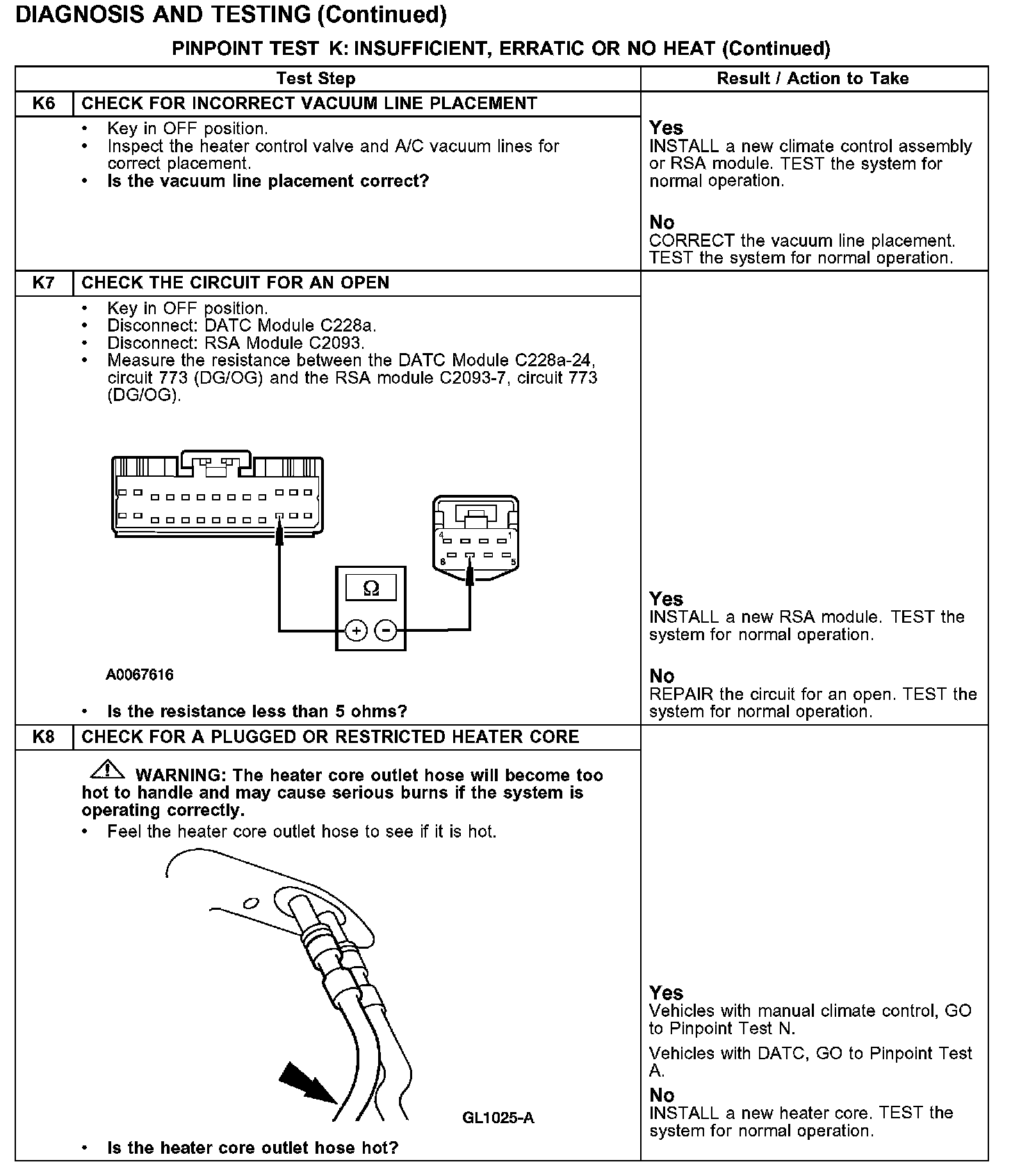

Test K6-K8:
