Home >> Lincoln Truck >> 2004 >> Navigator 4WD V8-5.4L DOHC VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 4R100 >> Seals, Rings and Gasket Locator

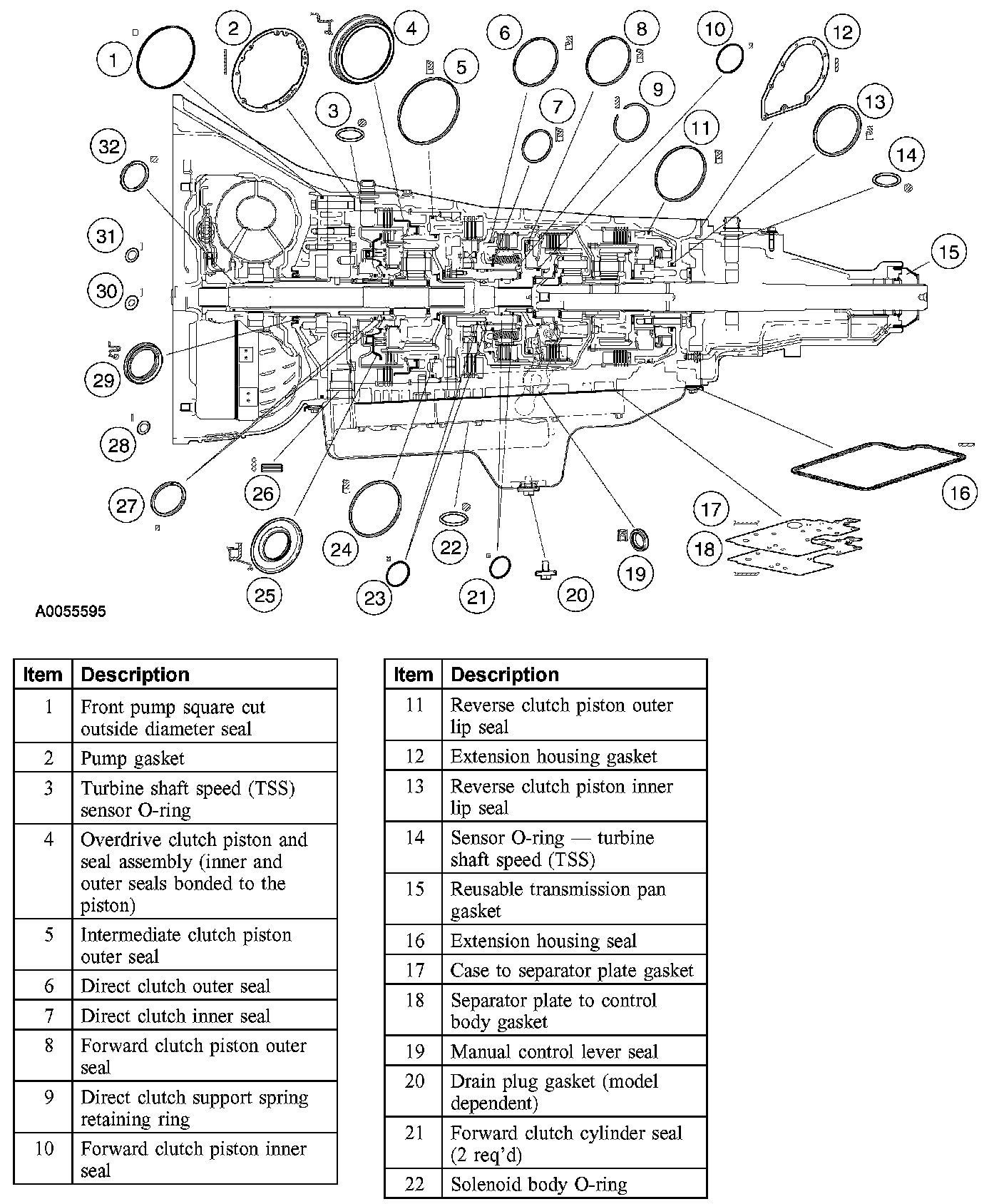

Seals, Rings and Gasket Locator

Part 1:

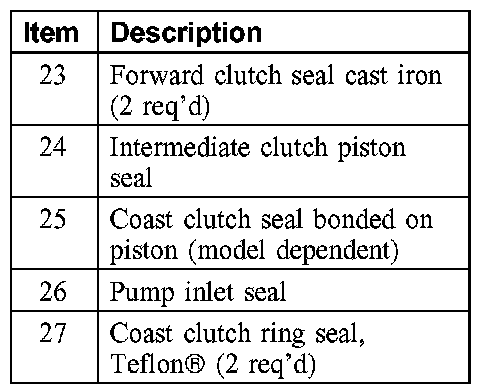

Part 2:

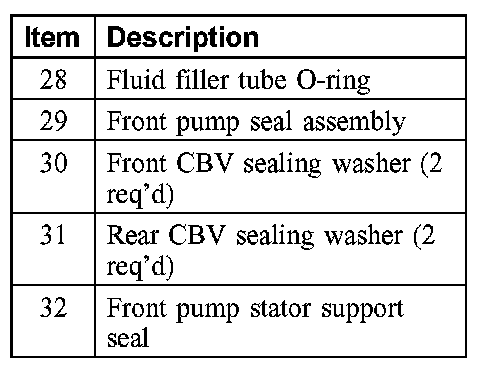

Part 3:
