Floor Console - Rear
FLOOR CONSOLE - REARREMOVAL

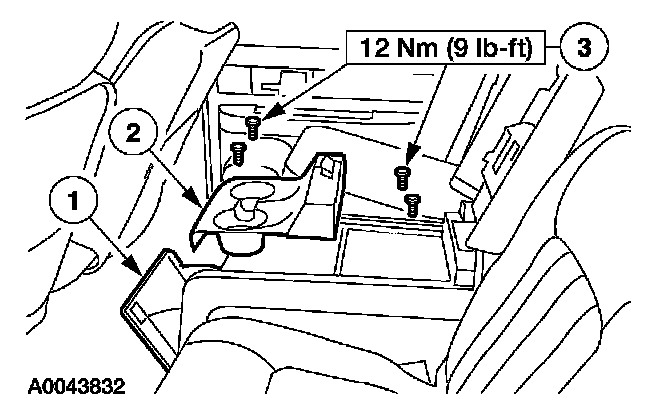

1. Remove the rear floor console.
1 Open the front bin.
2 Remove the cup holder.
3 Remove the bolts.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Remove the rear floor console.
1 Open the front bin.
2 Remove the cup holder.
3 Remove the bolts.
INSTALLATION
1. To install, reverse the removal procedure.
