Windshield Wiper Motor

WINDSHIELD WIPER MOTOR

REMOVAL
1. Remove the mounting arm and pivot shaft.

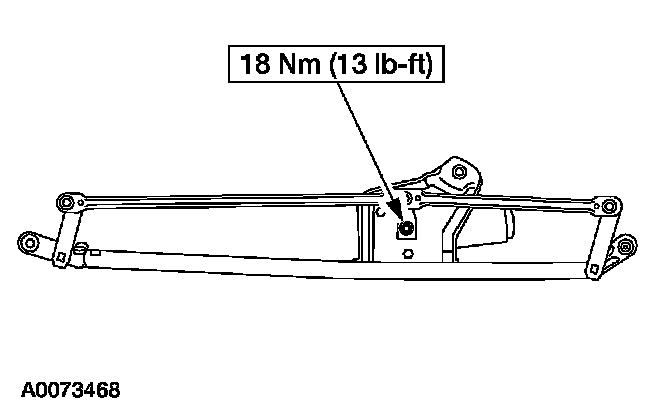

2. NOTE: Mark the position of the windshield wiper motor crank before it is disconnected.

Disconnect the windshield wiper motor crank.
- Remove the bolt.

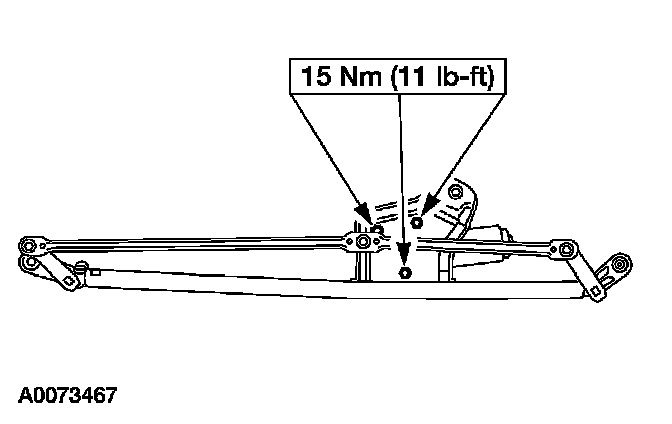

3. Remove the bolts and the windshield wiper motor.

INSTALLATION

1. NOTE: The windshield wiper motor crank must be set to the same location for the windshield wiper mounting arm and pivot shaft to be installed properly. Refer to component test.

To install reverse the removal procedure.
