Windshield Washer Pump: Service and Repair

WINDSHIELD WASHER PUMP AND RESERVOIR

REMOVAL

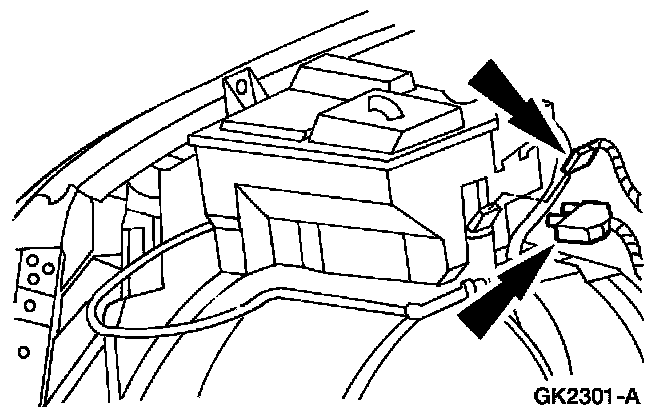

1. Disconnect the electrical connectors.







2. Remove the windshield washer reservoir screws.

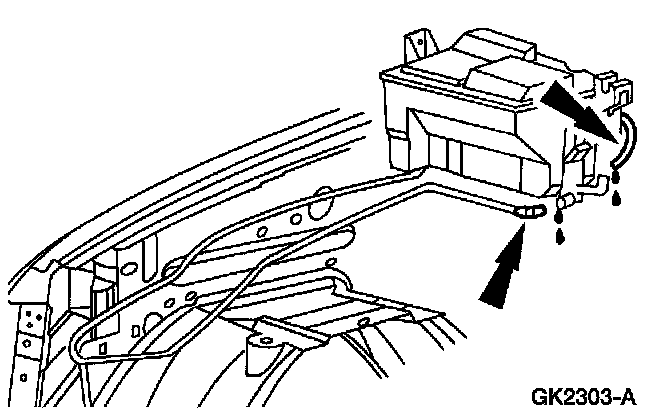

3. NOTE: Windshield washer fluid should be collected in a container after the windshield washer hoses are disconnected.

Disconnect the windshield washer hoses.

4. Remove the windshield washer reservoir.

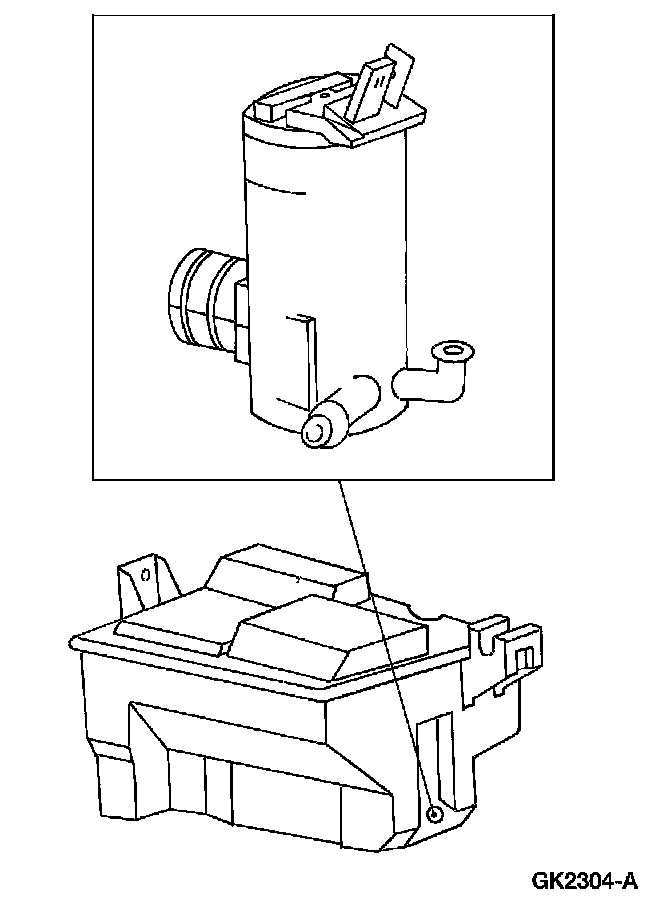

5. Remove the windshield washer pump if necessary.

INSTALLATION

1. CAUTION: Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

To install, reverse the removal procedure.
- Fill the windshield washer reservoir with windshield washer concentrate.
