Front Door Window Glass: Service and Repair

FRONT DOOR WINDOW GLASS

REMOVAL

All vehicles
1. Remove the front door trim panel.

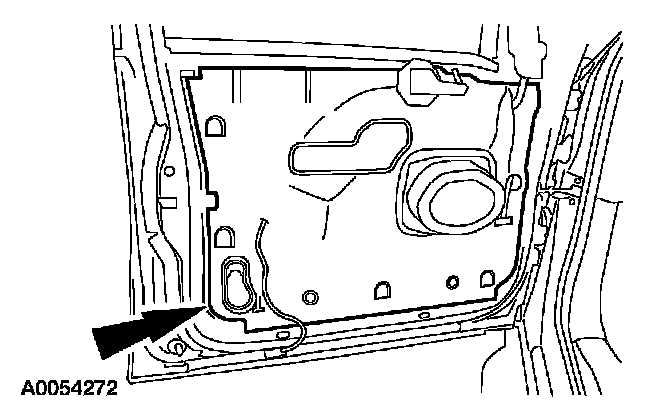

2. Remove the front door weathershield.

Expedition







3. NOTE: Driver side shown, passenger side similar.

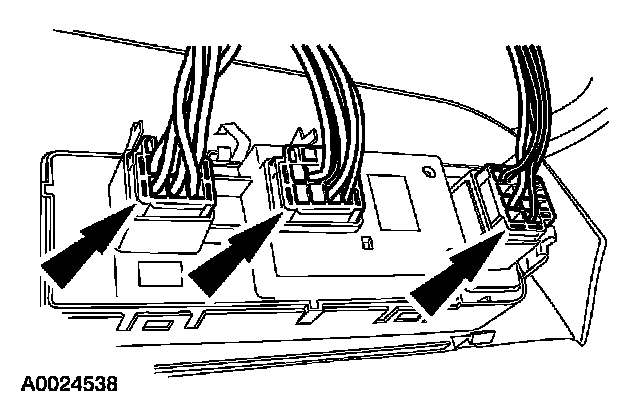

Connect the window control switch.

All vehicles
4. Lower the window glass to access the two window glass to regulator bolts.

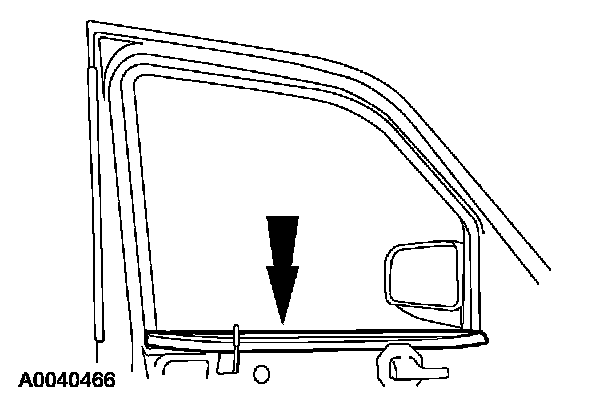

5. Remove the inside glass weatherstrip.

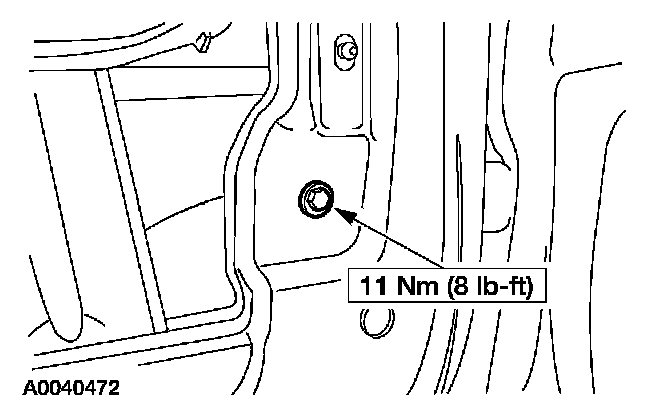

6. Remove the front door glass channel bolt and position aside the channel.

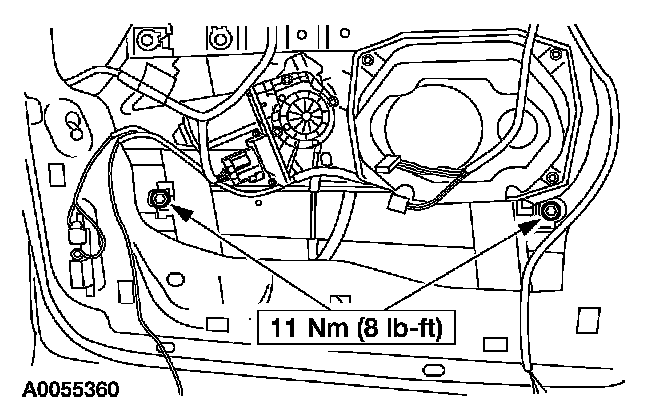

7. Remove the window glass to regulator bolts and front door window glass.

INSTALLATION
1. To install, reverse the removal procedure.
