Rear Door Window Motor: Service and Repair

REAR DOOR WINDOW REGULATOR MOTOR

REMOVAL
1. Remove the rear door trim panel.







2. Position the rear door weathershield aside.







3. NOTE: Use a flat-blade screwdriver between the window regulator motor and the window regulator assembly to hold the window regulator assembly drum in place.

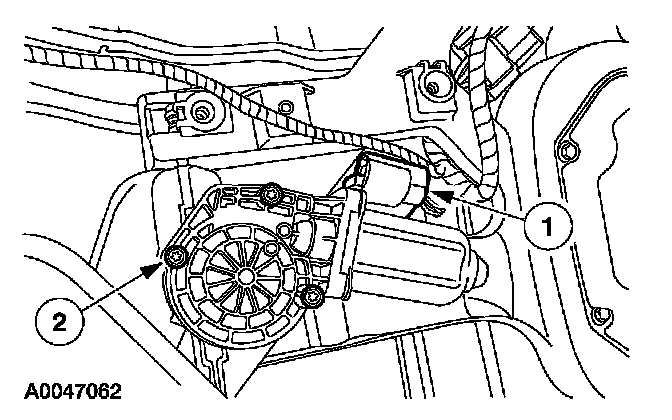

Remove the rear door window regulator motor.
1 Disconnect the electrical connector.
2 Remove the bolts.

INSTALLATION
1. To install, reverse the removal procedure.
- Cycle the door glass to make sure of gear engagement.
