Quarter Window Motor: Service and Repair

REAR QUARTER WINDOW REGULATOR MOTOR

REMOVAL
1. Remove the D-pillar trim panel.

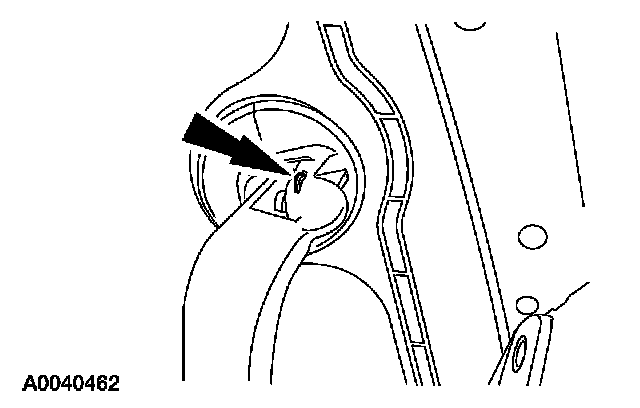

2. Disconnect the rear quarter window regulator motor.
- Remove the retaining clip.

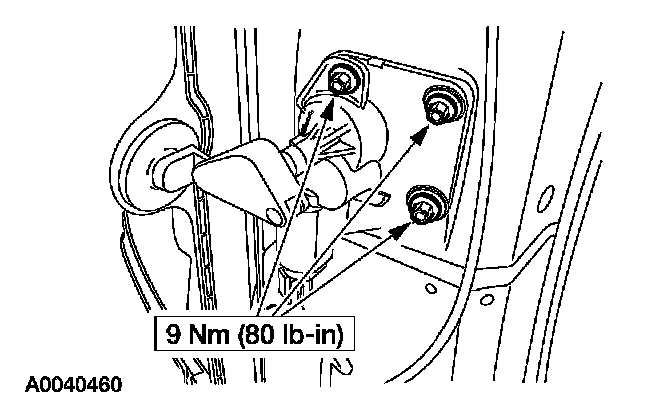

3. Remove the bolts and rear quarter window regulator motor.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
