Transmission Control Switch - Floor Shift

Transmission Control (TC) Switch- Floor Shift
Removal and Installation

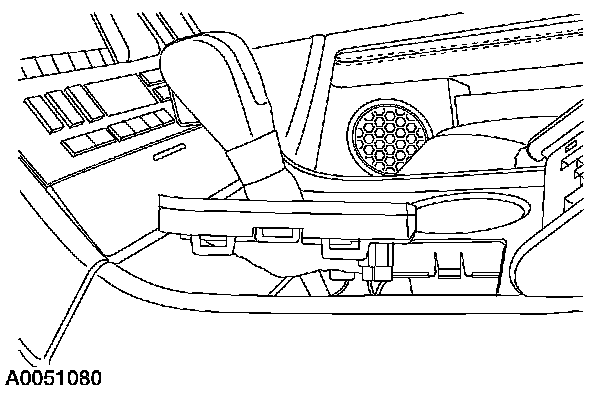

1. Lift the floor shift PRNDL bezel.

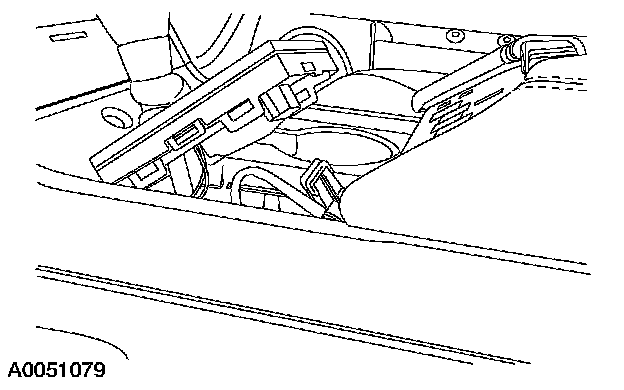

2. Disconnect the PRNDL bezel wire harness connector.

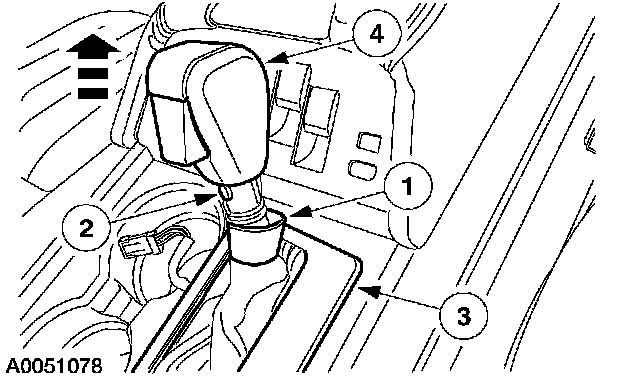

3. Remove the shift lever handle and cover.
1 Slide the handle bezel down.
2 Remove the screw.
3 Disconnect the TCS wire harness.
4 Lift assembly from the shifter lever.

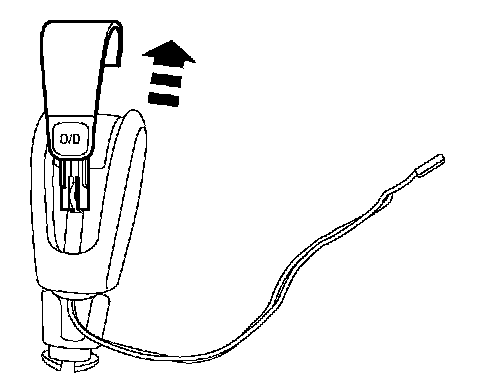

4. Remove TCS switch from shift handle.
^ Lift switch from handle body.
^ Route harness through handle passage.
5. To install, reverse the removal procedure.
