Pinpoint Tests - External Controls - Column Shift
>>
Test C: The Transmission Control Switch (TCS) Is Inoperative
Test C: The Transmission Control Switch (TCS) Is Inoperative

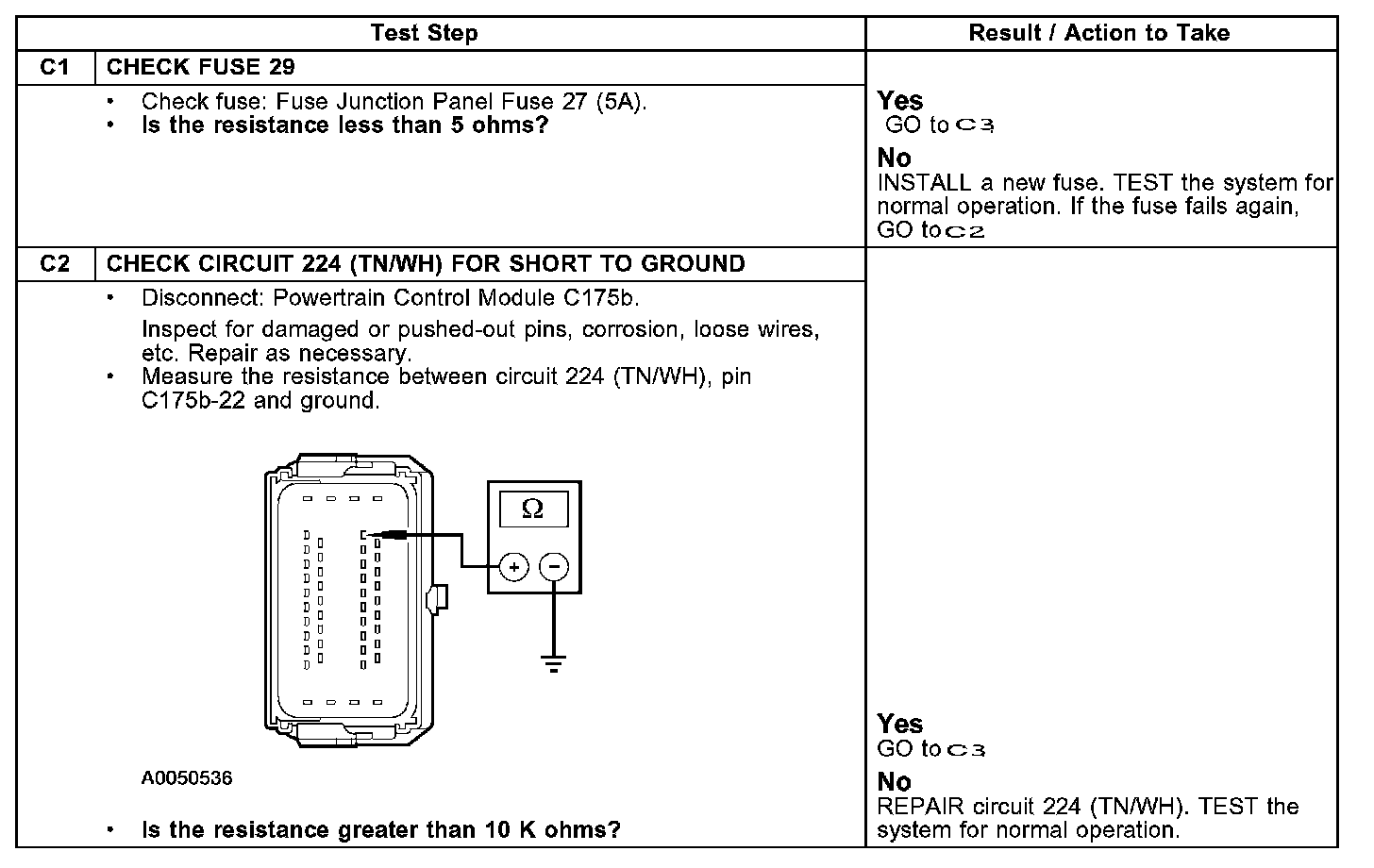

Test C1-C2:

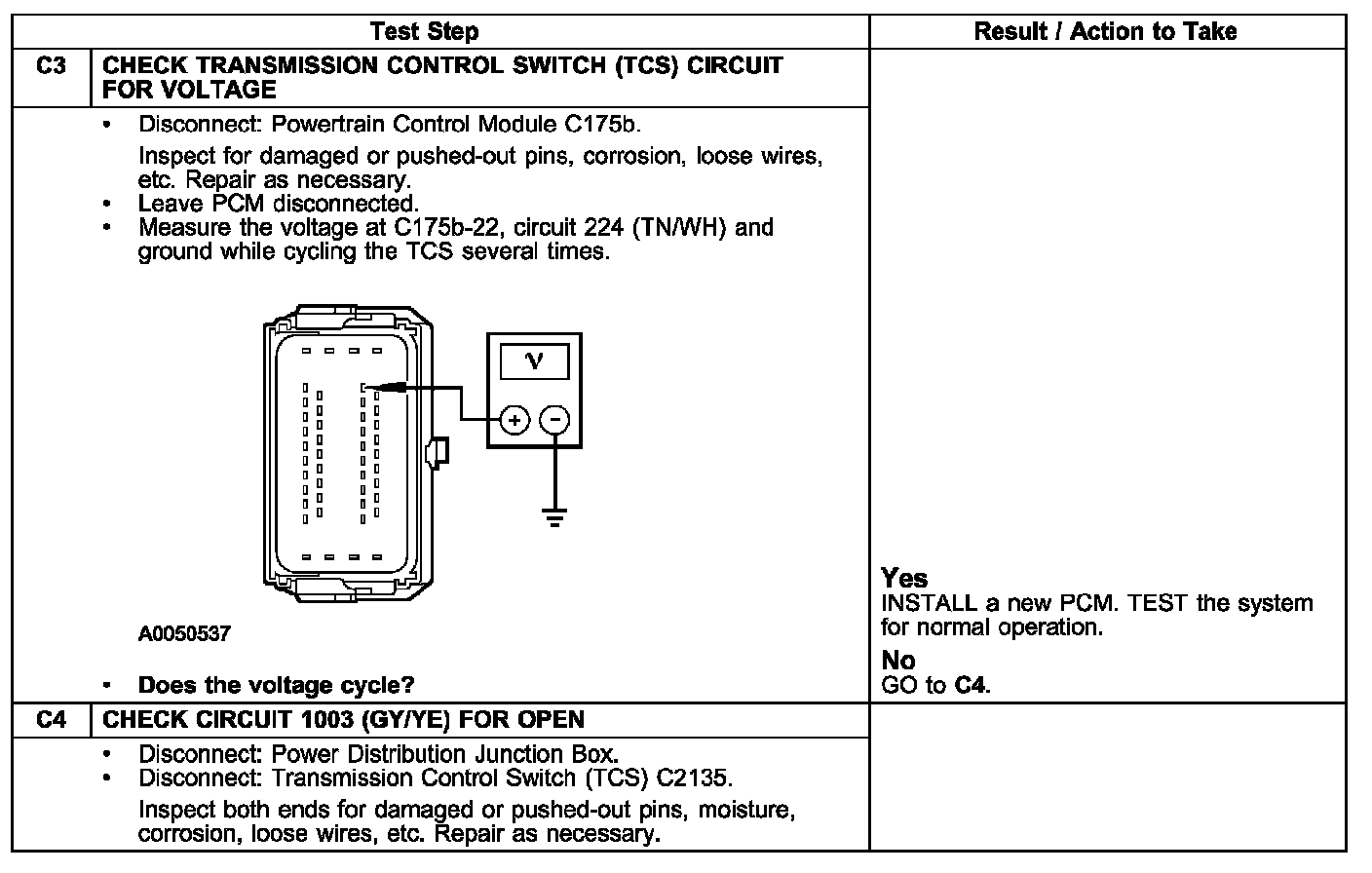

Test C3-C4:

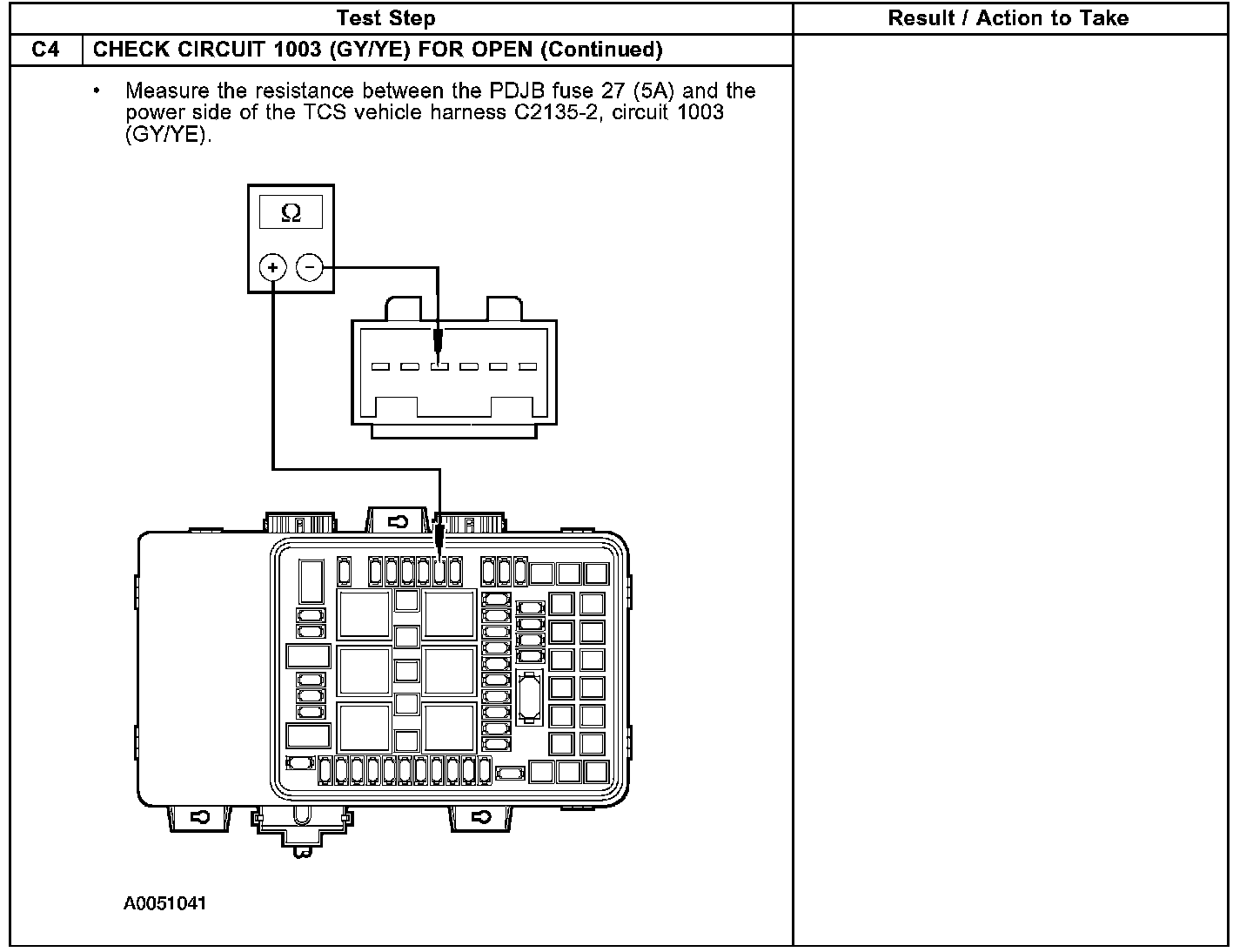

Test C4:

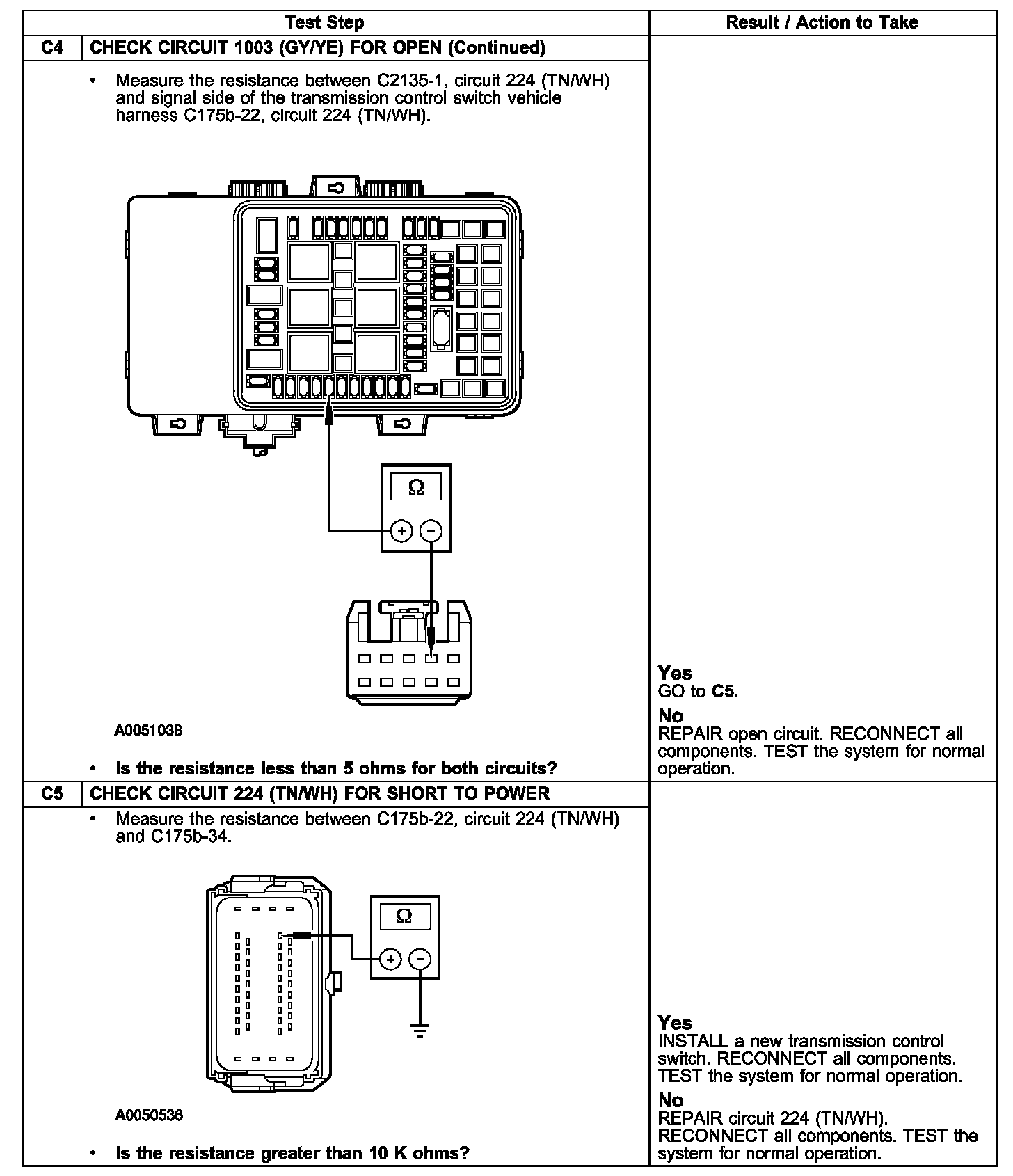

Test C4-C5:
PINPOINT TEST C: THE TRANSMISSION CONTROL SWITCH (TCS) IS INOPERATIVE
