Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lincoln Truck
>>
2004
>>
Navigator 2WD V8-5.4L DOHC VIN R
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - External Controls - Column Shift
>>
Test A: The Shift Interlock System Doesn't Release/Lock Correctly
Test A: The Shift Interlock System Doesn't Release/Lock Correctly

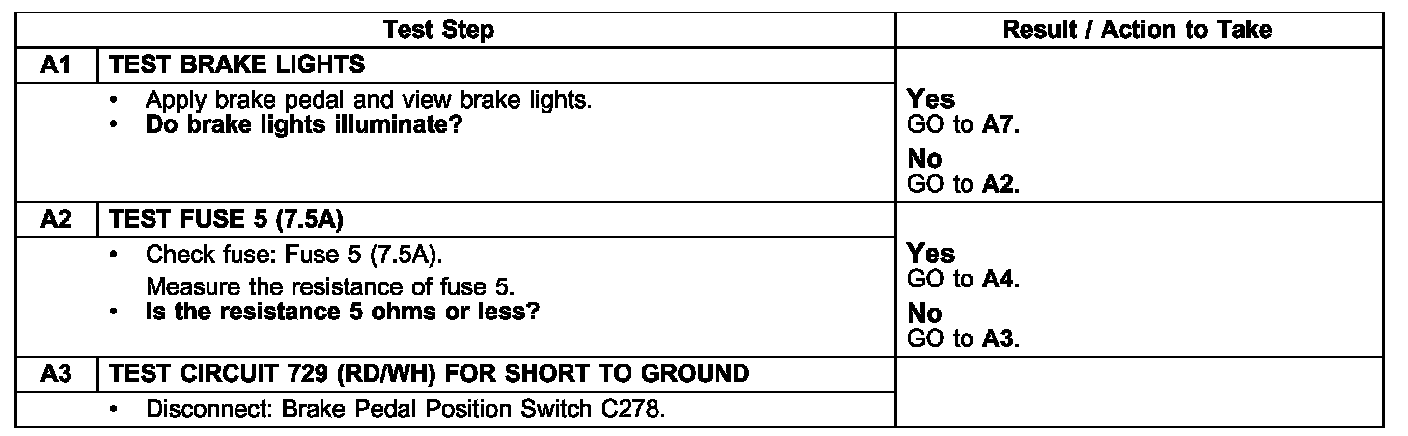

Test A1-A3:

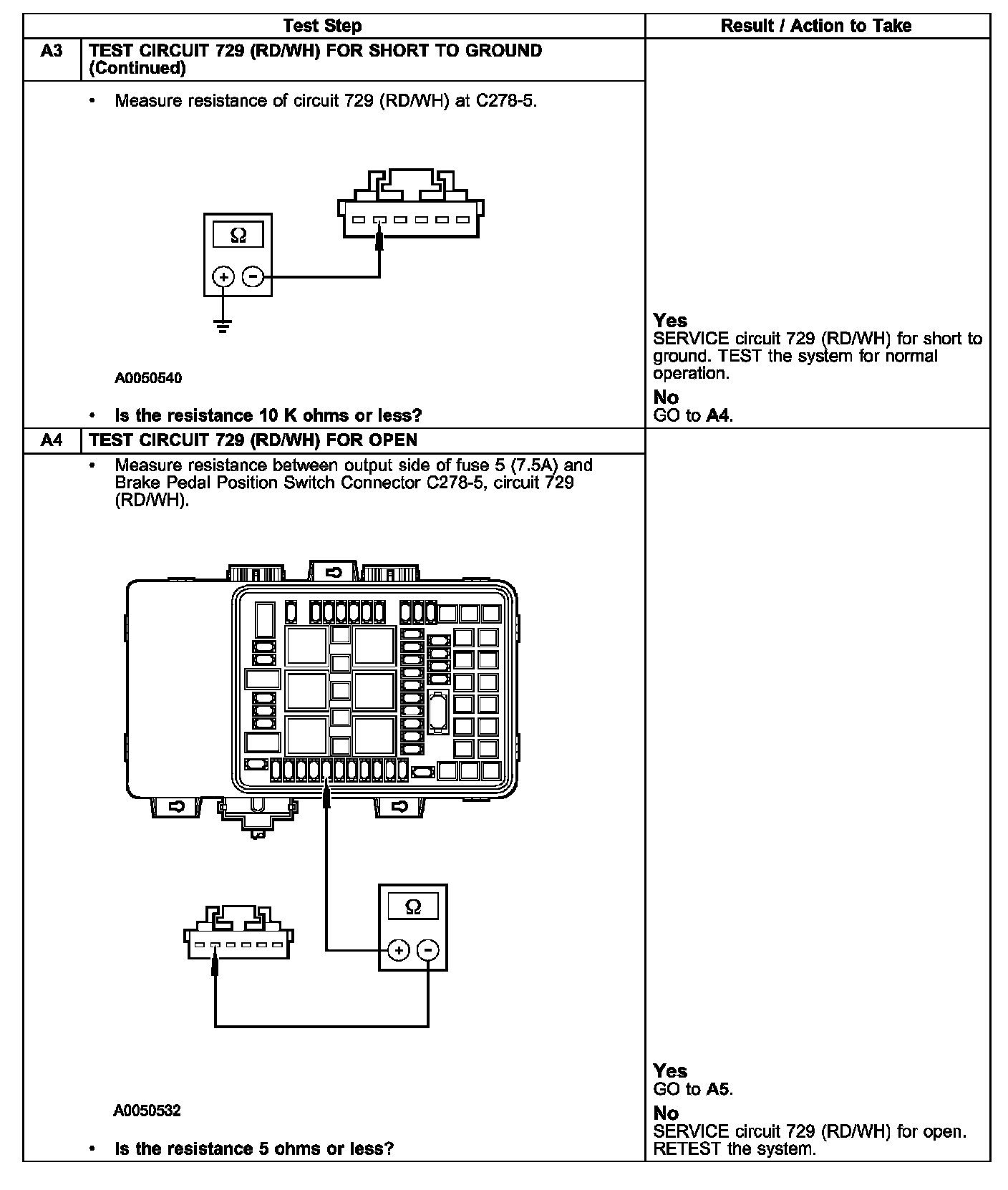

Test A3-A4:

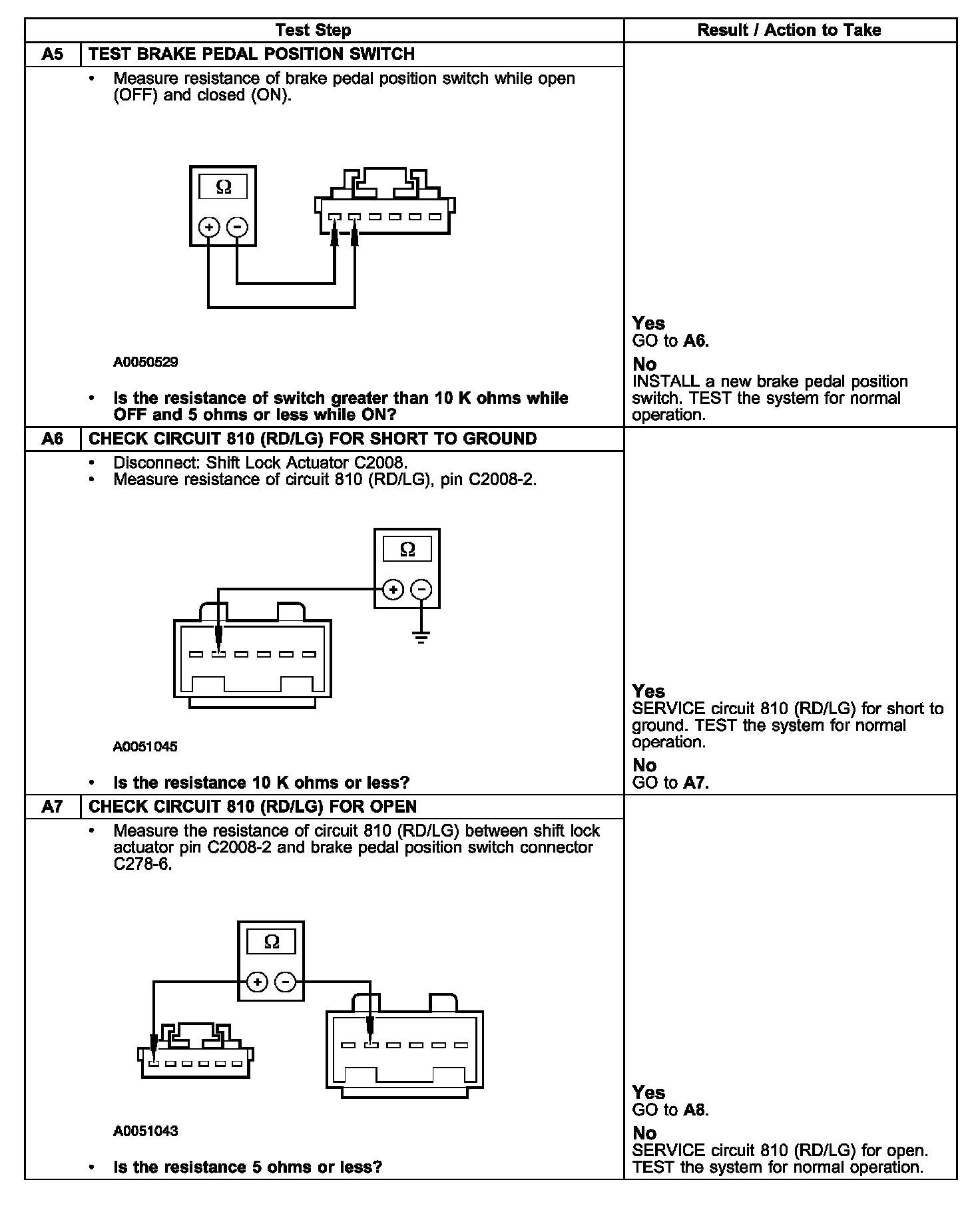

Test A5-A7:

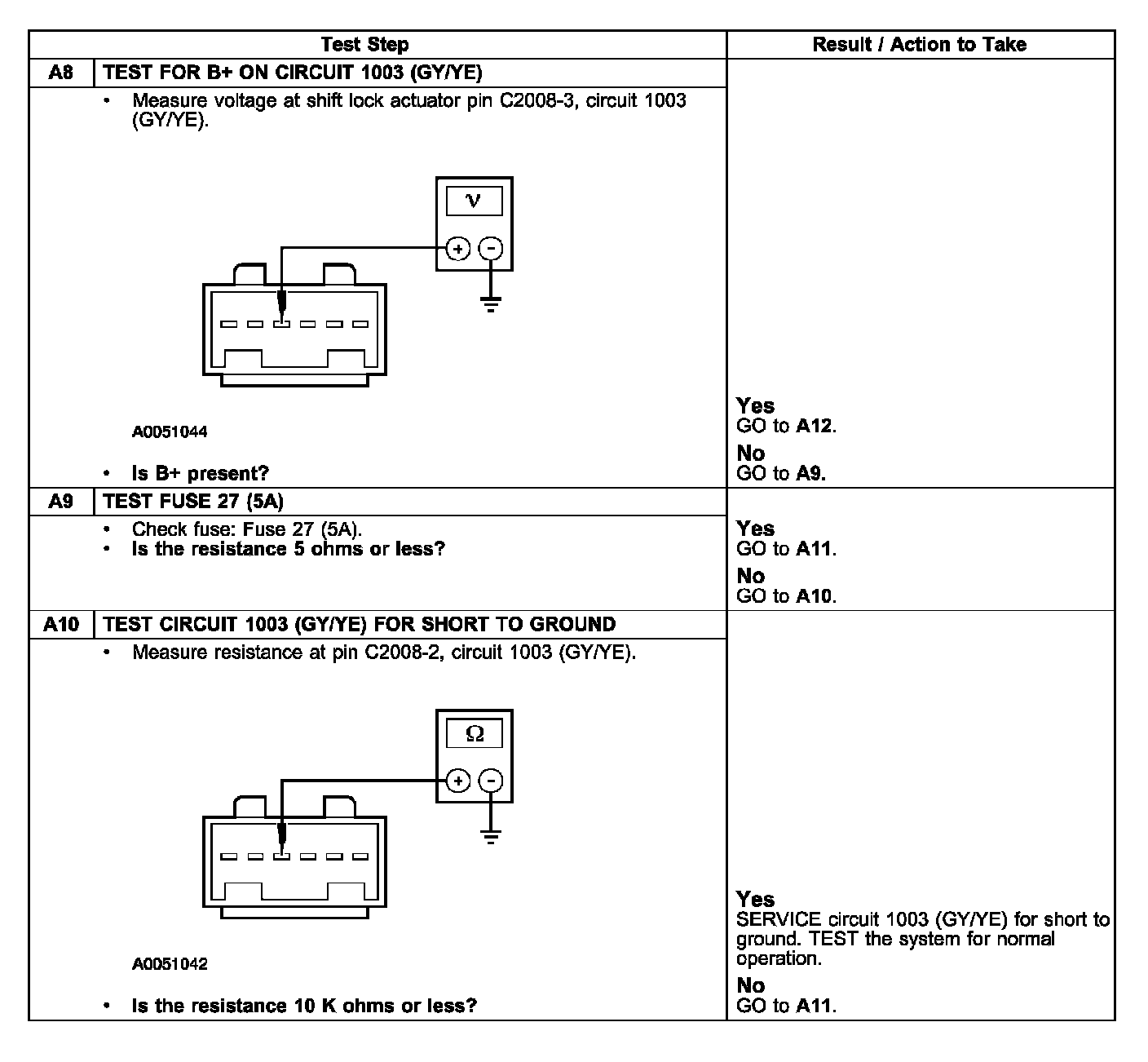

Test A8-A10:

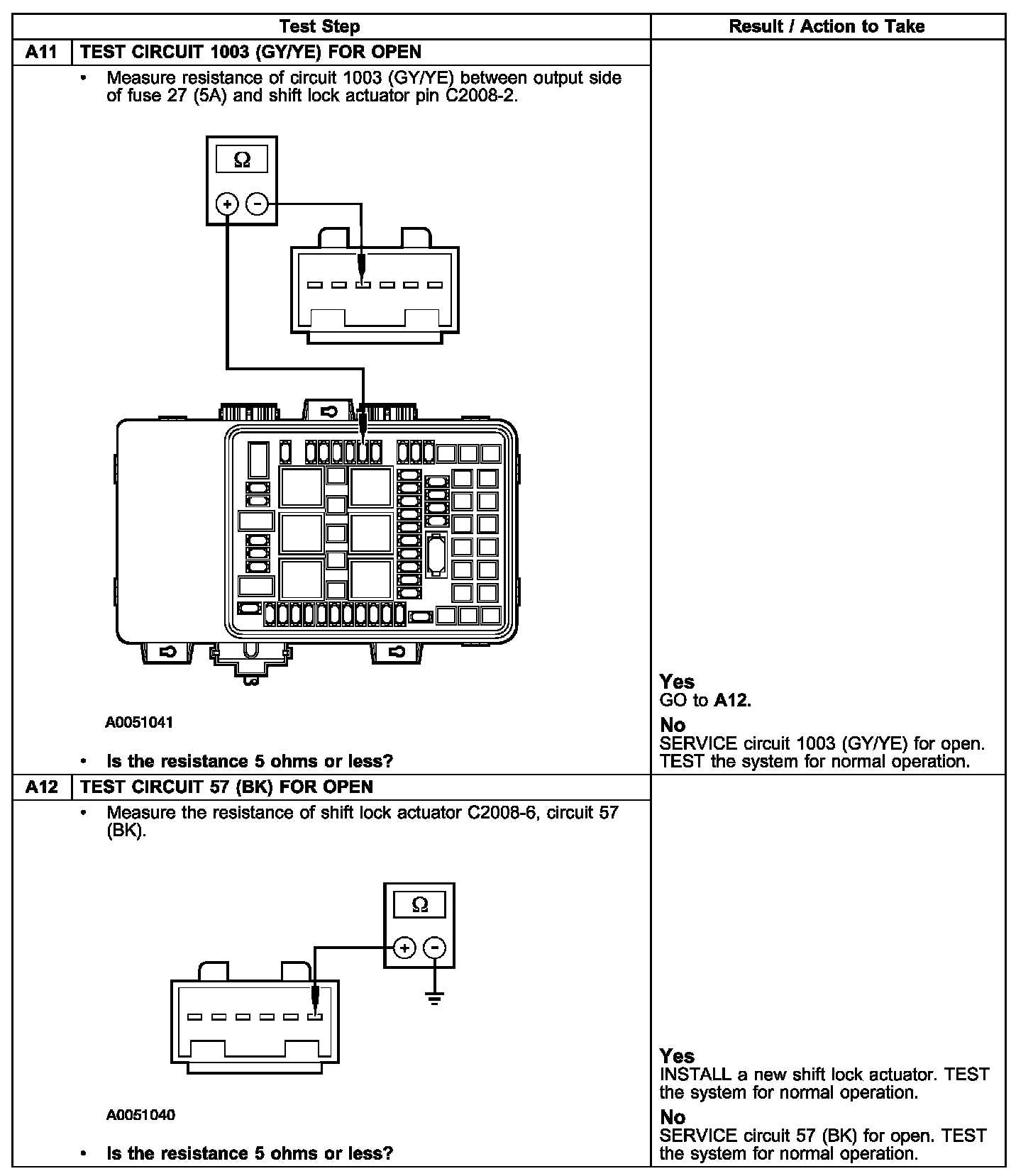

Test A11-A12:
PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY
