Initial Inspection - External Controls - Column Shift

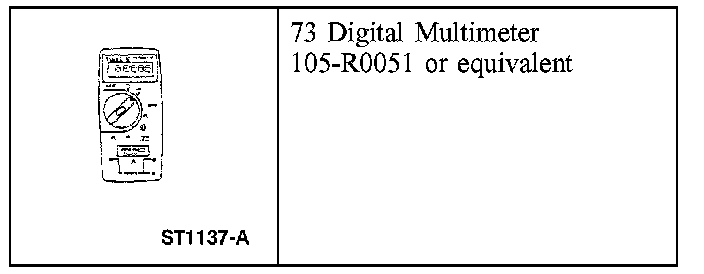

Special Tool(s)

Inspection and Verification
1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:

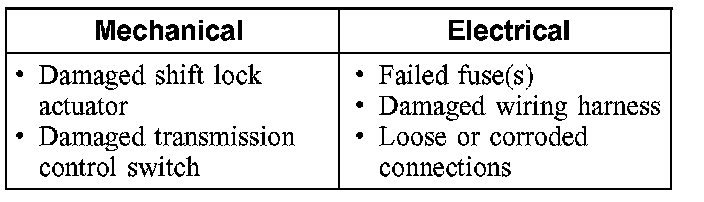

Visual Inspection Chart

3. If the fault is not visually evident, determine the symptom. ; Refer to Diagnosis By Symptom - External Controls - Column Shift
