Floor Shift
Selector Lever Cable and Bracket- Floor ShiftRemoval

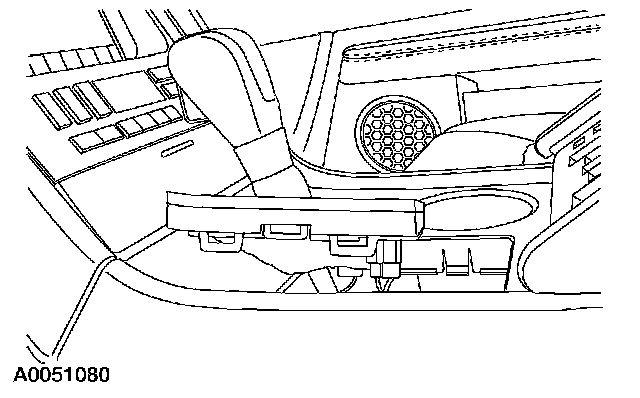

1. Lift the floor shift PRNDL bezel.
2. Disconnect the PRNDL bezel wire harness connector.

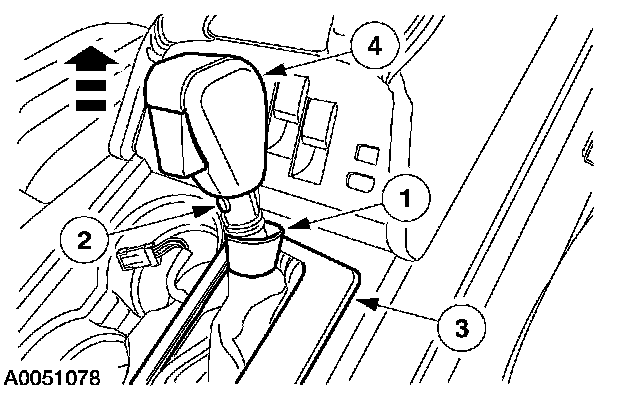

3. Remove the handle and PRNDL bezel.
1 Slide the handle bezel down.
2 Remove the screw.
3 Disconnect the TCS wire harness.
4 Remove the handle and bezel.

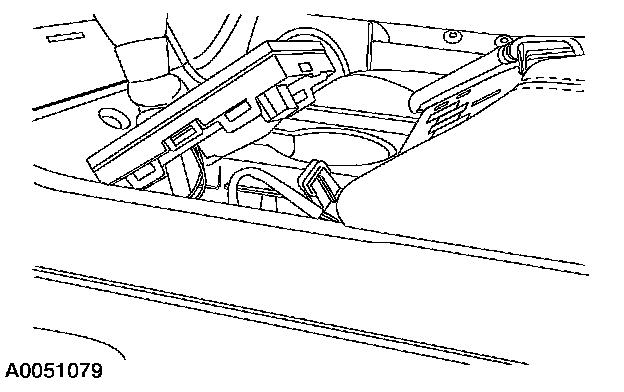

4. Remove the window regulator control panel.

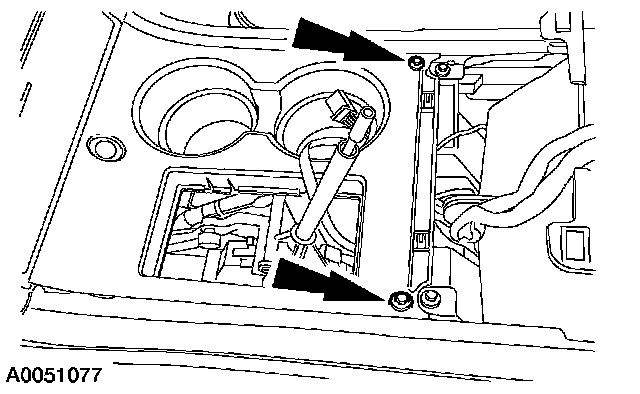

5. Remove the screws and the console finish panel.
6. Remove the left side console access panel.

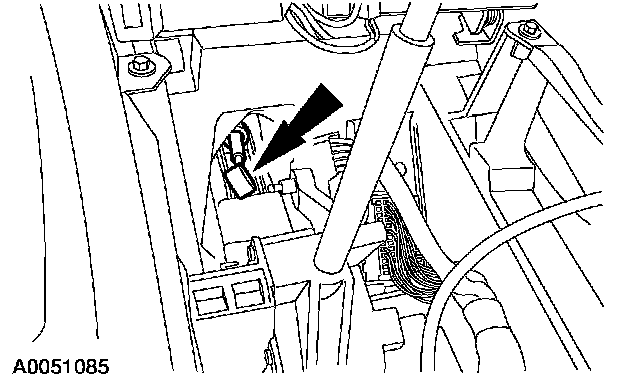

7. Disconnect the transmission shift cable from the transmission selector lever arm.

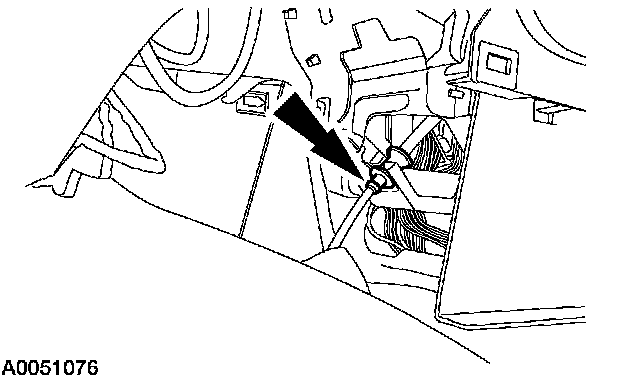

8. Remove the transmission shift cable retaining clip from the floor shift mechanism through the console access panel.

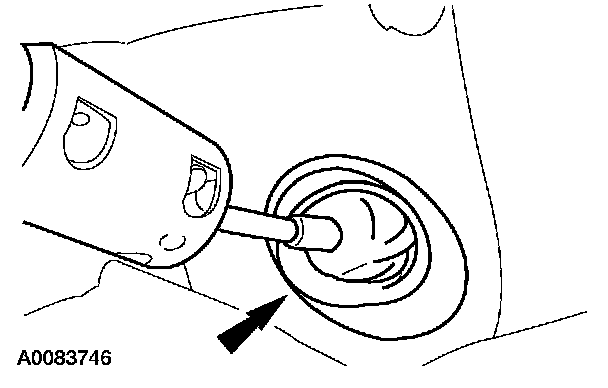

9. Push the rubber grommet and transmission shift cable through the floor panel.
10. With the vehicle in NEUTRAL position it on a hoist.

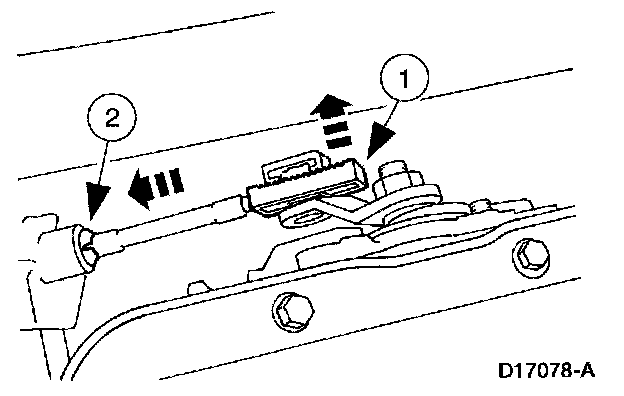

11. Remove the transmission shift cable from the automatic transmission.
1 Disconnect the transmission shift cable from the manual control lever.
2 Depress the lock tabs to release the transmission shift cable from the bracket.

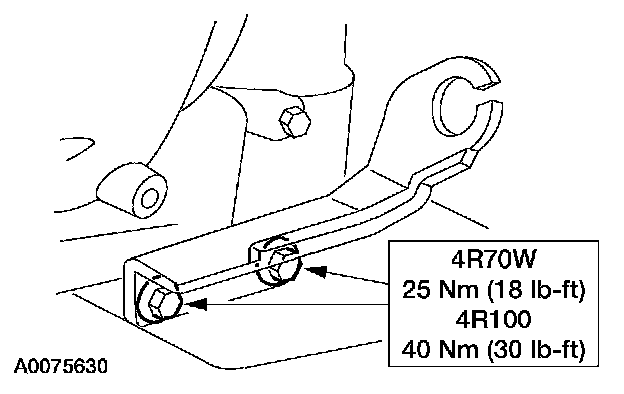

12. Remove the shift cable bracket from the transmission.
1 Remove the bolts.
2 Remove the shift cable bracket.
Installation
1. Follow the removal procedure in reverse order.
^ Adjust the shift cable.
