Floor Shift

Brake Shift Interlock Actuator- Floor Shift

Removal and Installation

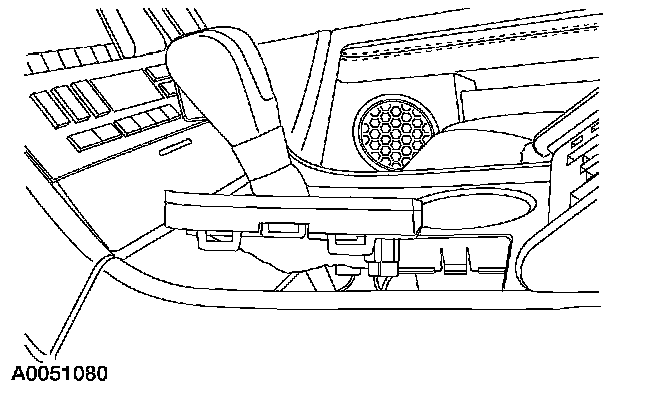

1. Lift the floor shift PRNDL bezel.





2. Disconnect the PRNDL bezel wire harness connector.





3. Remove the shift lever handle and cover.
1 Slide the handle bezel down.
2 Remove the screw.
3 Disconnect the TCS wire harness.
4 Lift assembly from the shifter lever.

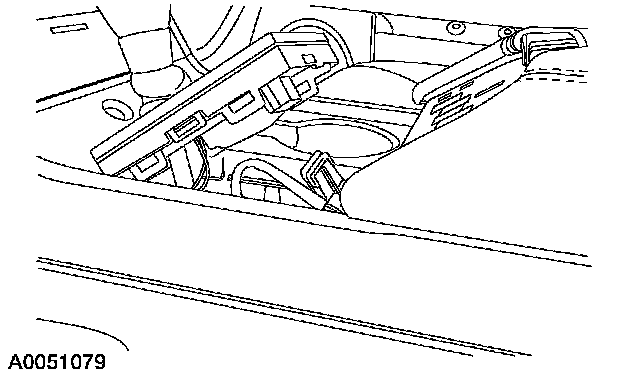

4. Position the window regulator control panel aside.

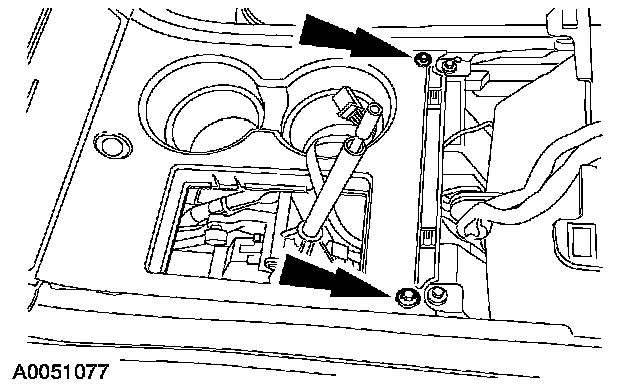

5. Remove the screws and the console finish panel.





6. Remove the left side console access panel.

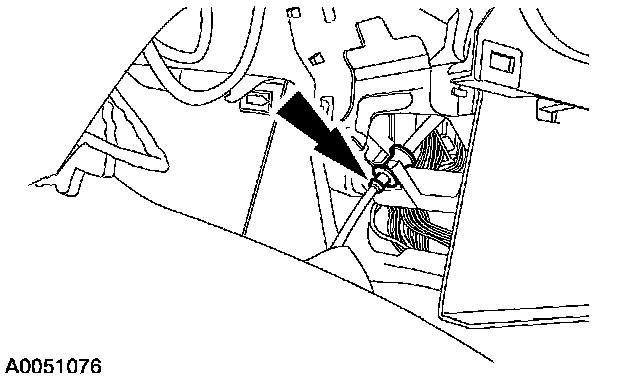

7. Disconnect the transmission shift cable from the transmission selector arm.





8. Remove the transmission shift cable retaining clip from the floor shift mechanism through the console access.

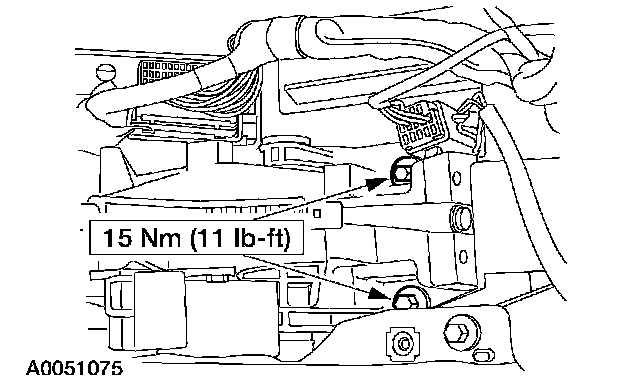

9. Remove the four bolts retaining the floor shift mechanism to the floor.

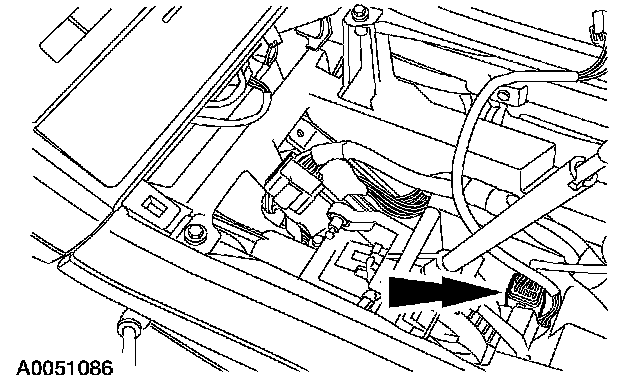

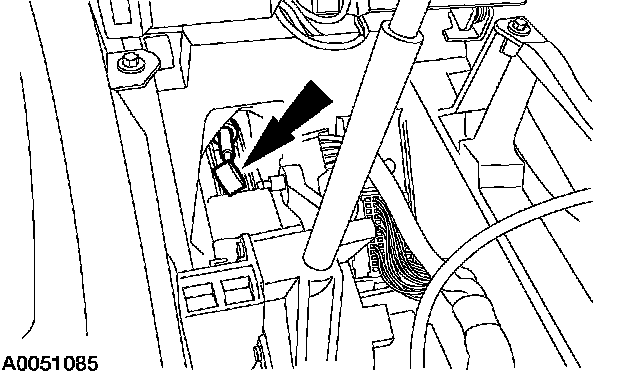

10. Disconnect the floor shift mechanism wire harness connector.
11. Remove the floor shift mechanism from the console.





12. Remove the brake shift interlock actuator and harness.
1 Remove the wire harness retainers.
2 Remove the two screws retaining the brake shift interlock assembly.
13. To install, reverse the removal procedure.
