Shift Indicator - A/T: Service and Repair

SELECTOR LEVER INDICATOR BULB

REMOVAL

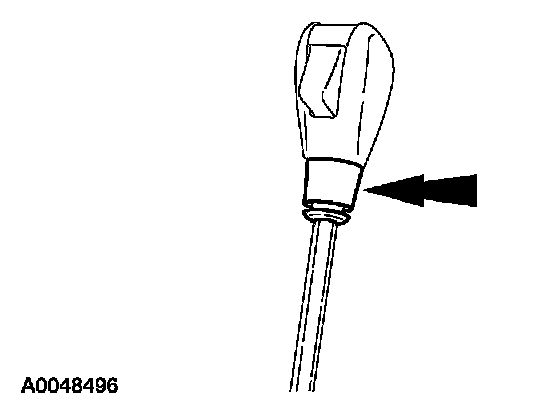

1. Push down the selector lever boot.

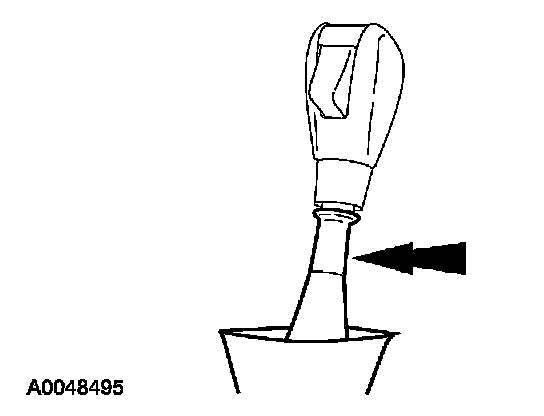

2. Push down the selector lever collar.

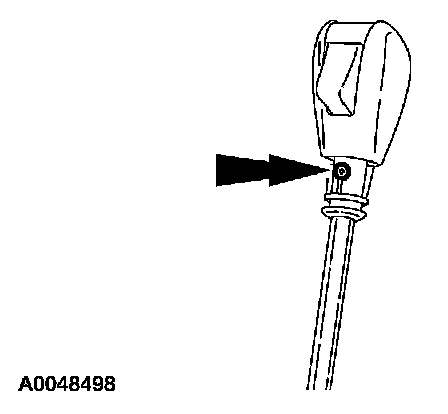

3. Remove the selector lever knob screw.
- Remove the selector lever knob.

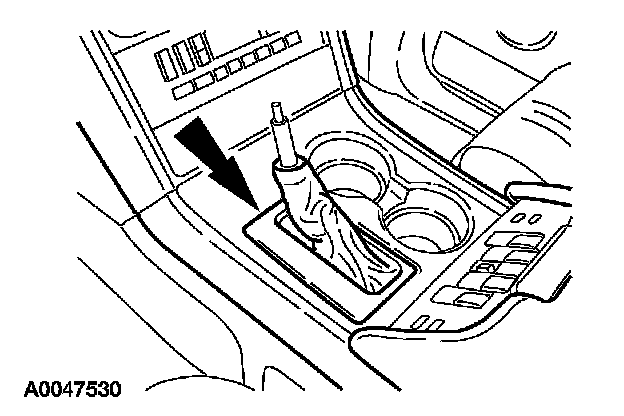

4. Detach the selector lever indicator bezel.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
